Engine Controls

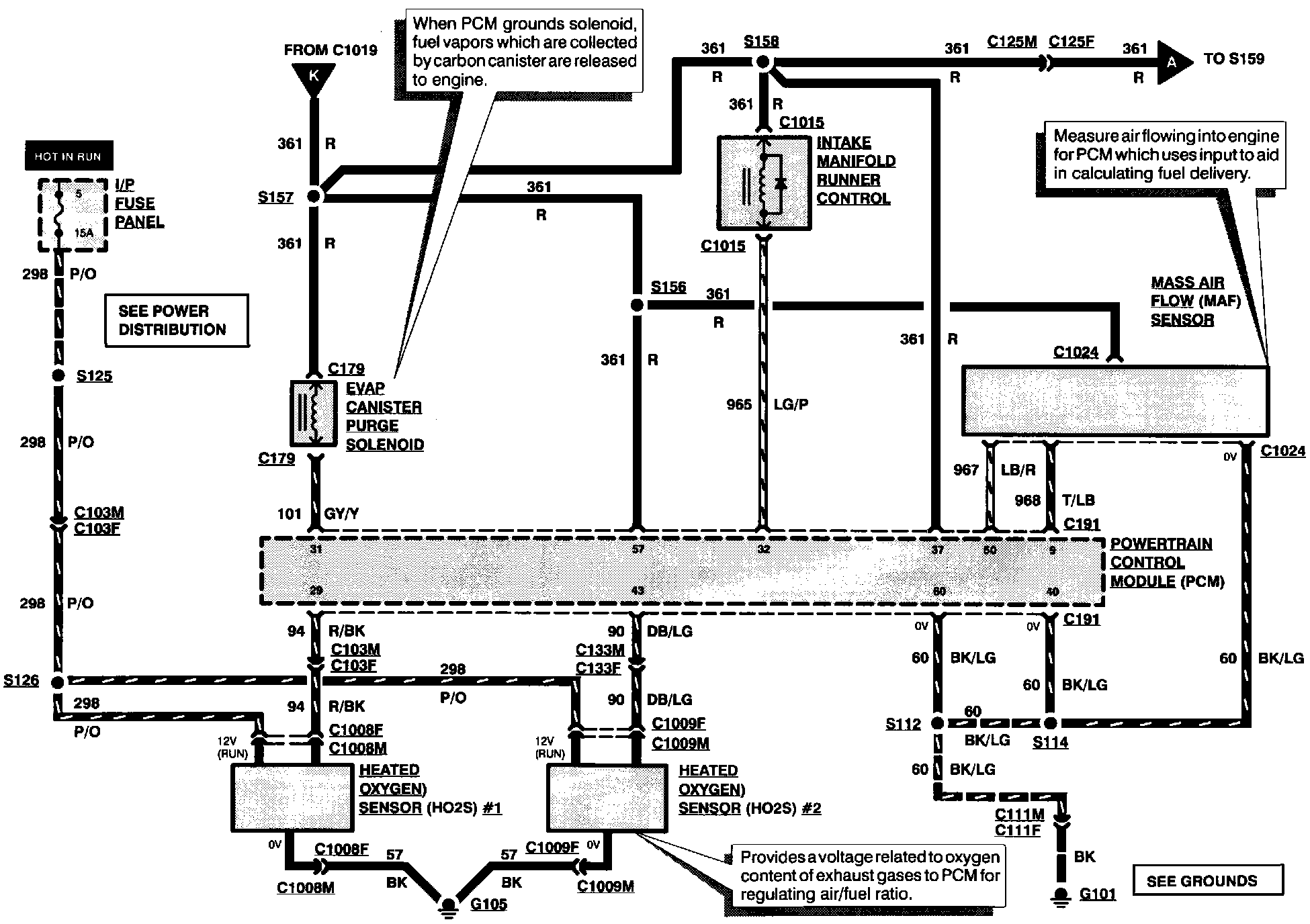

Engine Controls (Part 1 Of 6):

EVAPORATIVE CANISTER PURGE SOLENOID
HEATER OXYGEN SENSOR #1
HEATER OXYGEN SENSOR #2
INTAKE MANIFOLD RUNNER CONTROL
MASS AIR FLOW SENSOR

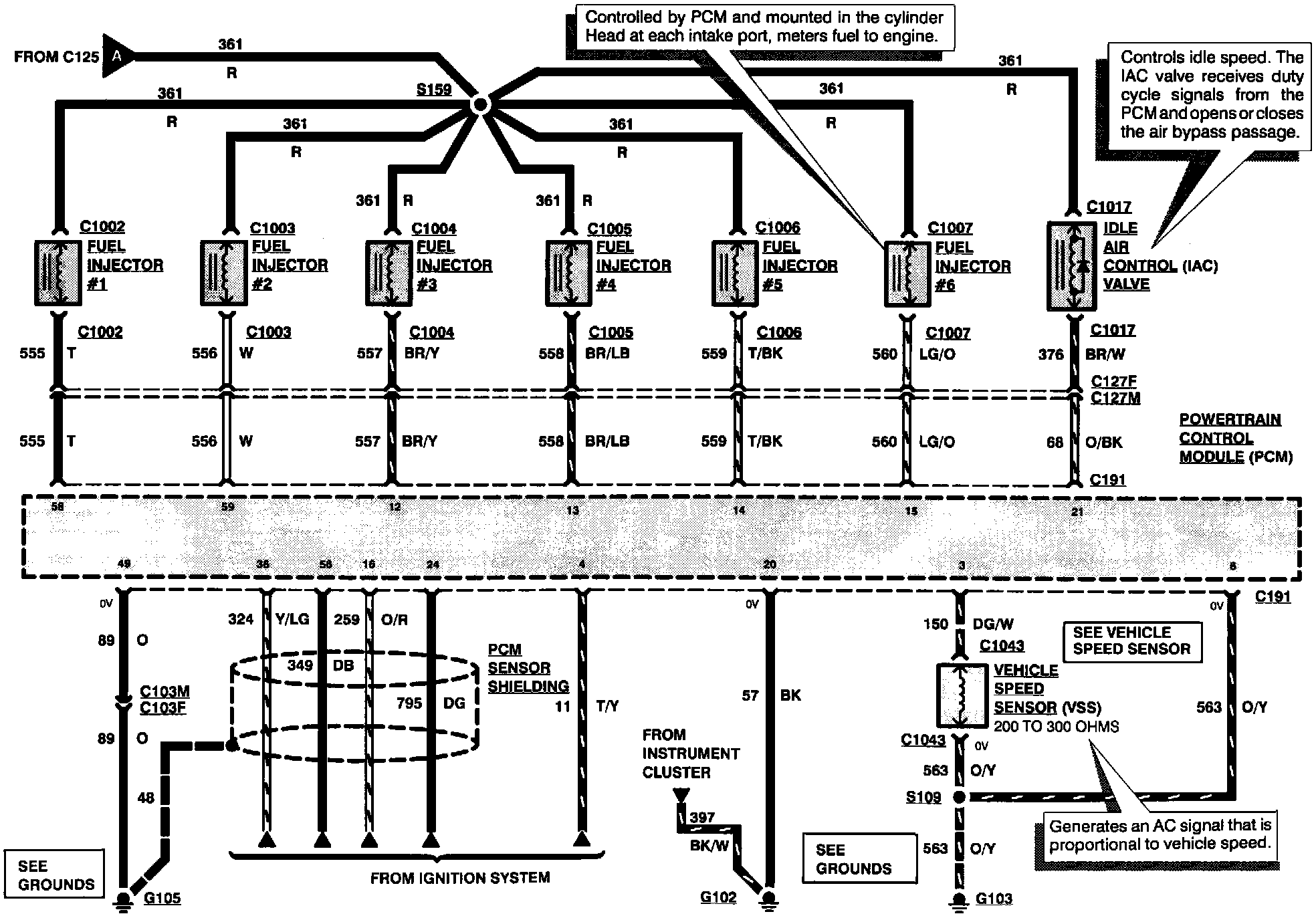

Engine Controls (Part 2 Of 6):

FUEL INJECTORS
IDLE AIR CONTROL VALVE
VEHICLE SPEED SENSOR

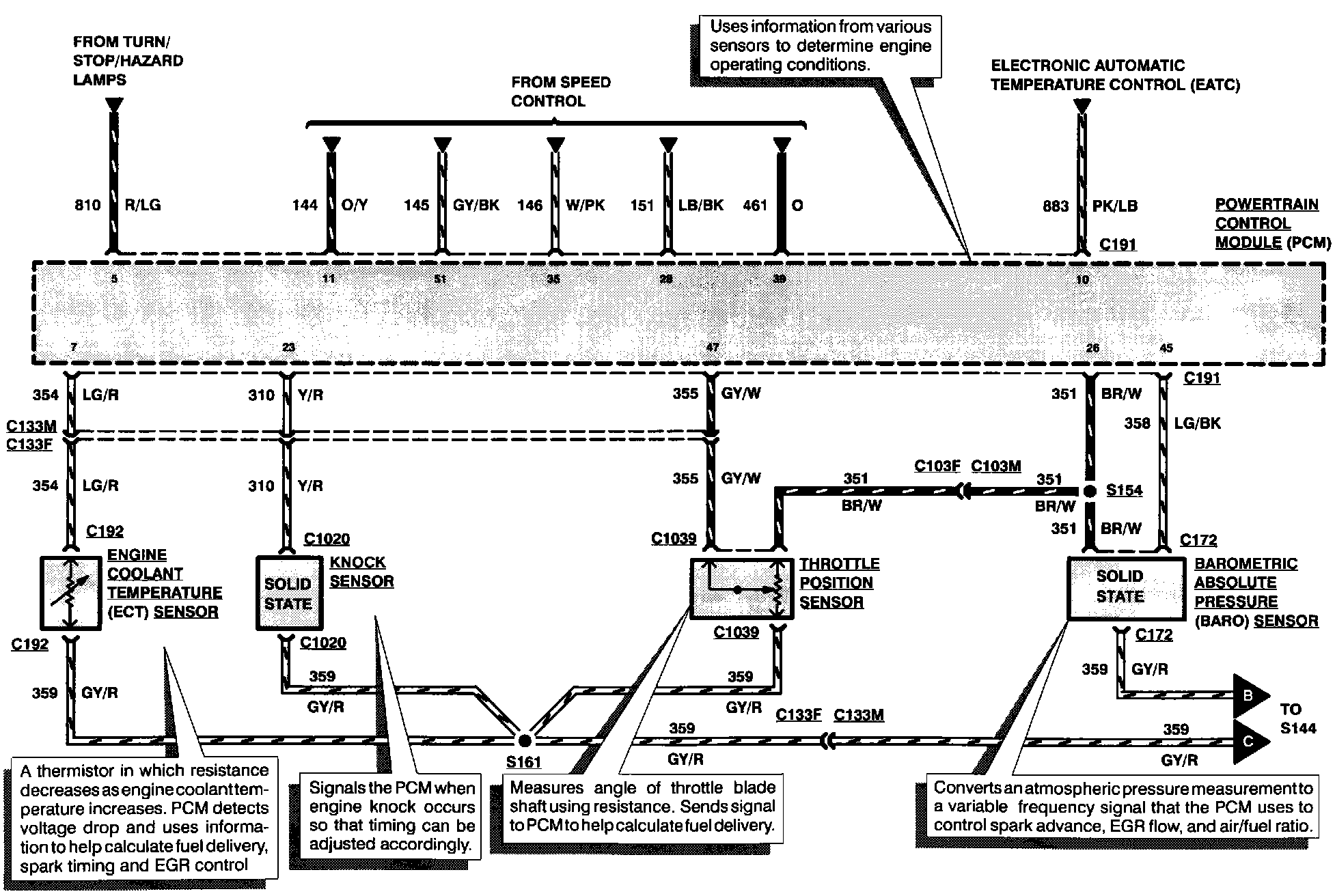

Engine Controls (Part 3 Of 6):

BAROMETRIC ABSOLUTE PRESSURE SENSOR
ENGINE COOLANT TEMPERATURE SENSOR
KNOCK SENSOR
THROTTLE POSITION SENSOR

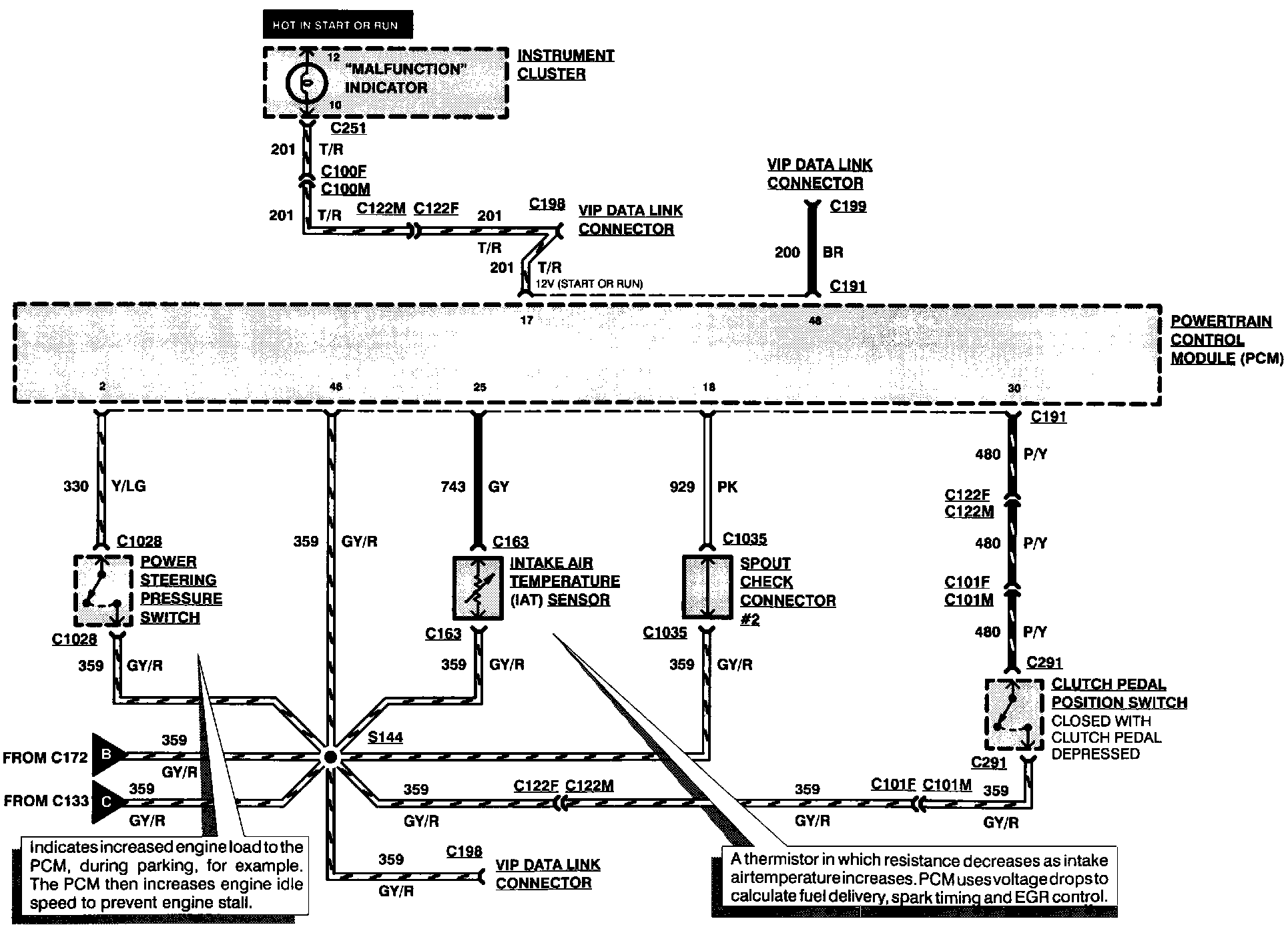

Engine Controls (Part 4 Of 6):

INTAKE AIR TEMPERATURE SENSOR
MALFUNCTION INDICATOR
SPARK OUTPUT CHECK CONNECTOR #2

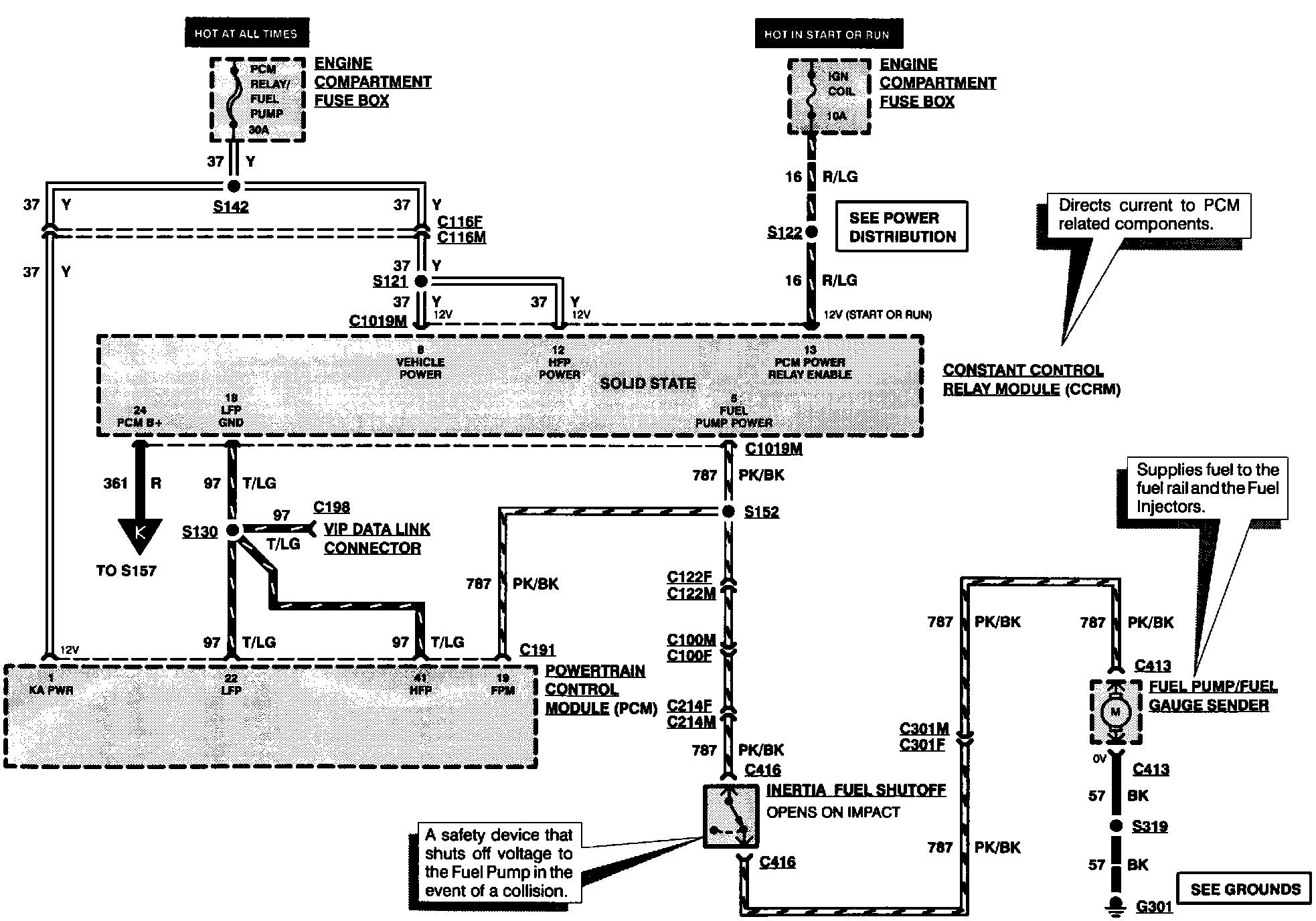

Engine Controls (Part 5 Of 6):

INERTIA FUEL SHUTOFF

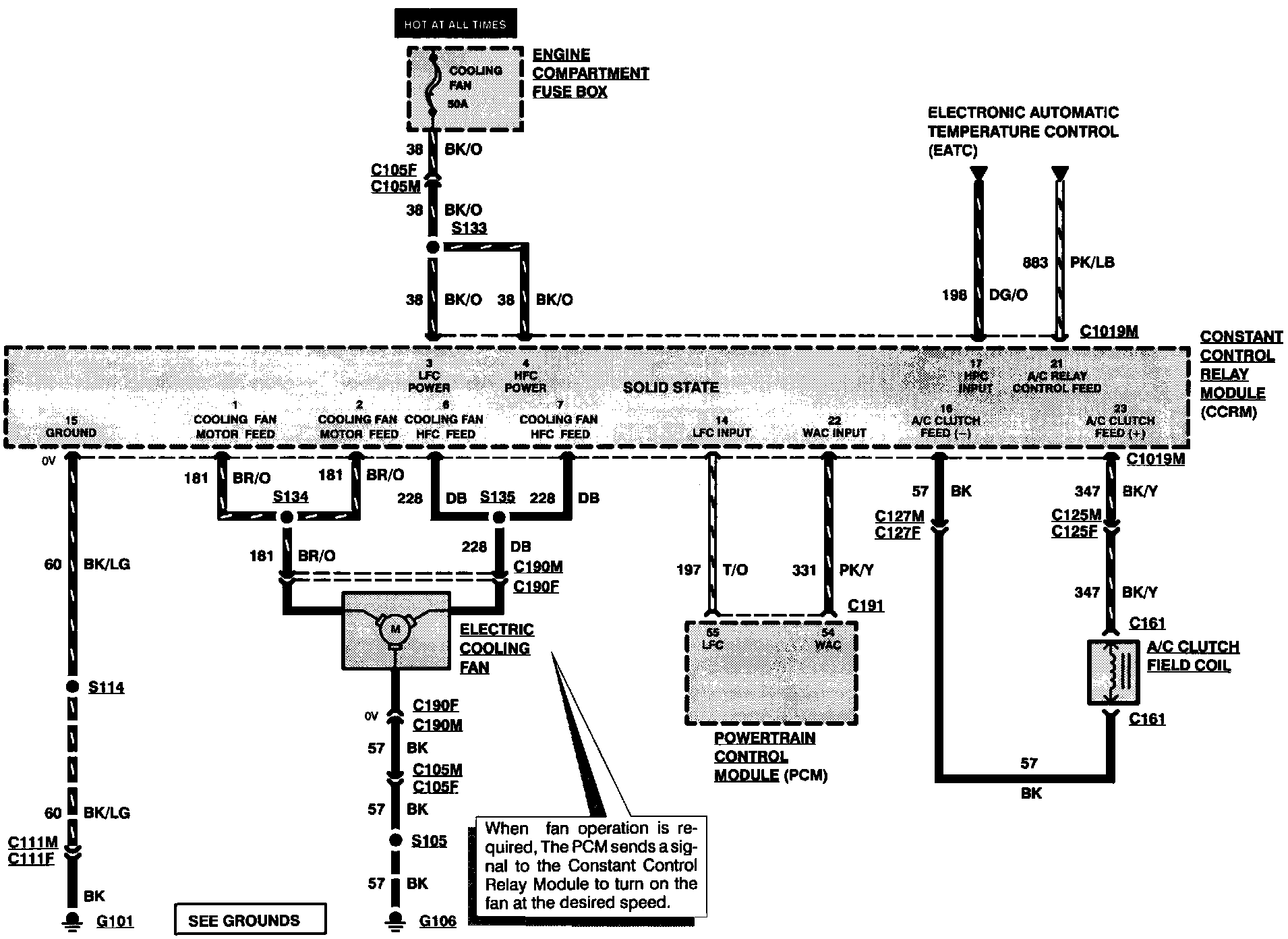

Engine Controls (Part 6 Of 6):

A/C CLUTCH FIELD COIL
ELECTRIC COOLING FAN
