Engine Controls

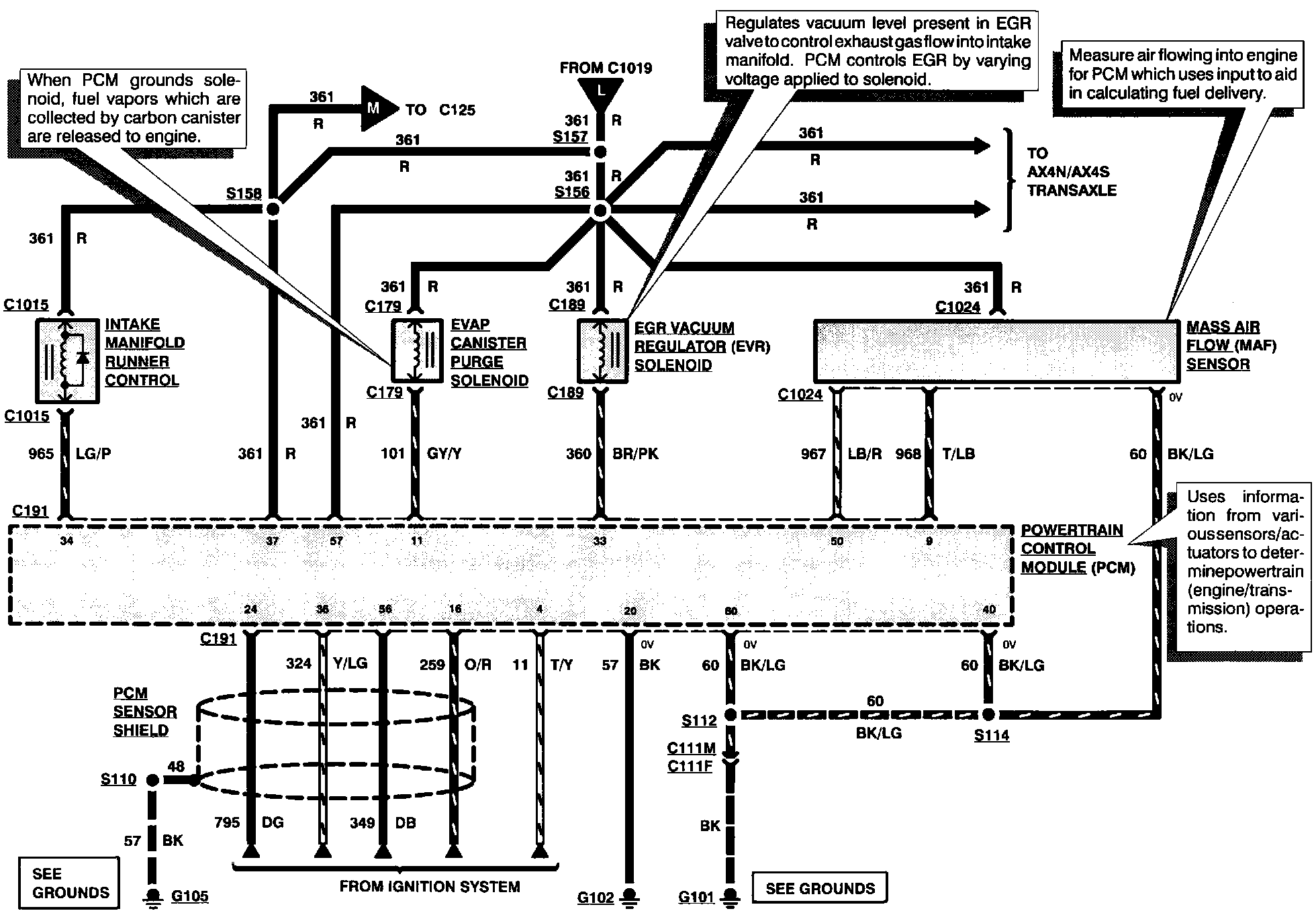

Engine Controls (Part 1 Of 7):

EGR VACUUM REGULATOR SOLENOID
EVAPORATIVE CANISTER PURGE SOLENOID
INTAKE MANIFOLD RUNNER CONTROL
MASS AIR FLOW SENSOR

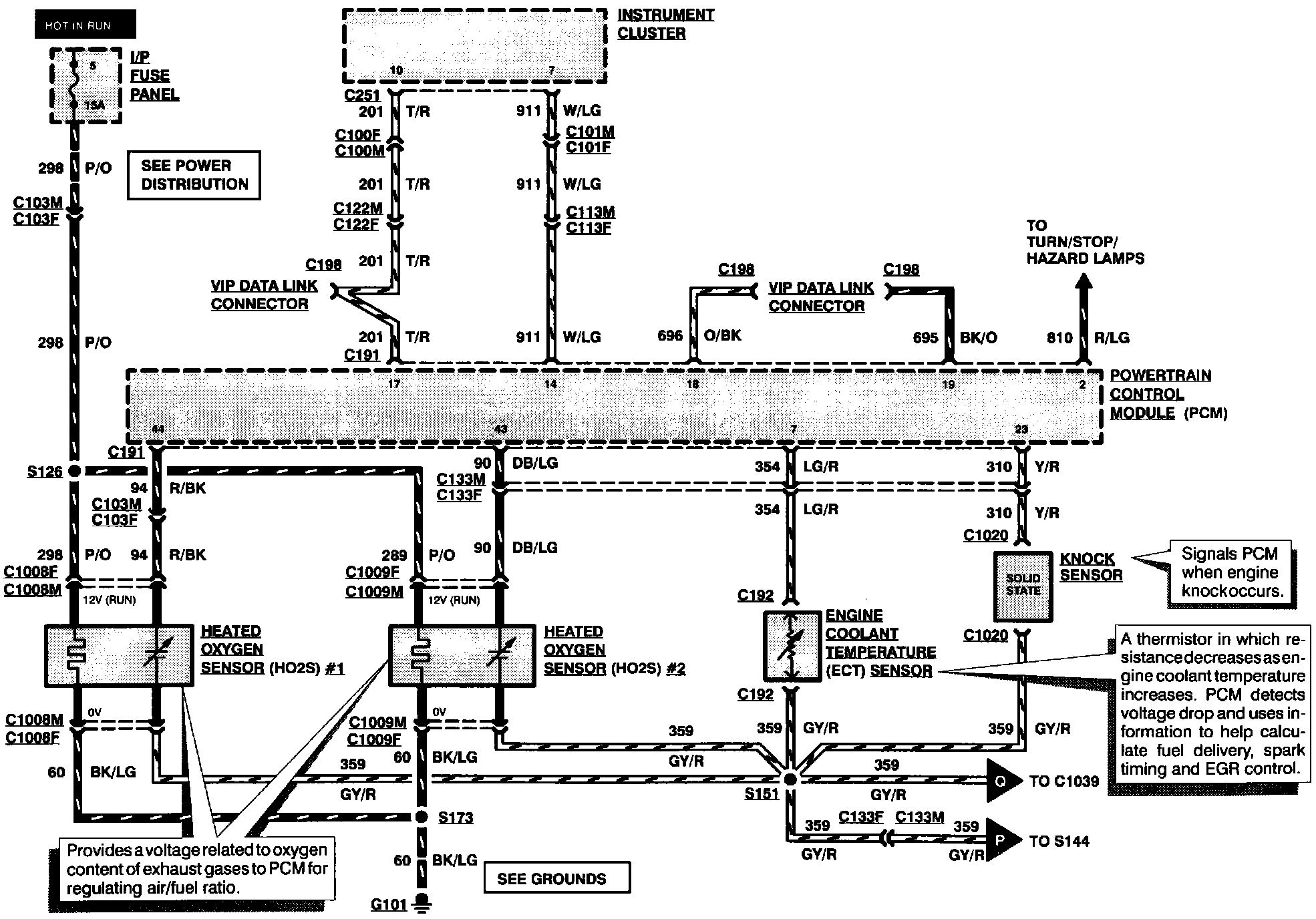

Engine Controls (Part 2 Of 7):

ENGINE COOLANT TEMPERATURE SENSOR
HEATER OXYGEN SENOR #1
HEATER OXYGEN SENOR #2
KNOCK SENSOR

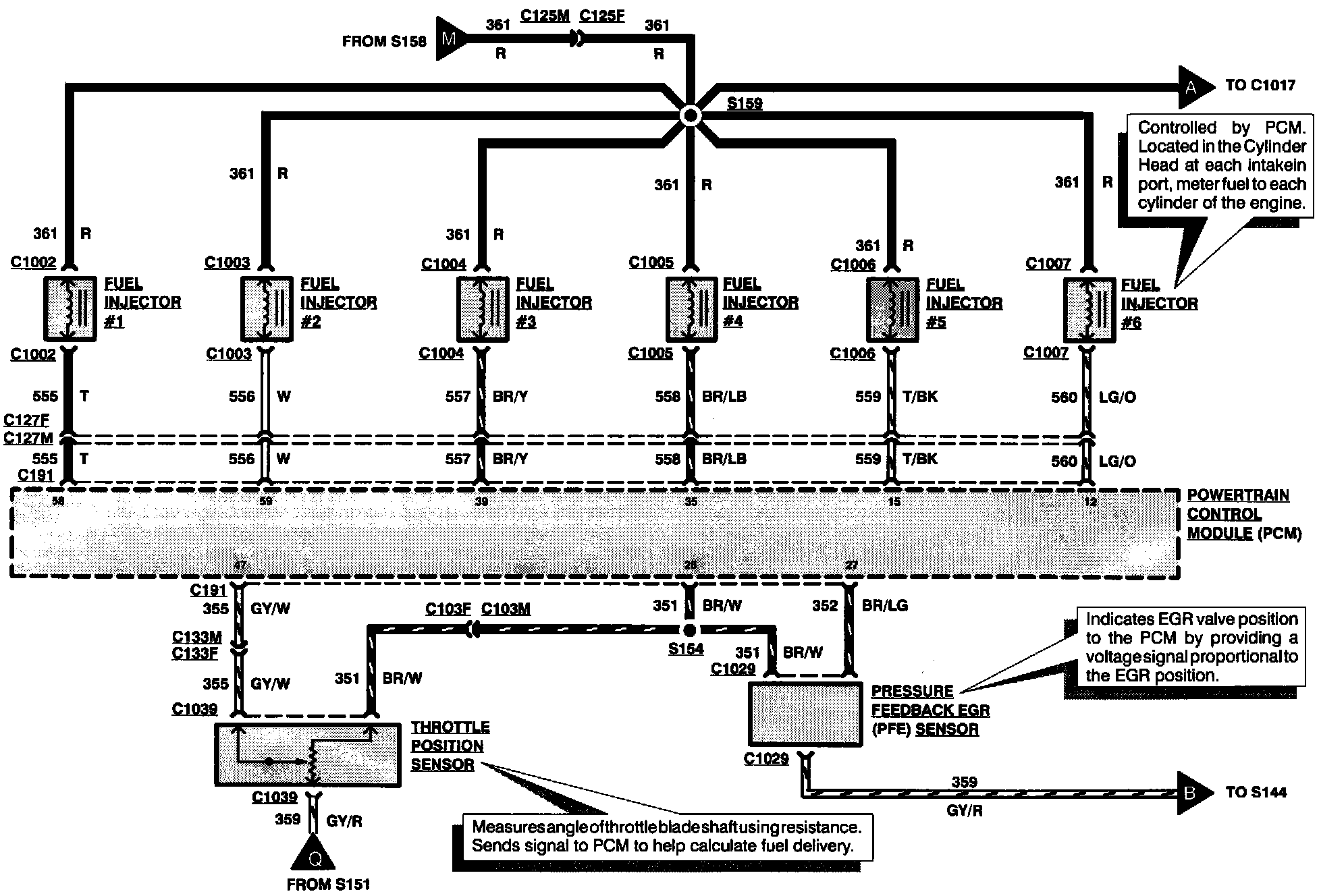

Engine Controls (Part 3 Of 7):

FUEL INJECTORS
PRESSURE FEEDBACK EGR SENSOR
THROTTLE POSITION SENSOR

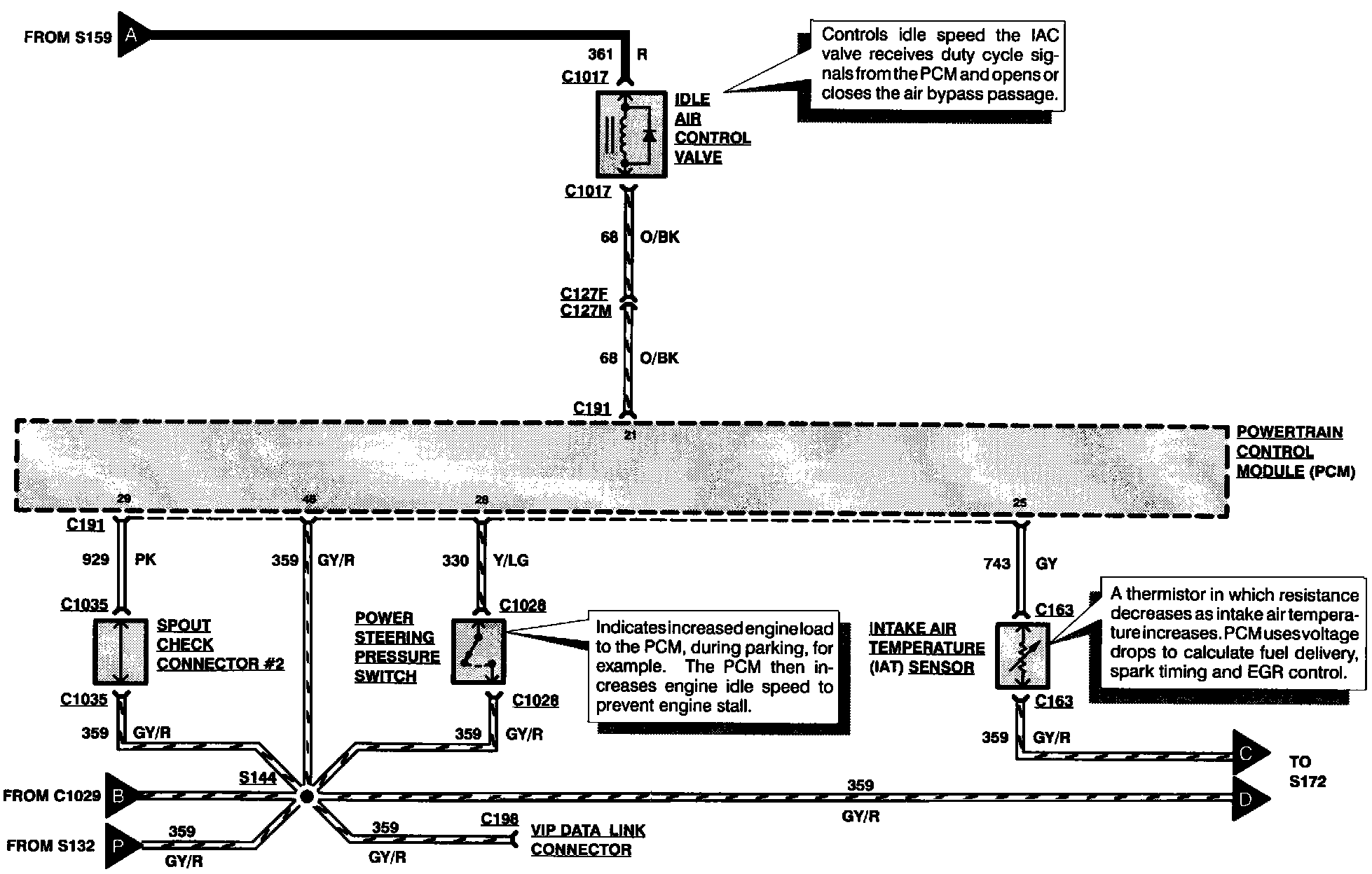

Engine Controls (Part 4 Of 7):

IDLE AIR CONTROL VALVE
INTAKE AIR TEMPERATURE SENSOR
POWER STEERING PRESSURE SWITCH
SPARK OUTPUT CHECK CONNECTOR #2

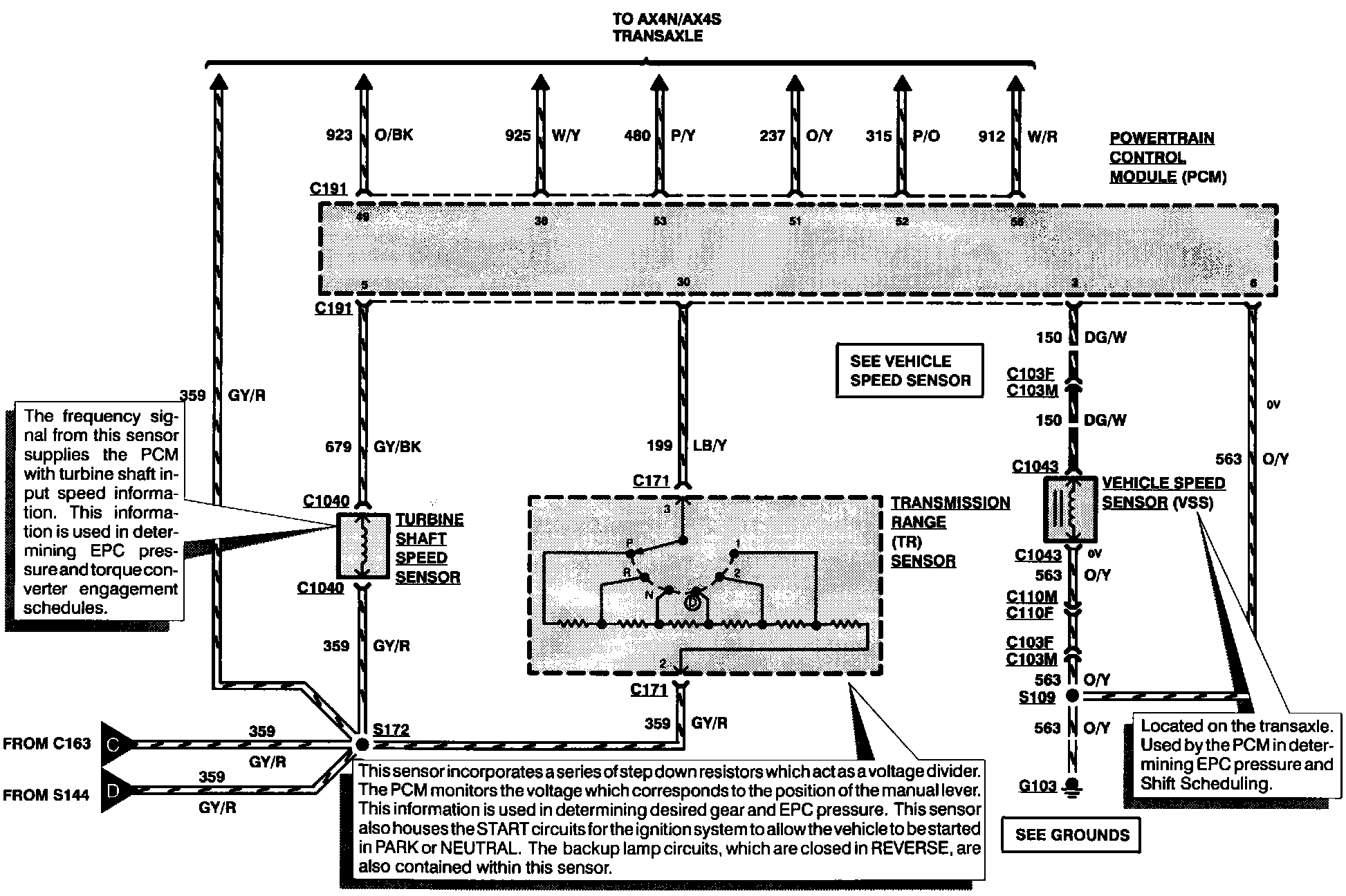

Engine Controls (Part 5 Of 7):

TURBINE SHAFT SPEED SENSOR
VEHICLE SPEED SENSOR

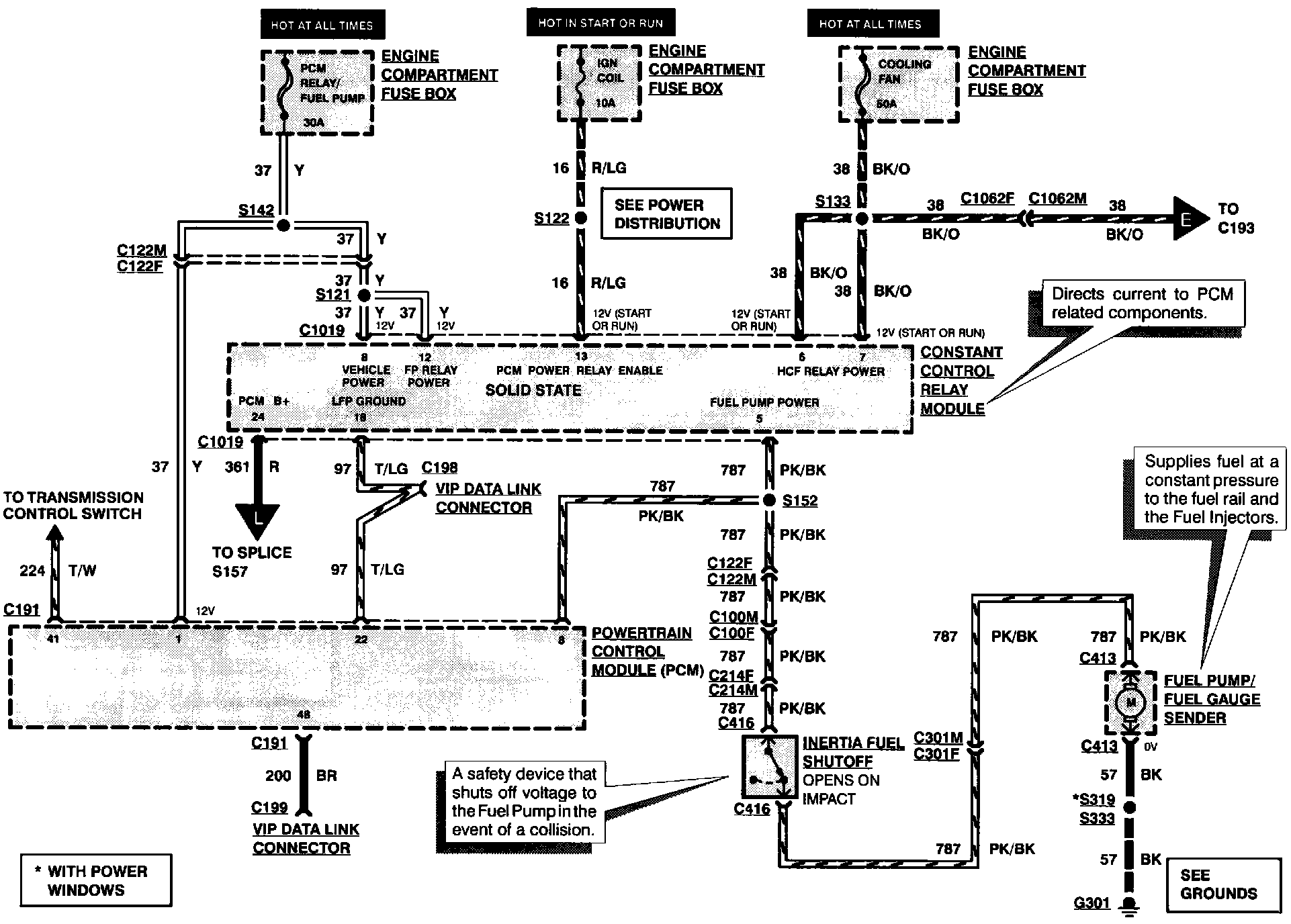

Engine Controls (Part 6 Of 7):

INERTIA FUEL SHUTOFF

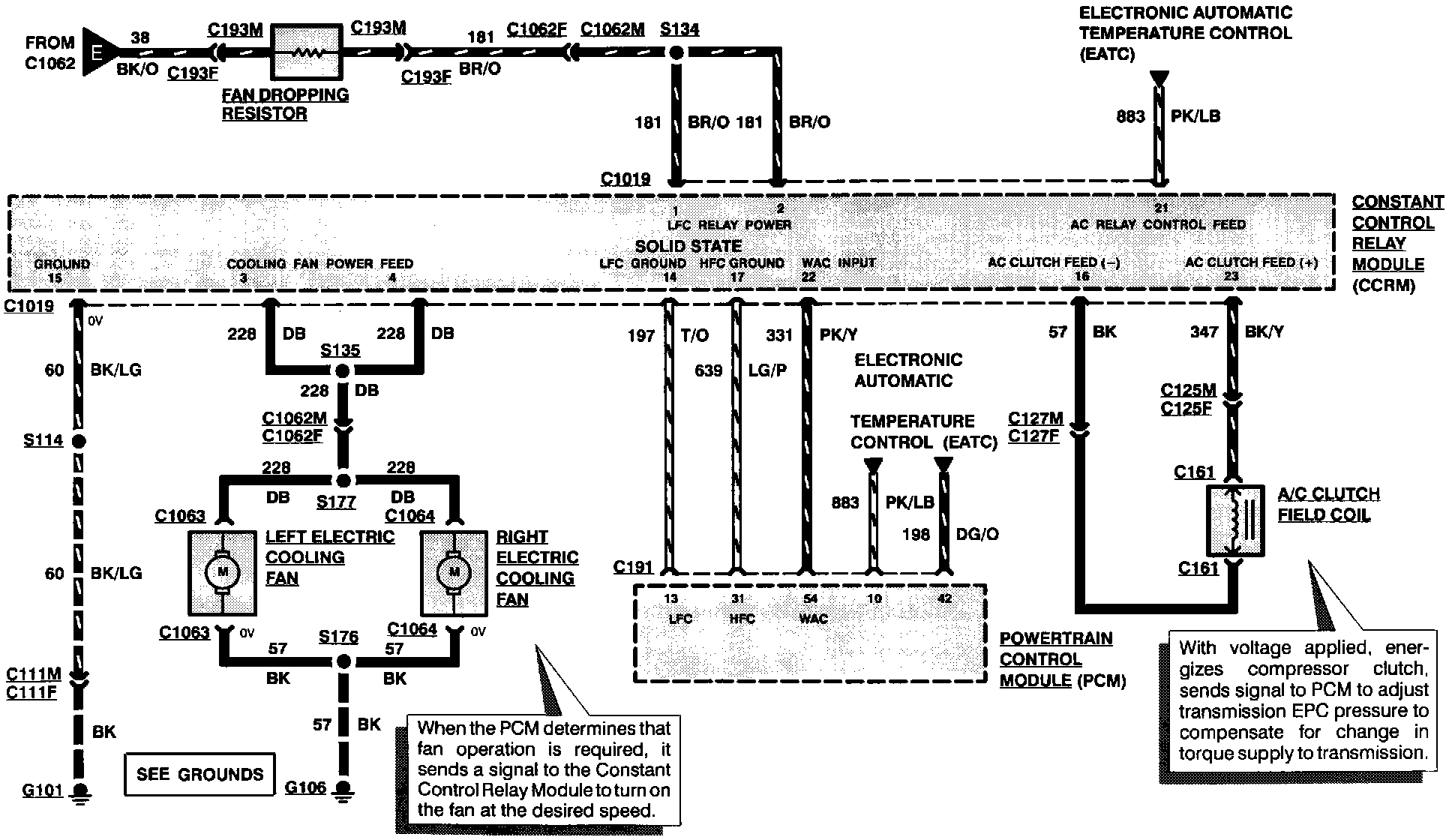

Engine Controls (Part 7 Of 7):

A/C CLUTCH FIELD COIL
LEFT ELECTRIC COOLING FAN
RIGHT ELECTRIC COOLING FAN
