Ignition Coil Bracket

REMOVAL
1. Disconnect engine control sensor wiring connectors from ignition coil and radio ignition interference capacitor.

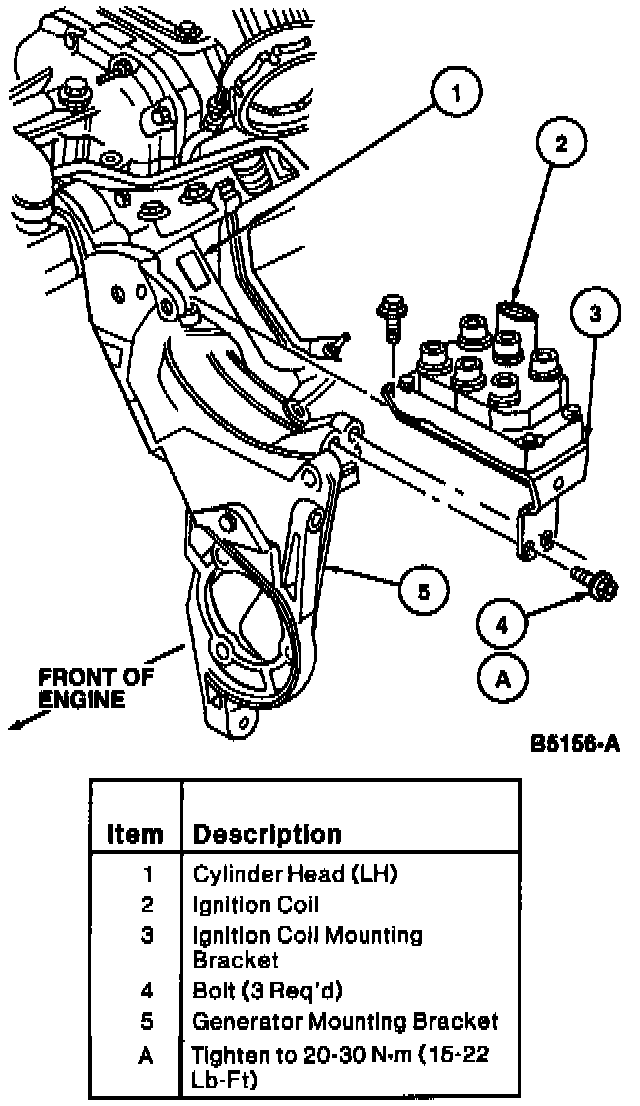

Ignition Coil Bracket:






2. Remove ignition coil and radio ignition interference capacitor from ignition coil bracket (if necessary).
3. Remove upper and lower ignition coil bracket bolts from generator mounting bracket.

INSTALLATION
1. To install, reverse Removal procedure.
2. Tighten ignition coil bracket retainer bolts to 20-30 Nm (15-22 ft lb).
