Wiper Switch: Testing and Inspection

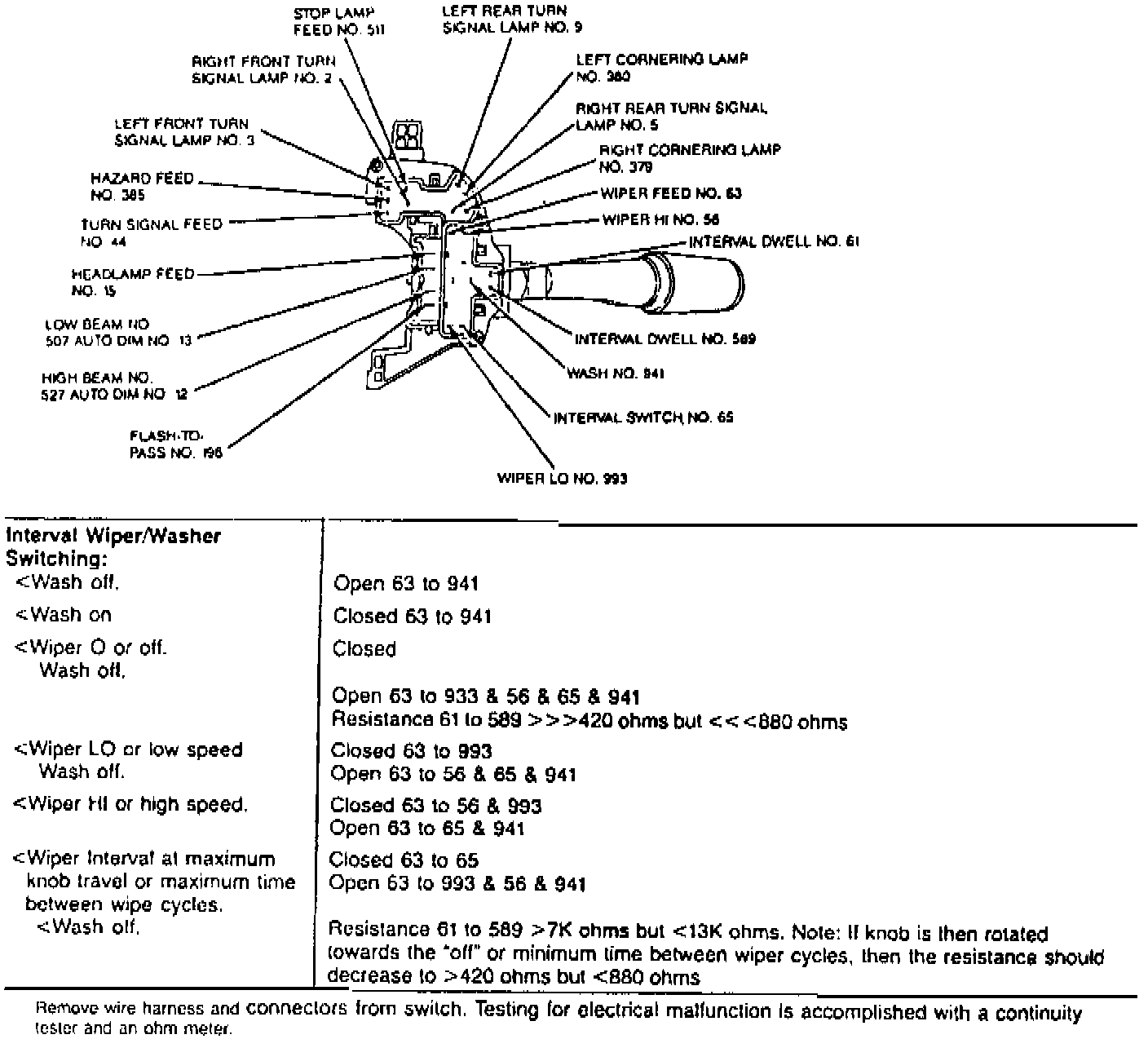

Wiper Switch Continuity Test:

NOTES:
- When testing an intermittent wiper switch, use only an ohmmeter to check continuity.

- When taking test readings, move the switch to detect marginal switch operation.
