Connector Views

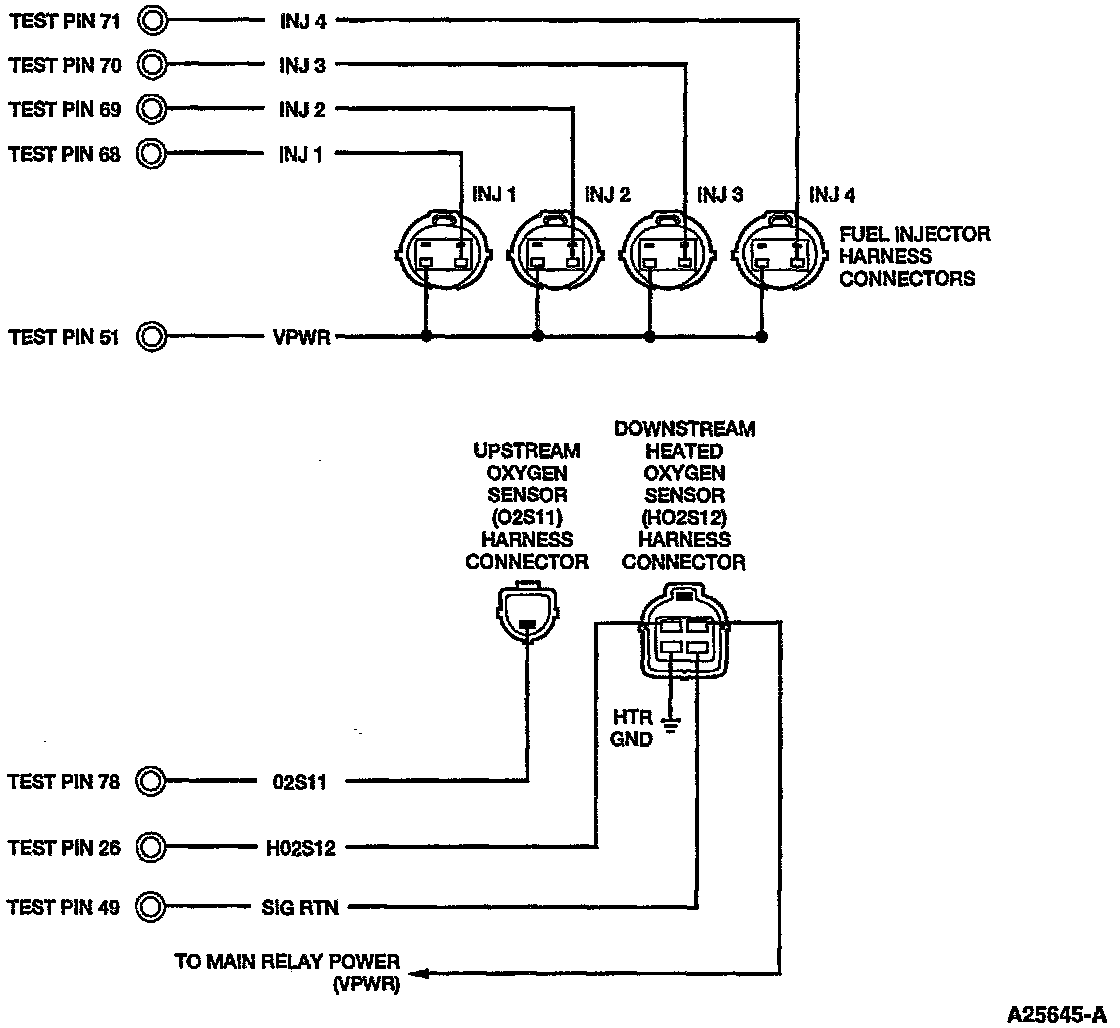

Fuel Injector And (Heated) Oxygen Sensor Harness Connectors:





NOTE: This application uses an upstream Oxygen Sensor (O2S) instead of an upstream Heated Oxygen Sensor (HO2S).
