Downstream
1.
Raise and support vehicle.

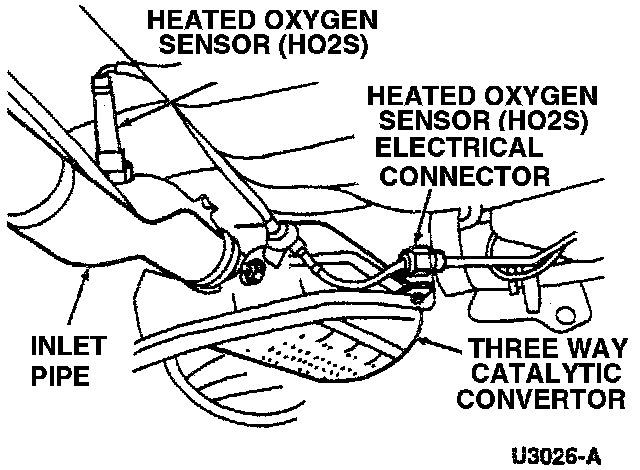

Oxygen Sensor:
2.
Disconnect the downstream Heated Oxygen Sensor
(HO2S) electrical connector.
3.
Use
Oxygen Sensor Wrench T94P-9472-A, or equivalent, to remove the downstream HO2S from the inlet pipe.
4.
Reverse procedure to install.
