EGR Valve: Service and Repair

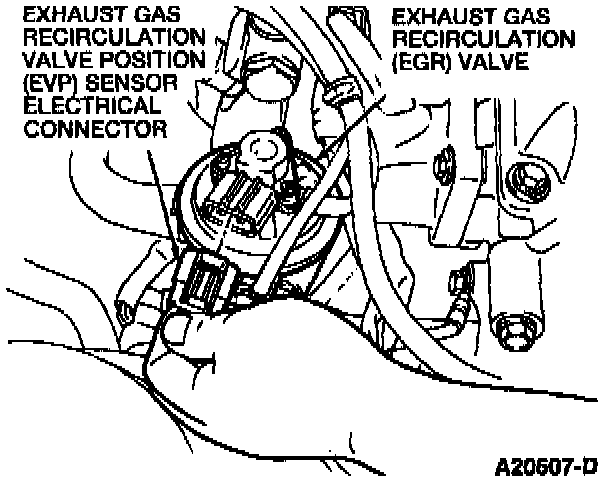

EGR Valve:
1.
Disconnect the Exhaust Gas Recirculation Valve Position
(EVP) sensor electrical connector.
2.
Disconnect the two vacuum hoses.

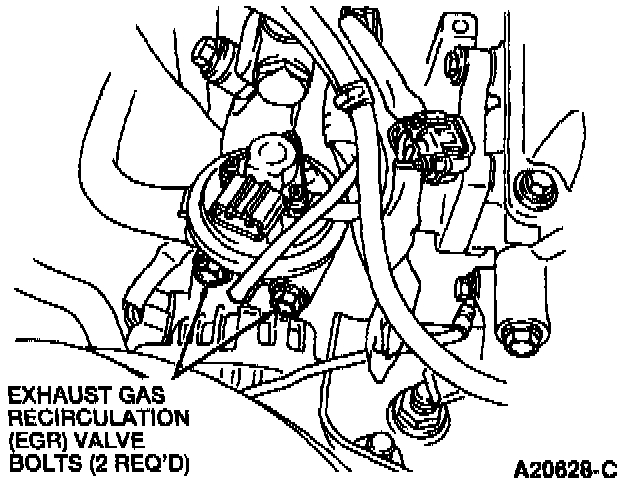

EGR Valve:
3.
Remove the two
Exhaust Gas Recirculation (EGR) valve bolts.
4.
Remove the
EGR valve.
5.
Remove the valve and discard the gasket.
6.
To install, reverse the removal procedure. Install a new gasket.
