Ignition Rotor: Service and Repair
1.
Disconnect the battery ground cable.
Distributor Cap:
2.
Remove the two
distributor cap screws.
3.
Pull the
distributor cap off and position it aside.

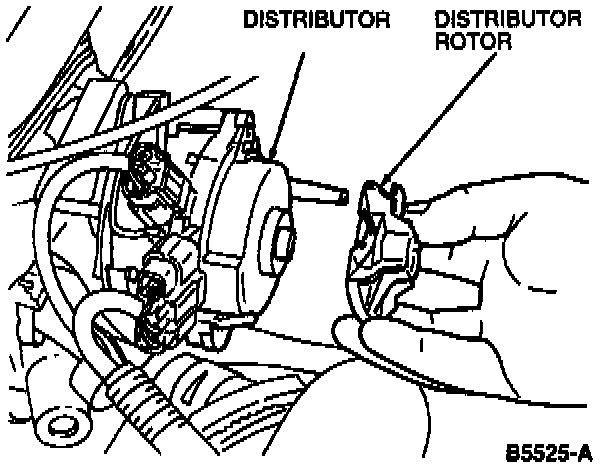

Distributor Rotor:
4.
Remove the distributor rotor.
5.
To install, reverse the removal procedure. Check for proper operation.
