Air Bag Control Module: Service and Repair

REMOVAL
1. Disconnect battery ground cable.
2. Disconnect positive battery cable and wait one minute for back-up power supply energy to be depleted.

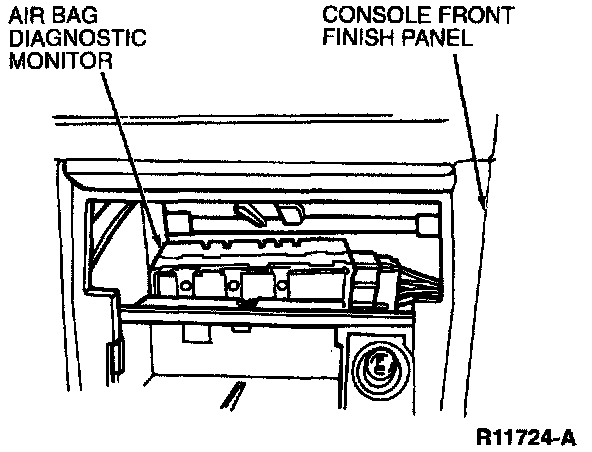

3. Remove storage tray from console front finish panel.
4. Depress tabs on air bag monitor bracket and slide air bag diagnostic monitor off bracket.

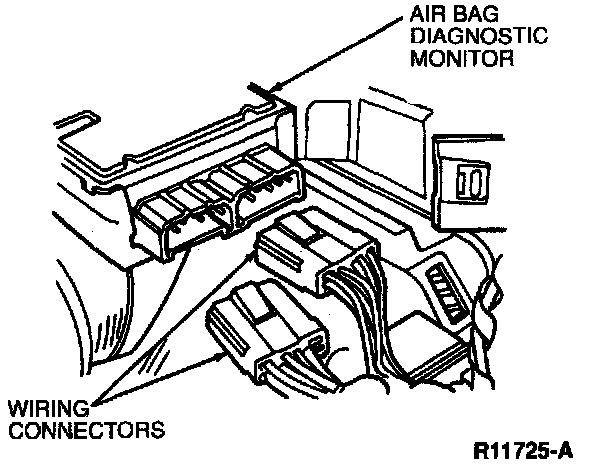

5. Disconnect air bag diagnostic monitor electrical wiring connectors and remove air bag diagnostic monitor.






INSTALLATION
1. Connect electrical wiring connectors to the air bag diagnostic monitor.
2. Position air bag diagnostic monitor to air bag monitor bracket and slide air bag diagnostic monitor into place. Make sure that tabs are locked in place.
3. Install storage tray into console front finish panel.
4. Reconnect positive battery cable.
5. Reconnect battery ground cable.
6. Prove out air bag system.
