Antilock Brake System DTC Index

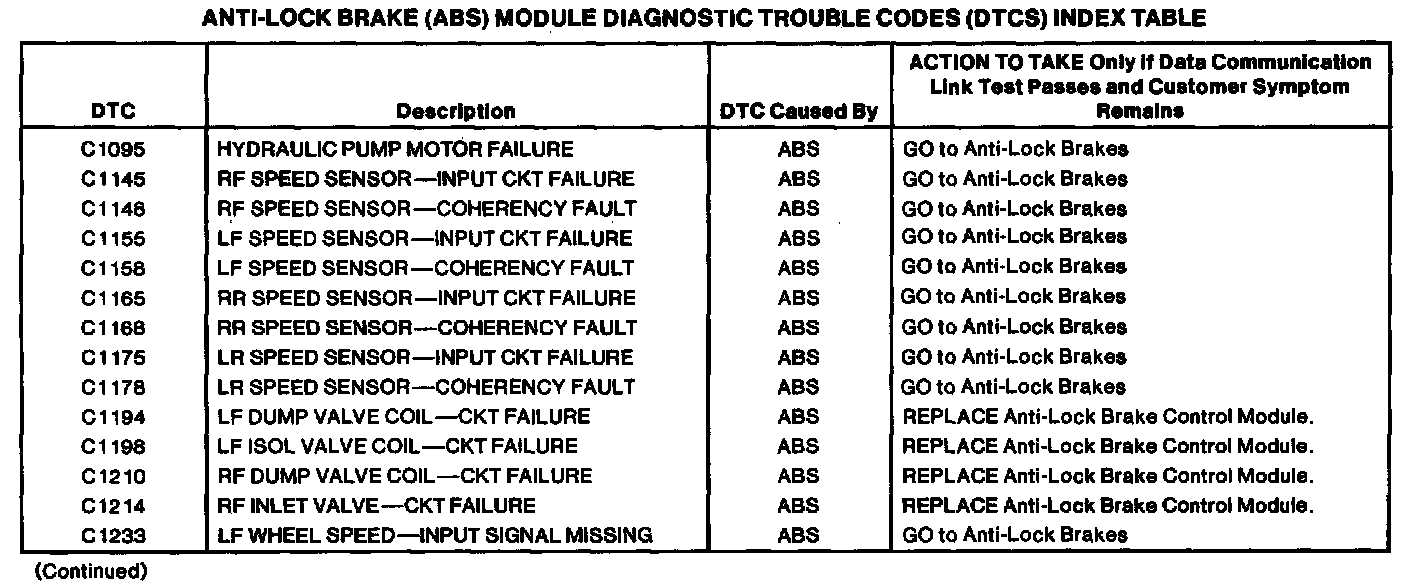

Antilock Brake Control Module DTC Chart Part 1 Of 2:

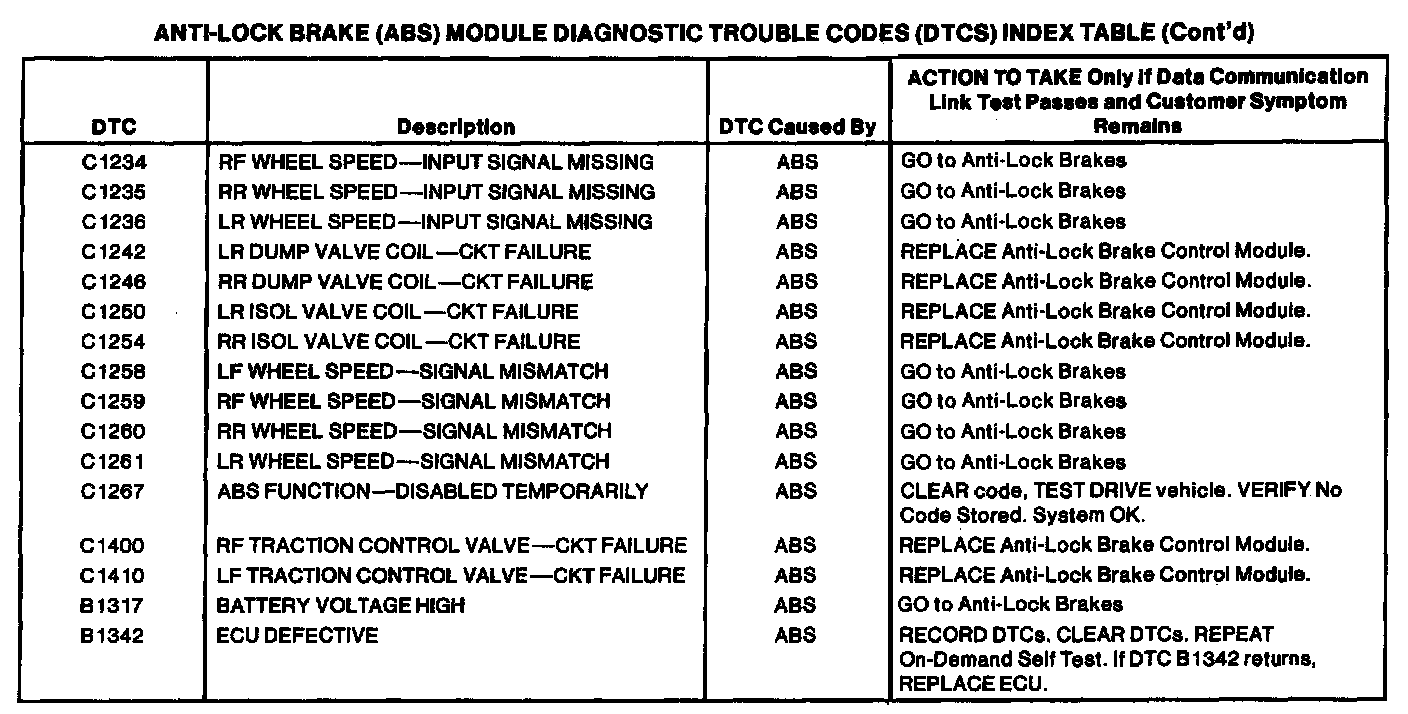

Antilock Brake Control Module DTC Chart Part 2 Of 2:





NOTE: A Code C 1267 indicates the anti-lock brake control module experienced a strong electromagnetic field which temporarily disabled the module. When the anti-lock brake control module is/was removed from the disturbance, the anti-lock brake control module should function properly with the next ignition switch-on. Do not replace the anti-lock brake control module when this DTC appears. Service all other DTCs first.
