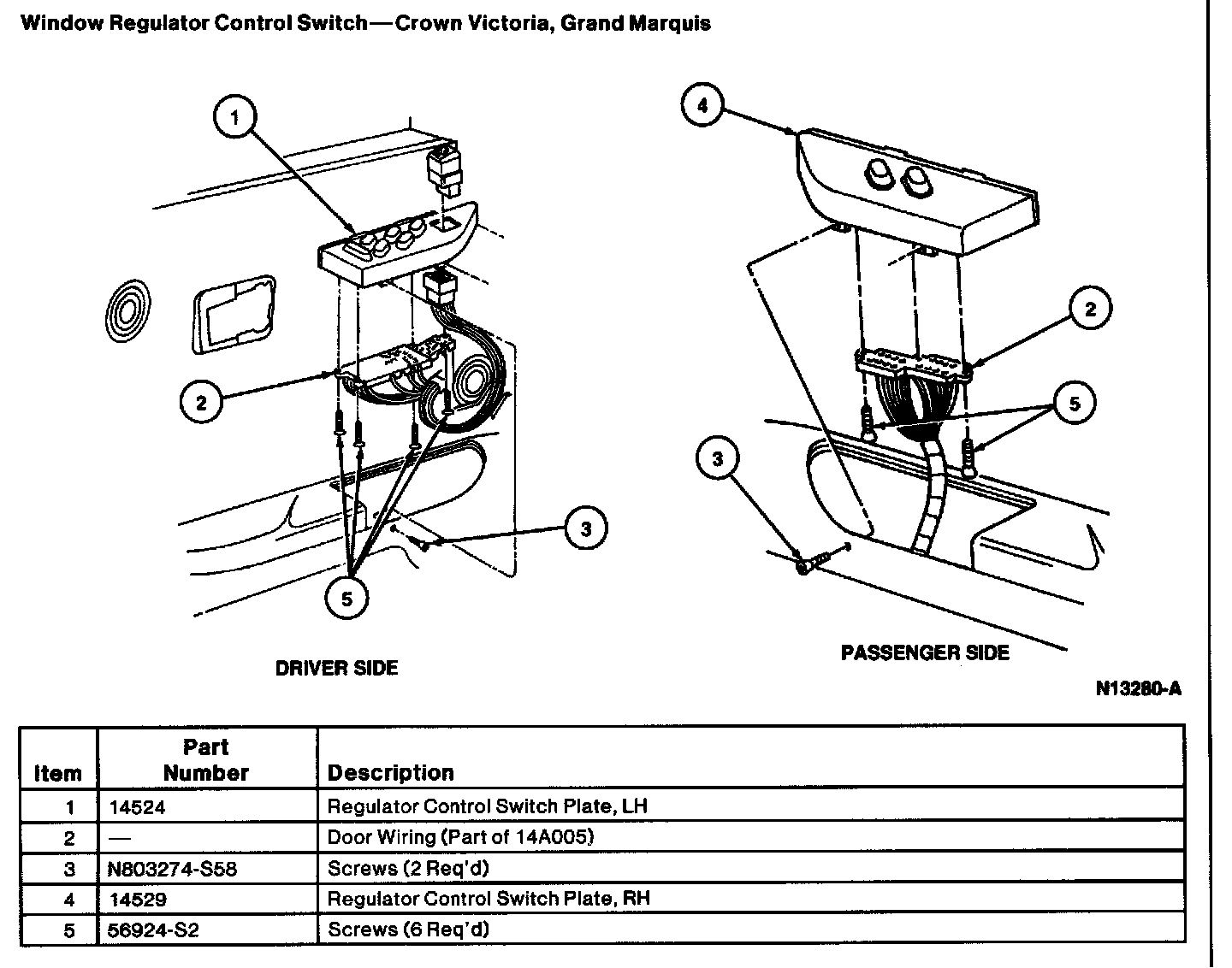

Window Regulator Control Switch

Removal and Installation

1. Disconnect battery ground cable.

2. Remove screw and pry up gently on the window regulator switch housing starting at the front.

3. Remove the four screws retaining the connector to the window regulator switch plate driver door.

4. Remove screw from armrest. Gently pull window regulator control switch from door. Remove two screws retaining connector to window regulator control switch at passenger door.

5. Carefully pry the window regulator control switch from the connector with a small screwdriver. Take care not to damage the electrical contact pins.

6. To install, reverse Removal procedure.
