Front
Removal and Installation 1.
Remove front door trim panel.
Doors 2.
Remove rear door
window glass.
3.

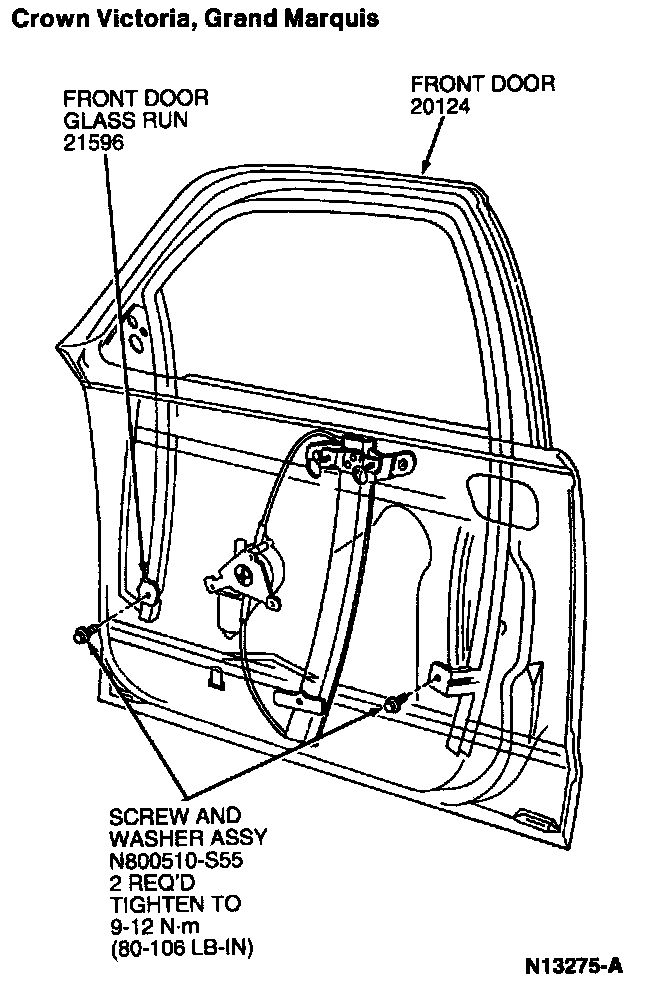

Remove two screws retaining front door glass run front retainer and front door glass hinge side run to front door. Remove front door glass run front retainer and front door glass hinge side run.
4.
To install, reverse Removal procedure. Tighten screws to
9-12 N.m (80-106 lb-in).
