Clutch Switch: Service and Repair

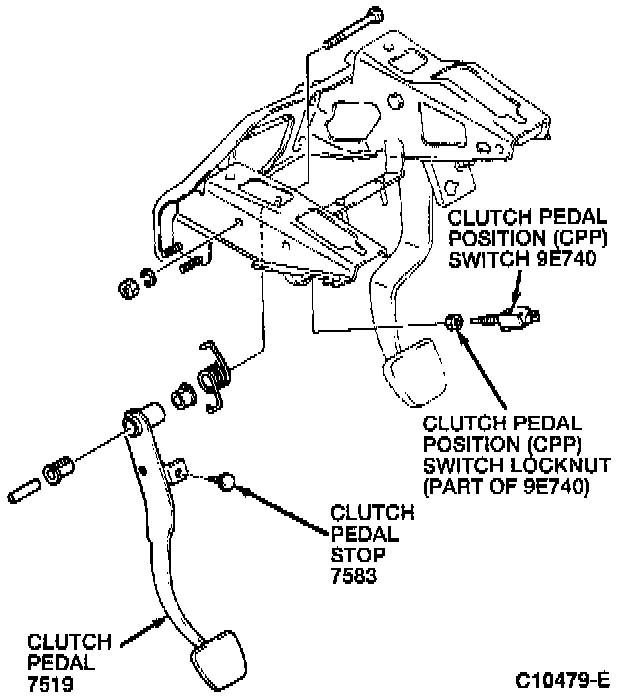

Clutch Pedal Assembly:
1.
Disconnect the battery ground cable.
1.
Disconnect the Clutch Pedal Position
(CPP) switch electrical connector.
2.
Remove switch retaining locknut.
3.
Remove the switch.
4.
To install, reverse the removal procedure. Tighten the locknut to
14-18 Nm (10-13 lb ft).
