Radiator: Service and Repair

REMOVAL AND INSTALLATION
1. Drain cooling system.
2. Remove air cleaner outlet tube.

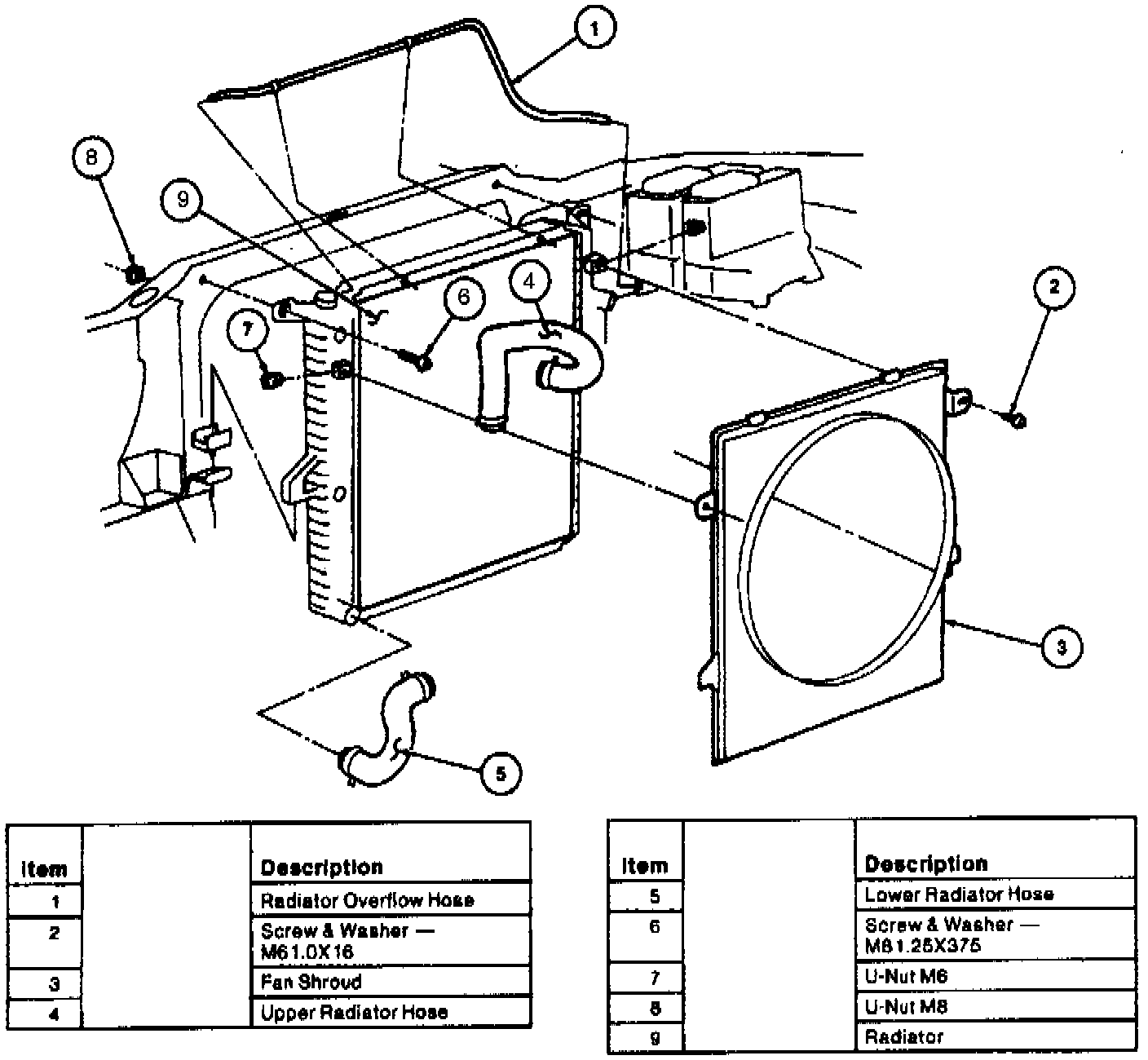

Fig. 15 Radiator Replacement.:

3. Remove rubber radiator overflow hose from radiator and position aside.
4. Use fan clutch wrench, tool No. T96T-6312-A or equivalent, and fan hub wrench, tool No. T96T-6312-B or equivalent, to remove fan clutch from water pump pulley.
5. Remove upper fan shroud screws. Lift fan shroud from lower retaining clips.
6. Remove fan shroud and fan blade.
7. Loosen upper and lower hose clamps at radiator and remove upper and lower radiator hoses.
8. On models with automatic transmission, disconnect transmission cooler lines at radiator and remove transmission cooler tube support bracket from bottom flange of radiator.
9. On all models, unclip A/C condenser core from radiator.
10. Remove A/C condenser to radiator bolt.
11. Remove two radiator upper screws.
12. Separate radiator from A/C condenser core and remove.
13. Remove radiator lower support rubber insulators.
14. Reverse procedure to install.
