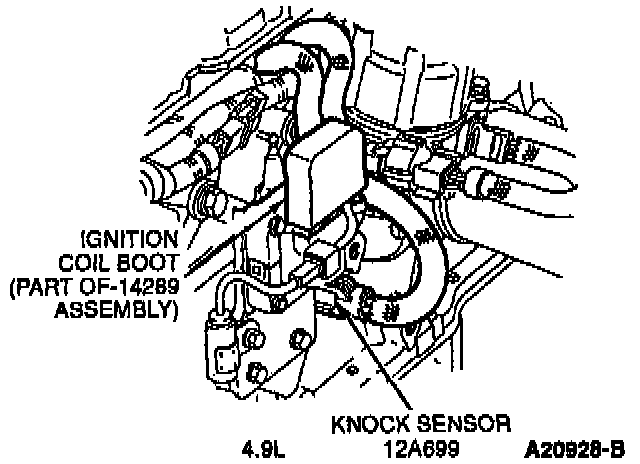

Knock Sensor: Service and Repair
Knock Sensor:
REMOVAL AND INSTALLATION 1.
Disconnect
Knock Sensor (KS) electrical connector.
2.
Remove sensor from cylinder block.
3.
To install, follow removal procedures in reverse order.
4.
Tighten
knock sensor to
20-27 Nm (15-20 lb ft).
