Distributor Cap: Service and Repair






REMOVAL

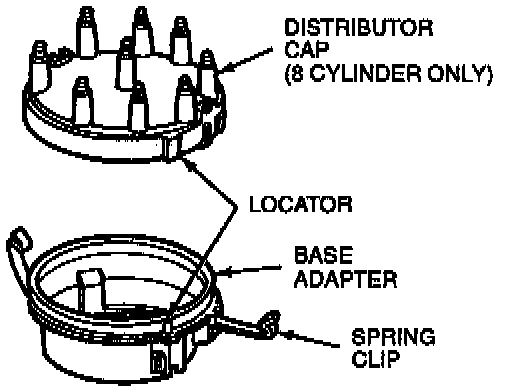

1. Disengage spring clips.
2. Lift distributor cap with attached wire set straight off distributor to prevent damage to rotor blade and spring. Base adapter can be removed by loosening attaching screws.

CLEANING
1. Wash both inside and outside surfaces of the distributor cap with soap and water.
2. Dry distributor cap with compressed air.

INSPECTION
1. Inspect distributor cap for cracks, broken carbon button or carbon tracks.
2. Inspect distributor cap terminals for dirt and corrosion.
3. Replace the distributor cap if it is damaged.


INSTALLATION
1. Reinstall any ignition wire and bracket removed in their proper locations.
2. If removed, position base adapter and tighten screws to 2.8-4.0 N.m (25-35 lb in).
3. Position spring clip and press inward on center of clip until it snaps into place on distributor cap.
