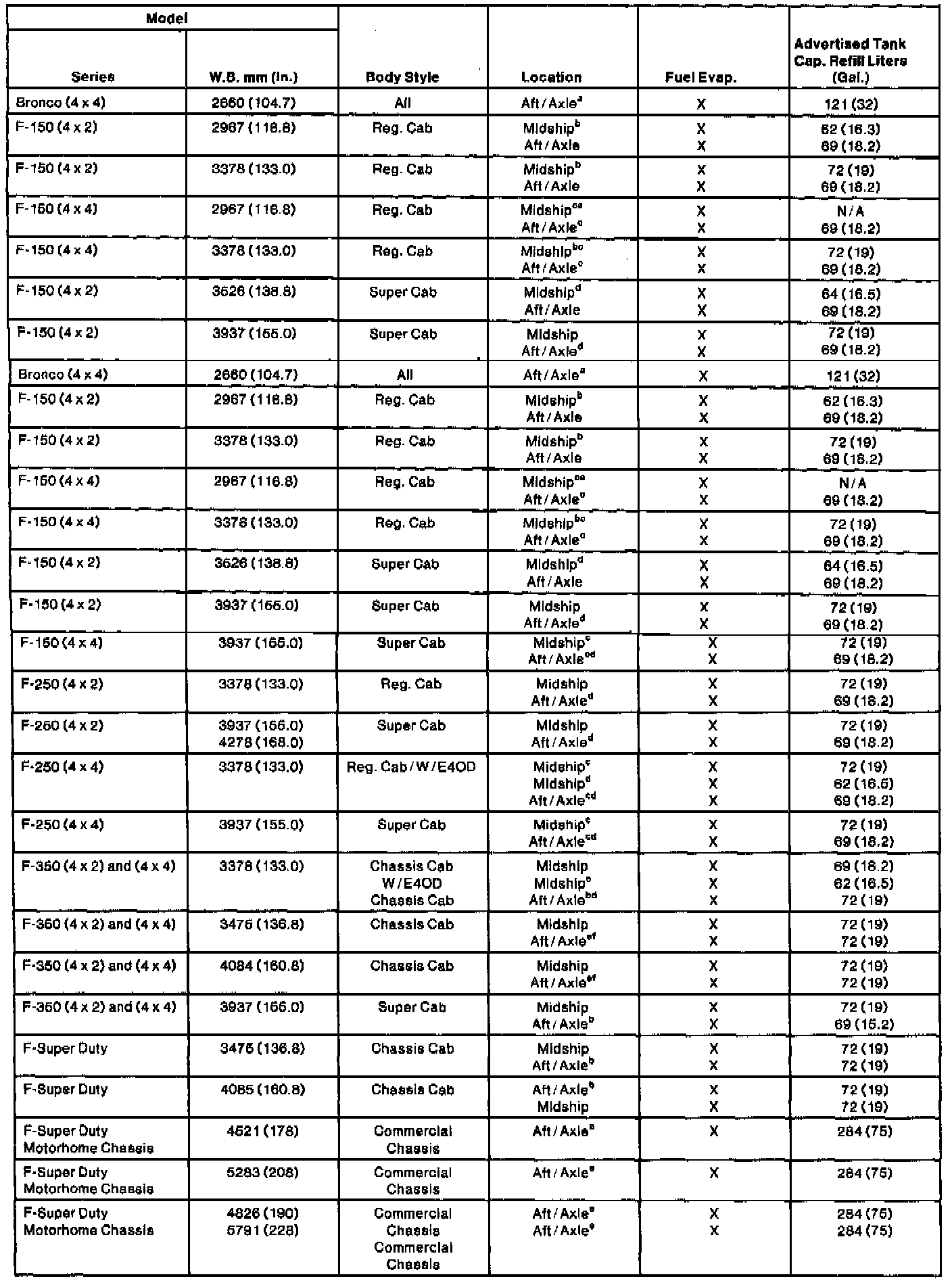

Fuel Tank

[a]: 15 liter (4 gal) throwaway standard on commercial cutaway, and commercial chassis.

[b]: Steel auxiliary tank.

[c]: Optional Skid Plate avail. on 4x4 models.

[d]: Standard dual tanks.

[d]: Standard skid plate on 4x4 models.

[d]: Plastic auxiliary tank.

NOTE: All F-Series aft-of-axle fuel tanks are standard. Midship 133 in. and 116.8 in. (2967mm and 3378mm) wheelbase tanks are optional.
