Test Notes

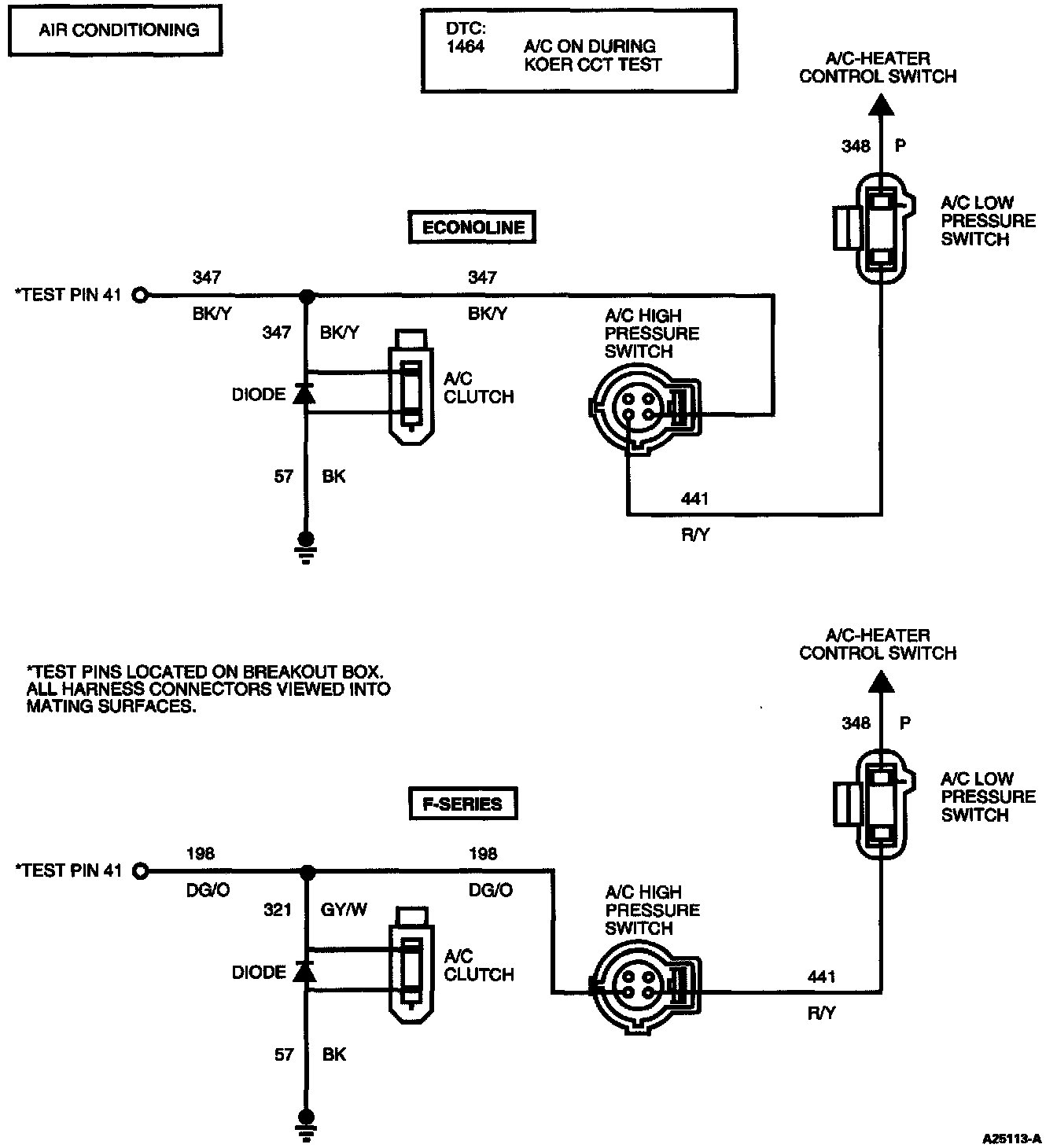

Test Schematic:
You should enter this pinpoint test only when directed here.
This pinpoint test is intended to diagnose the following:
-
Harness circuits for air conditioning
-
Powertrain Control Module (PCM) -
A/C clutch
DTC DESCRIPTION 1464 =
A/C on during Key On Engine Running
(KOER) Cylinder Contribution Self Test.
