Instrument Panel Views

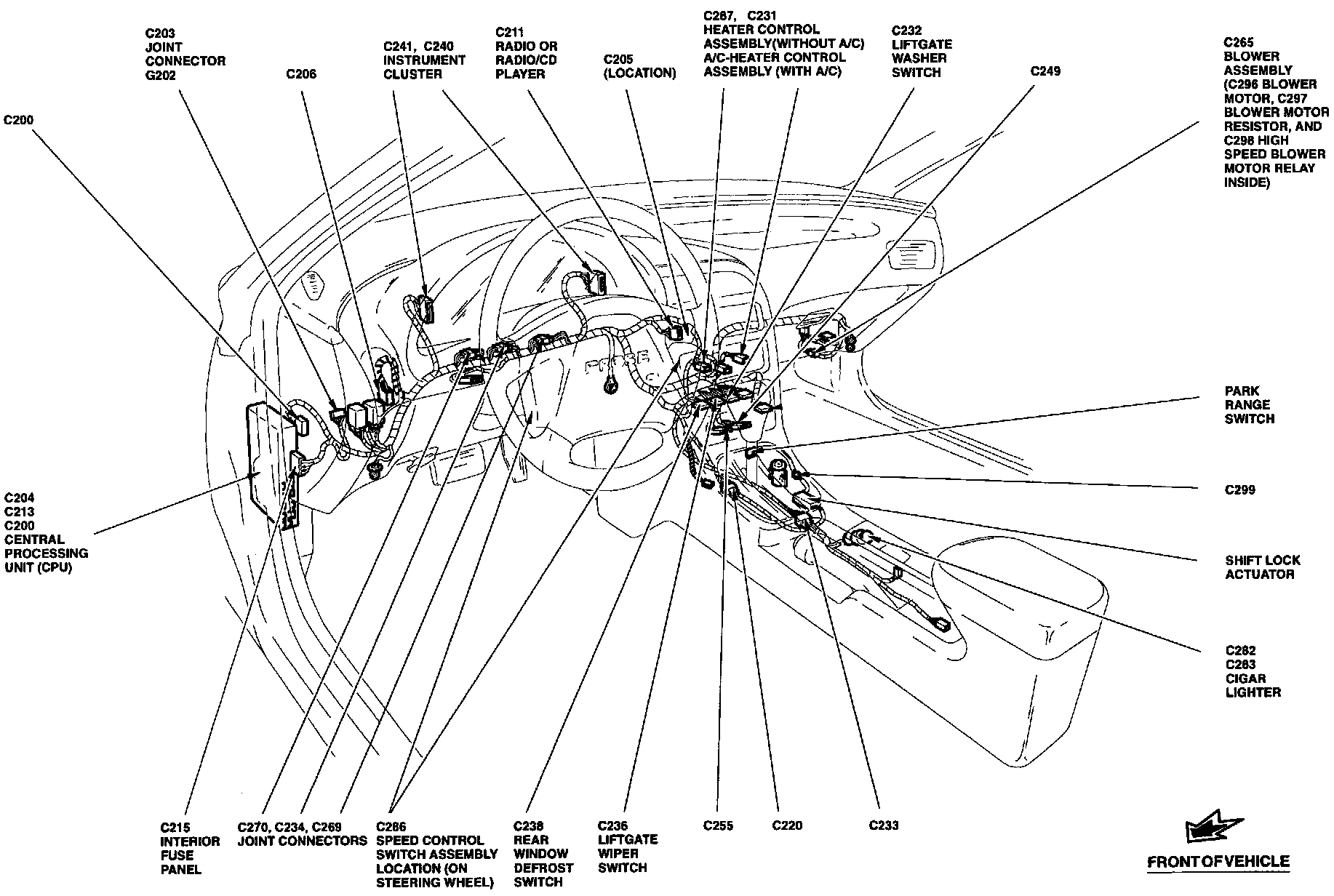

Behind Instrument Panel View:

A/C HEATER CONTROL ASSEMBLY
BLOWER ASSEMBLY
BLOWER MOTOR
BLOWER MOTOR RESISTOR
CENTRAL PROCESSING UNIT
CIGAR LIGHTER
HEATER CONTROL ASSEMBLY
HIGH SPEED BLOWER MOTOR RELAY
INSTRUMENT CLUSTER
INTERIOR FUSE PANEL
JOINT CONNECTORS
LIFTGATE WASHER SWITCH
LIFTGATE WIPER SWITCH
PARK RANGE SWITCH
RADIO
RADIO COMPACT DISC PLAYER
REAR WINDOW DEFROST SWITCH
SHIFT LOCK ACTUATOR
SPEED CONTROL SWITCH ASSEMBLY

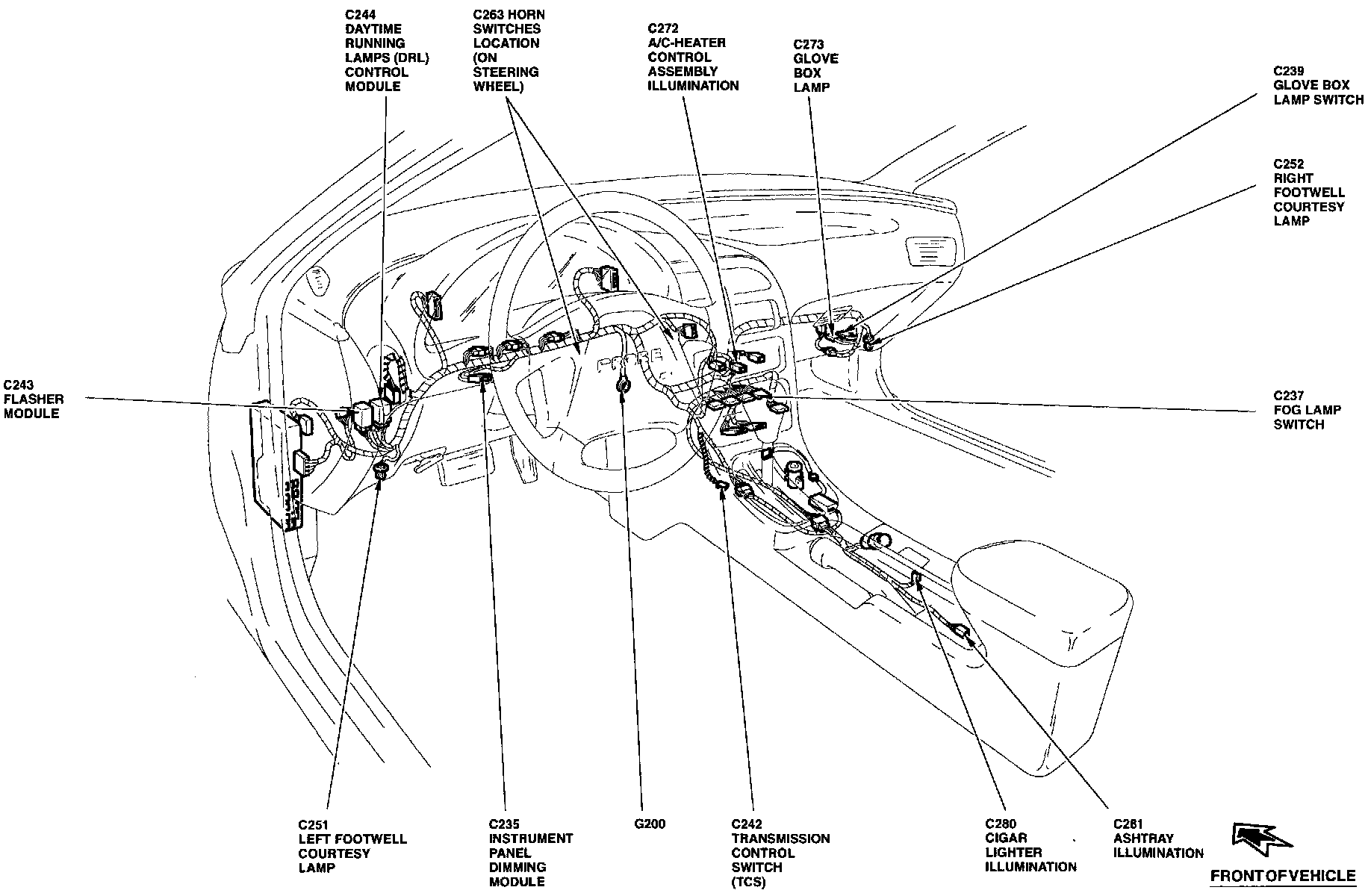

Behind Instrument Panel View:

A/C HEATER CONTROL ASSEMBLY ILLUMINATION
ASHTRAY ILLUMINATION
CIGAR LIGHTER ILLUMINATION
DAYTIME RUNNING LAMPS CONTROL MODULE
FLASHER MODULE
FOG LAMP SWITCH
GLOVE BOX LAMP
GLOVE BOX LAMP SWITCH
HORN SWITCHES
INSTRUMENT PANEL DIMMING MODULE
LEFT FOOTWELL COURTESY LAMP
RIGHT FOOTWELL COURTESY LAMP
TRANSMISSION CONTROL SWITCH
