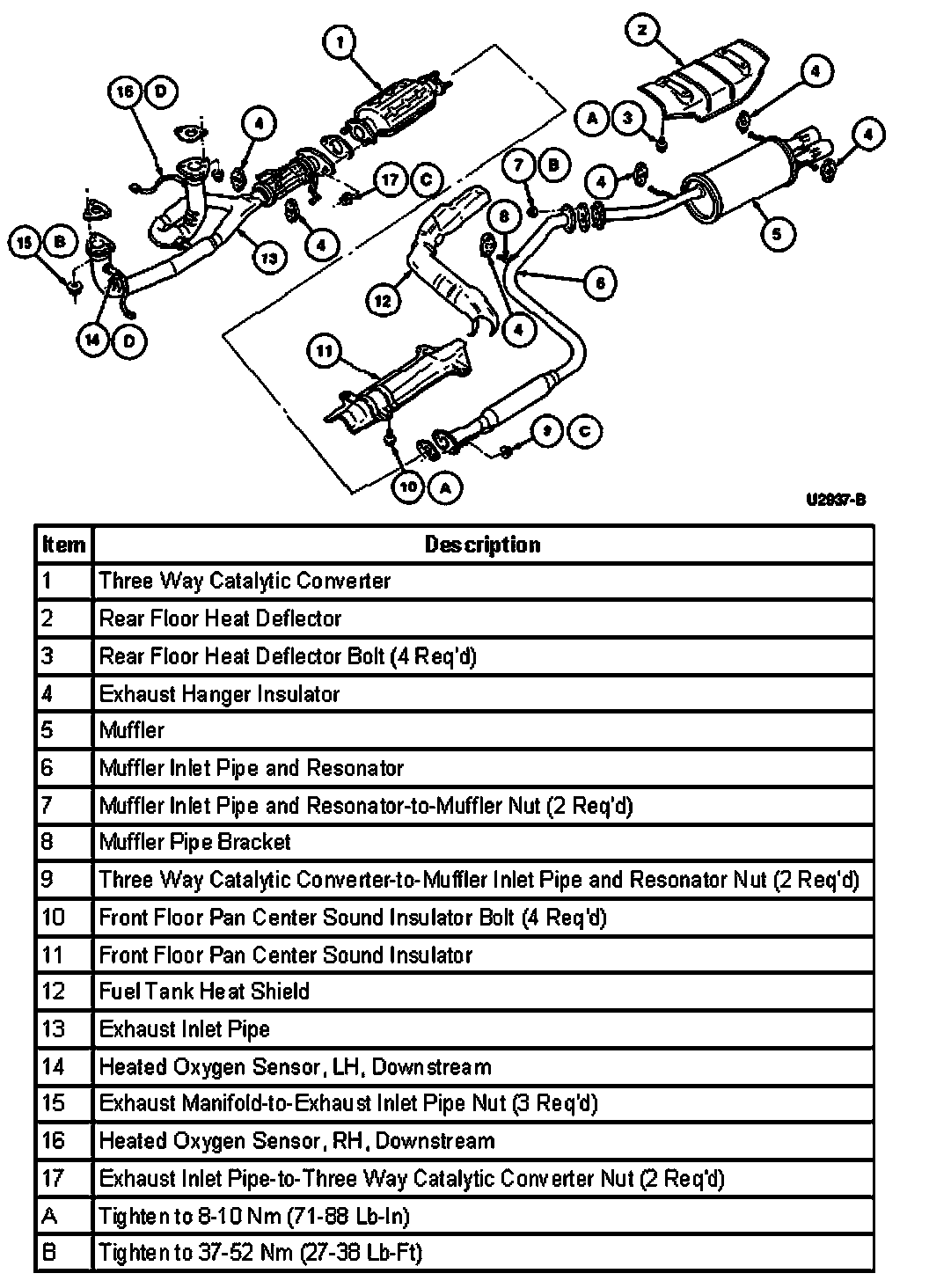

Heated Oxygen Sensor (HO2S) Locations
The two upstream heated oxygen sensors (HO2S) are mounted in each of the exhaust manifolds.

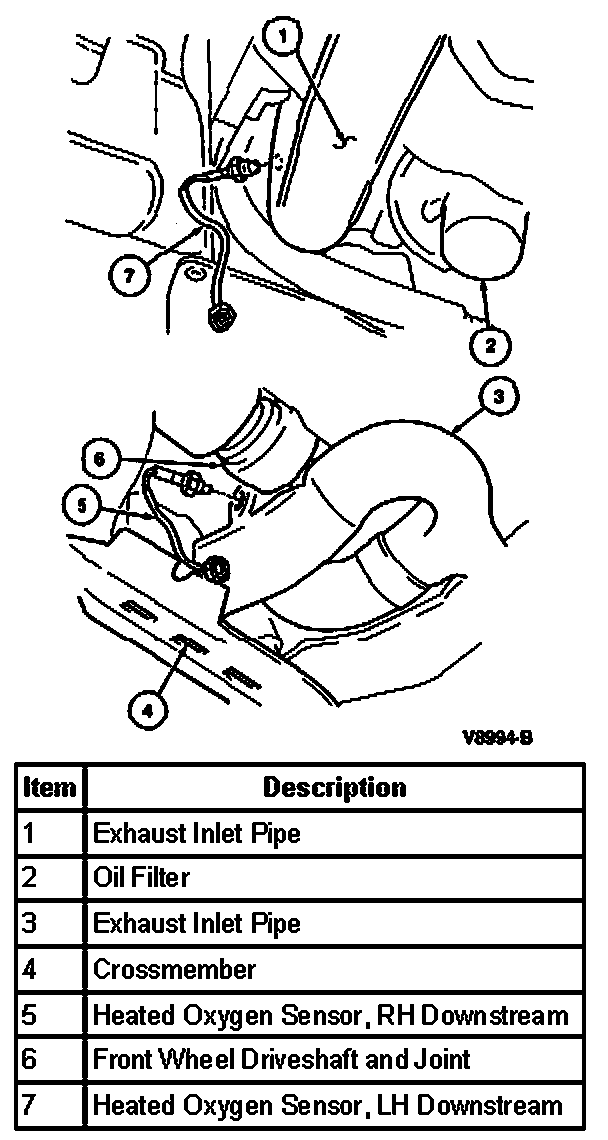

The two downstream heated oxygen sensors (HO2S) are mounted in both of the exhaust inlet pipes, just below the exhaust manifolds.
