EGR Valve: Testing and Inspection
1.
Clean dirt or other deposits from the
Exhaust Gas Recirculation (EGR) valve.
2.
Start the engine and run it at idle.
Testing EGR Valve:
3.

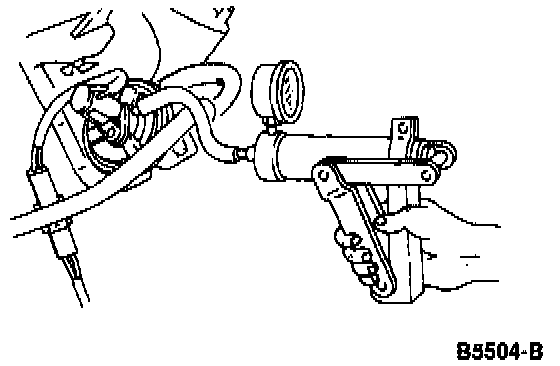

Connect a Rotunda Vacuum Tester 014-R1058 or equivalent as shown and apply vacuum.
4.
Verify that the engine runs roughly or stalls at more than
40-60 mm Hg (1.6-2.3 in Hg). 5.
If results are not as specified, replace the
EGR valve.
