Removal

Special Service Tool Required:
Camshaft Belt Tension Adjusting Tool

1. Remove spark plugs.

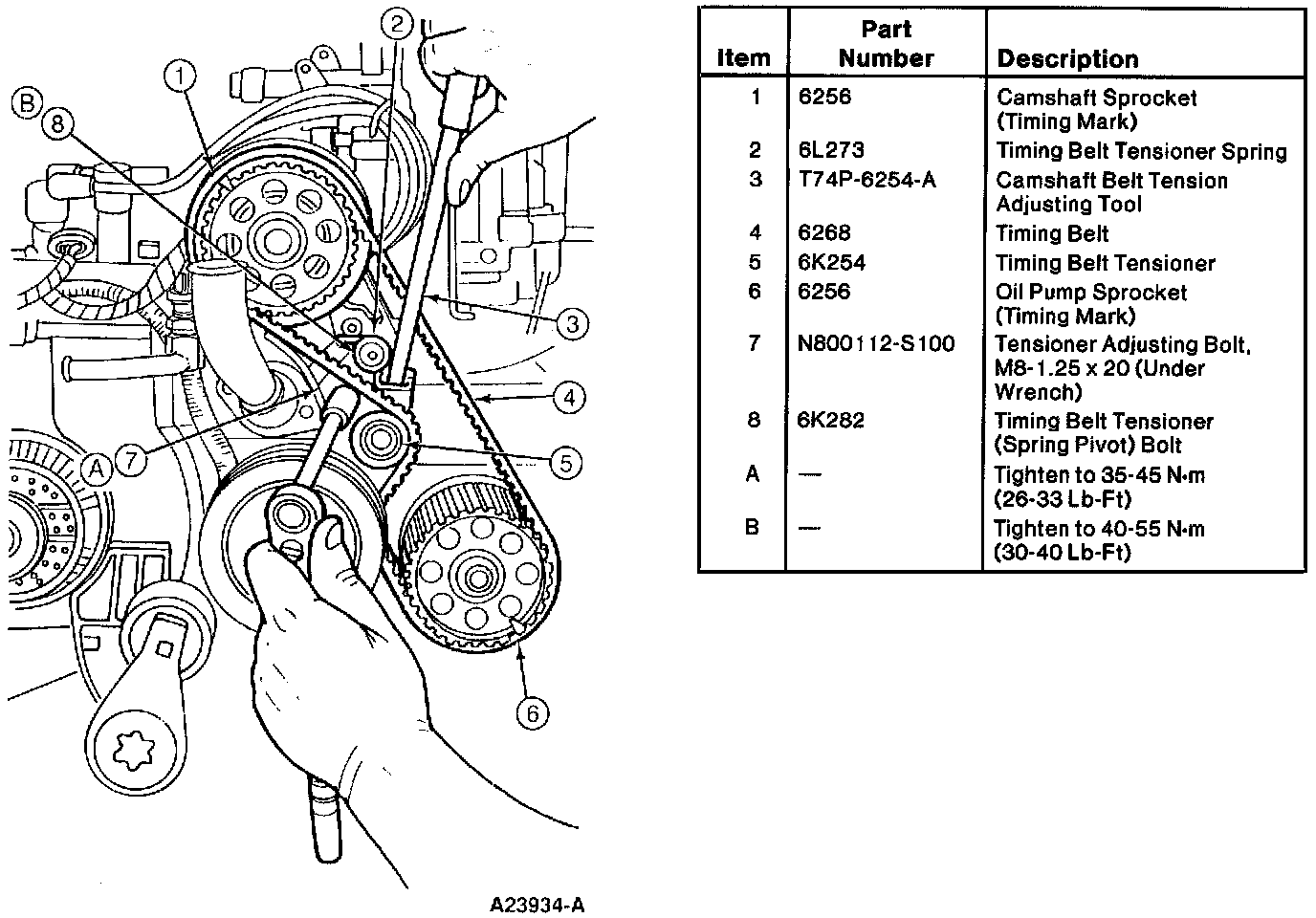

2. Align crankshaft so number one piston is at Top Dead Center (TDC) as indicated by timing marks. Refer to illustration.
3. Remove outer timing belt cover.

CAUTION: If you attempt to remove timing belt or adjust tension without loosening both timing belt tensioner adjusting bolt and spring pivot bolt, you will break Camshaft Belt Tension Adjusting Tool when you attempt to relieve tension on belt.

4. Loosen timing belt spring pivot bolt. Do not remove.






5. Hold tensioner with Camshaft Belt Tension Adjusting Tool.
6. While holding tensioner, loosen adjusting bolt and gradually release spring tension.
7. Using adjusting tool, ROTATE tensioner, against spring pressure, as far CLOCKWISE as possible. While holding, tighten adjusting bolt to hold tensioner AWAY from belt.
8. Remove timing belt.
