Electrical Diagrams

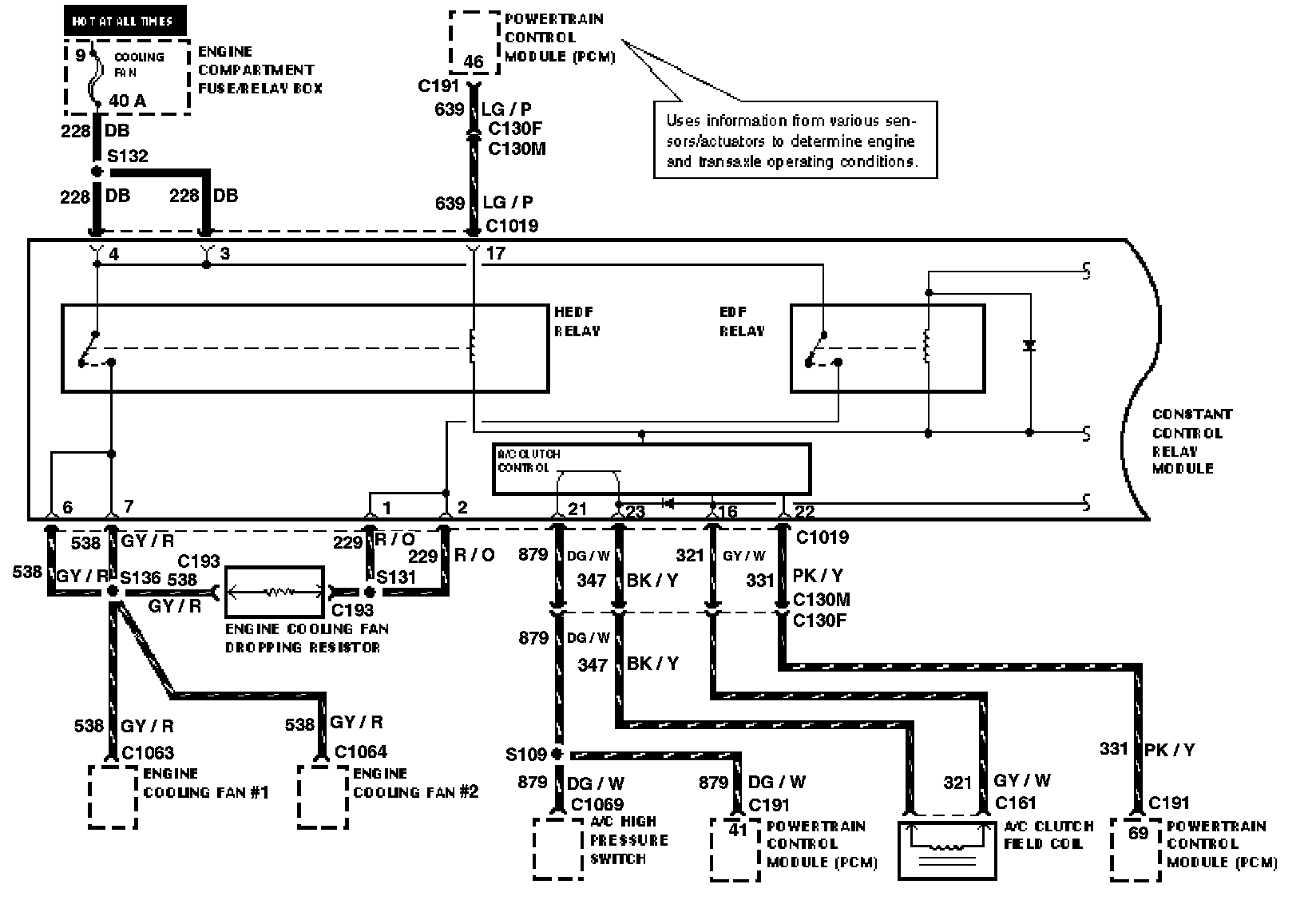

A/C CLUTCH CONTROL
A/C CLUTCH FIELD COIL

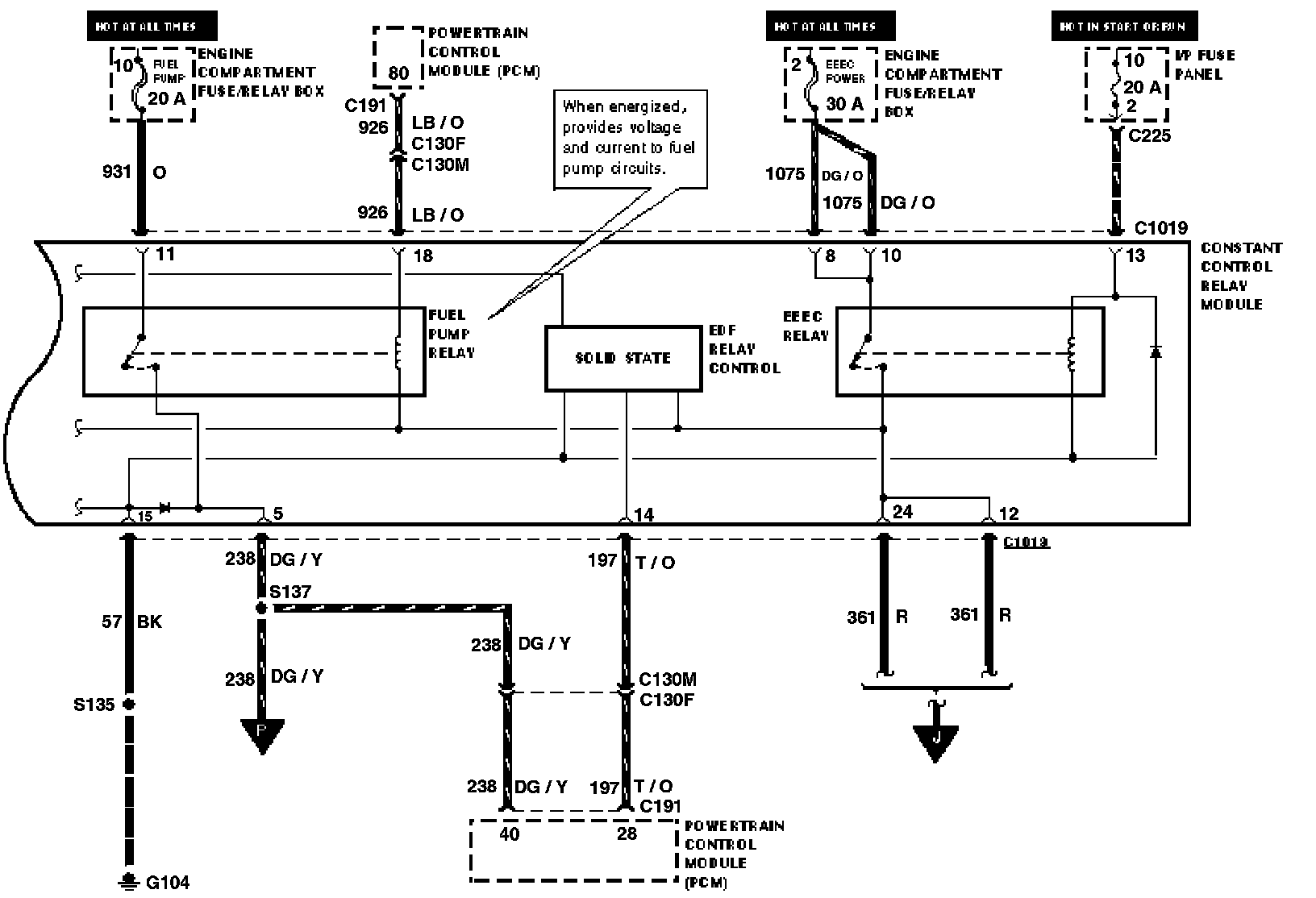

CONSTANT CONTROL RELAY MODULE
EDF RELAY
ENGINE COOLING FAN DROPPING RESISTOR
HEDF RELAY

CONSTANT CONTROL RELAY MODULE
EDF RELAY CONTROL
EEEC RELAY
FUEL PUMP RELAY

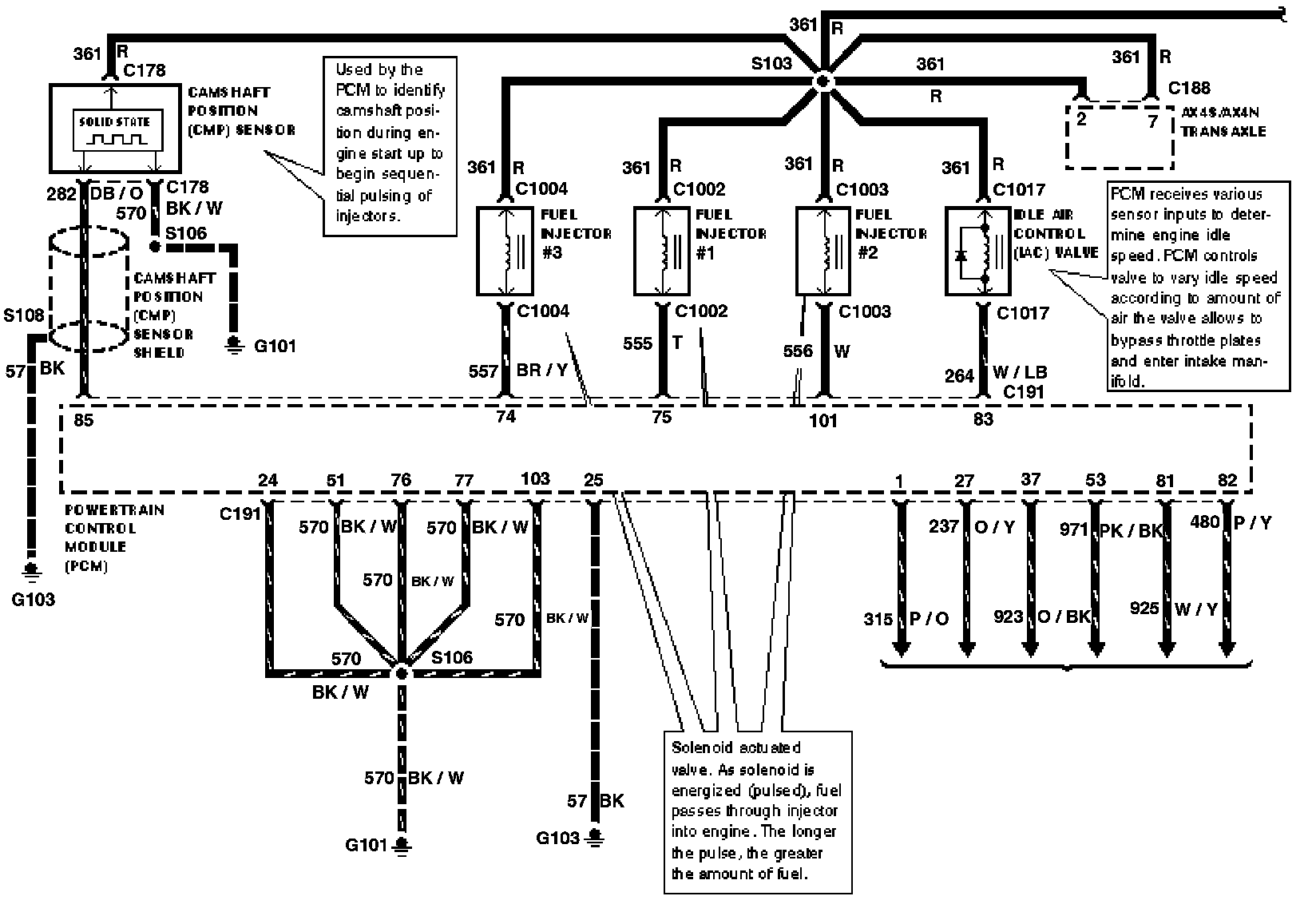

CAMSHAFT POSITION SENSOR
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
IDLE AIR CONTROL VALVE

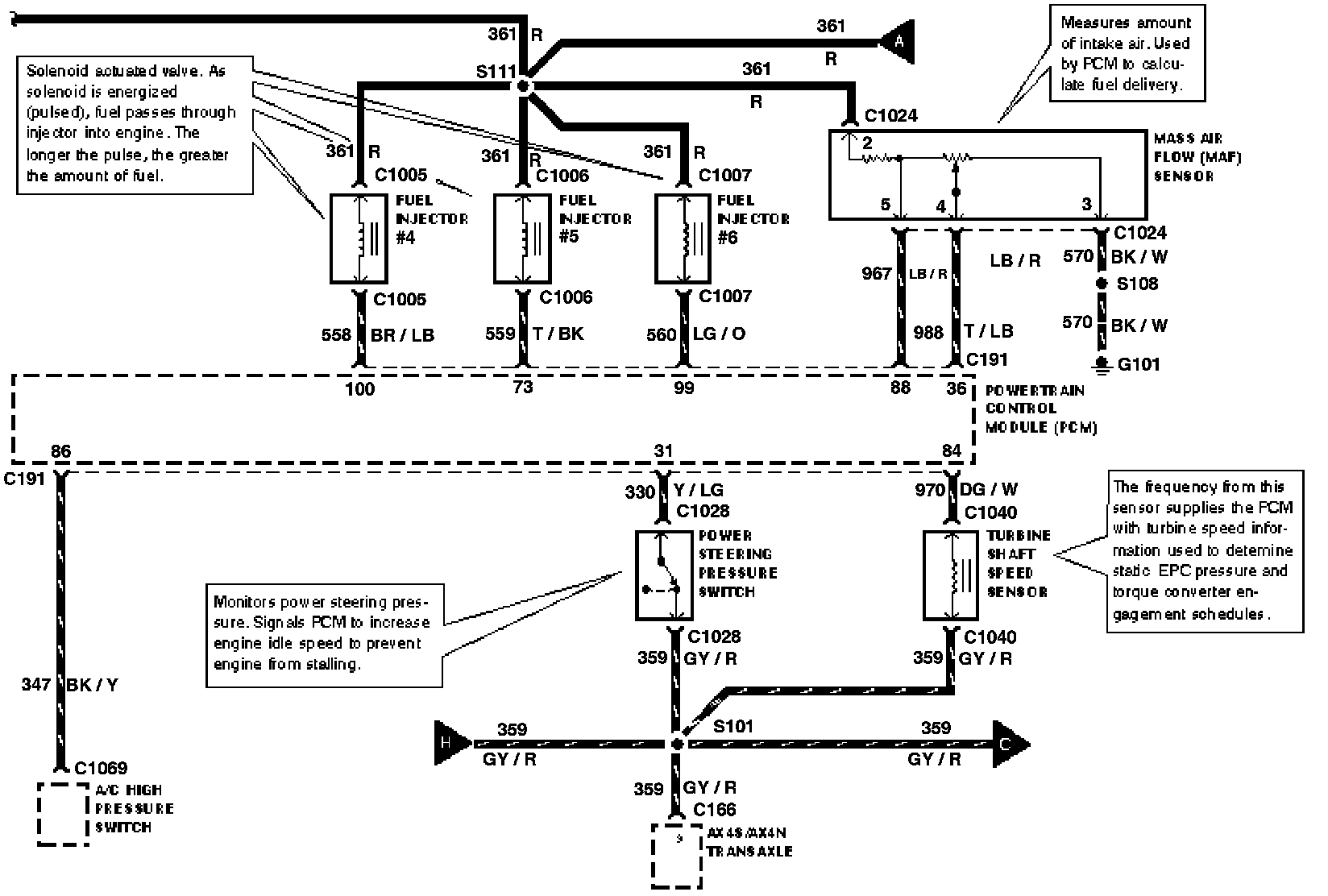

FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
MASS AIR FLOW SENSOR
POWER STEERING PRESSURE SWITCH
TURBINE SHAFT SPEED SENSOR

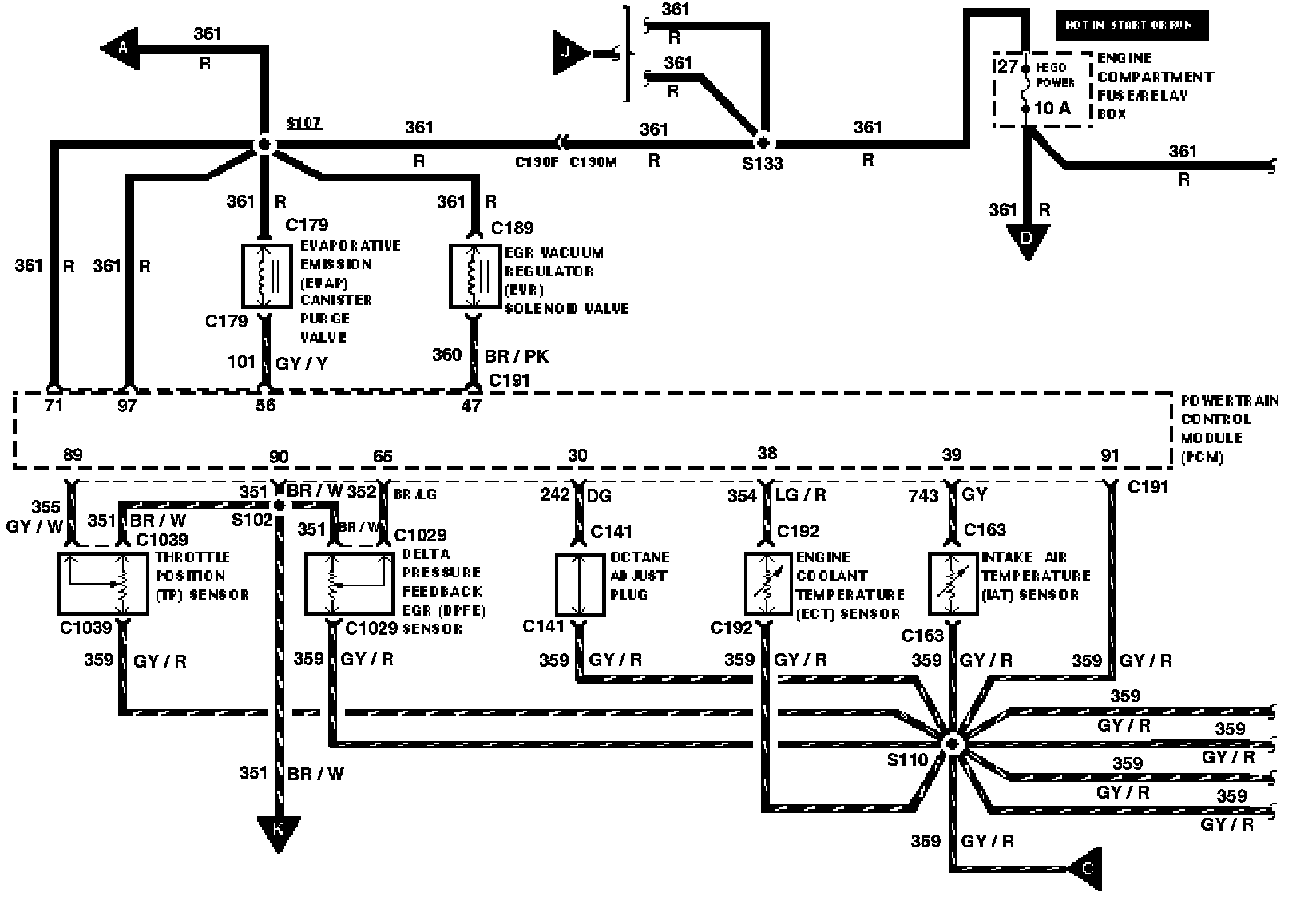

DELTA PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID VALVE
ENGINE COOLANT TEMPERATURE SENSOR
EVAPORATIVE EMISSION CANISTER PURGE VALVE
INTAKE AIR TEMPERATURE SENSOR
OCTANE ADJUST PLUG
THROTTLE POSITION SENSOR

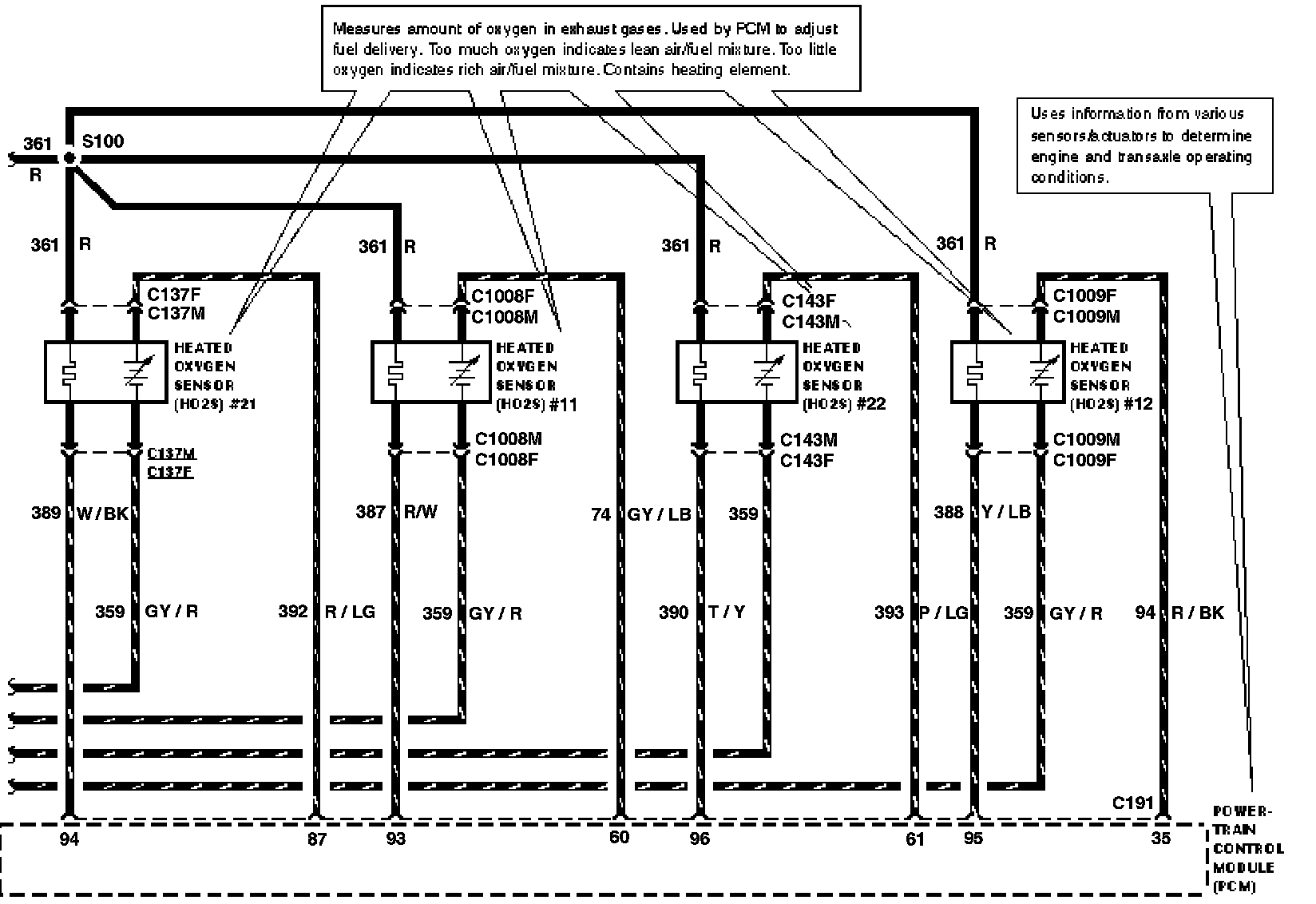

HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #12
HEATED OXYGEN SENSOR #21
HEATED OXYGEN SENSOR #22

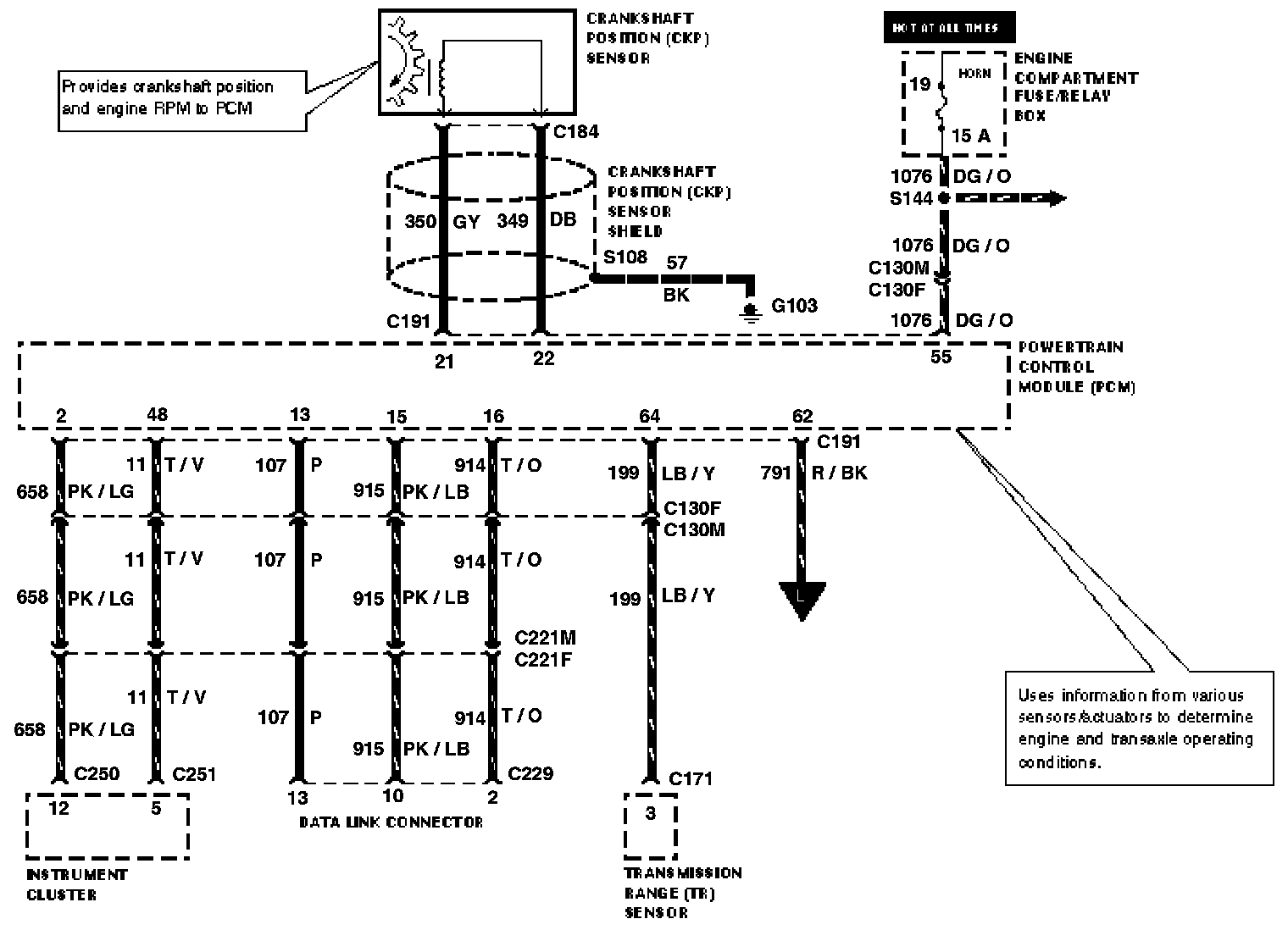

CRANKSHAFT POSITION SENSOR

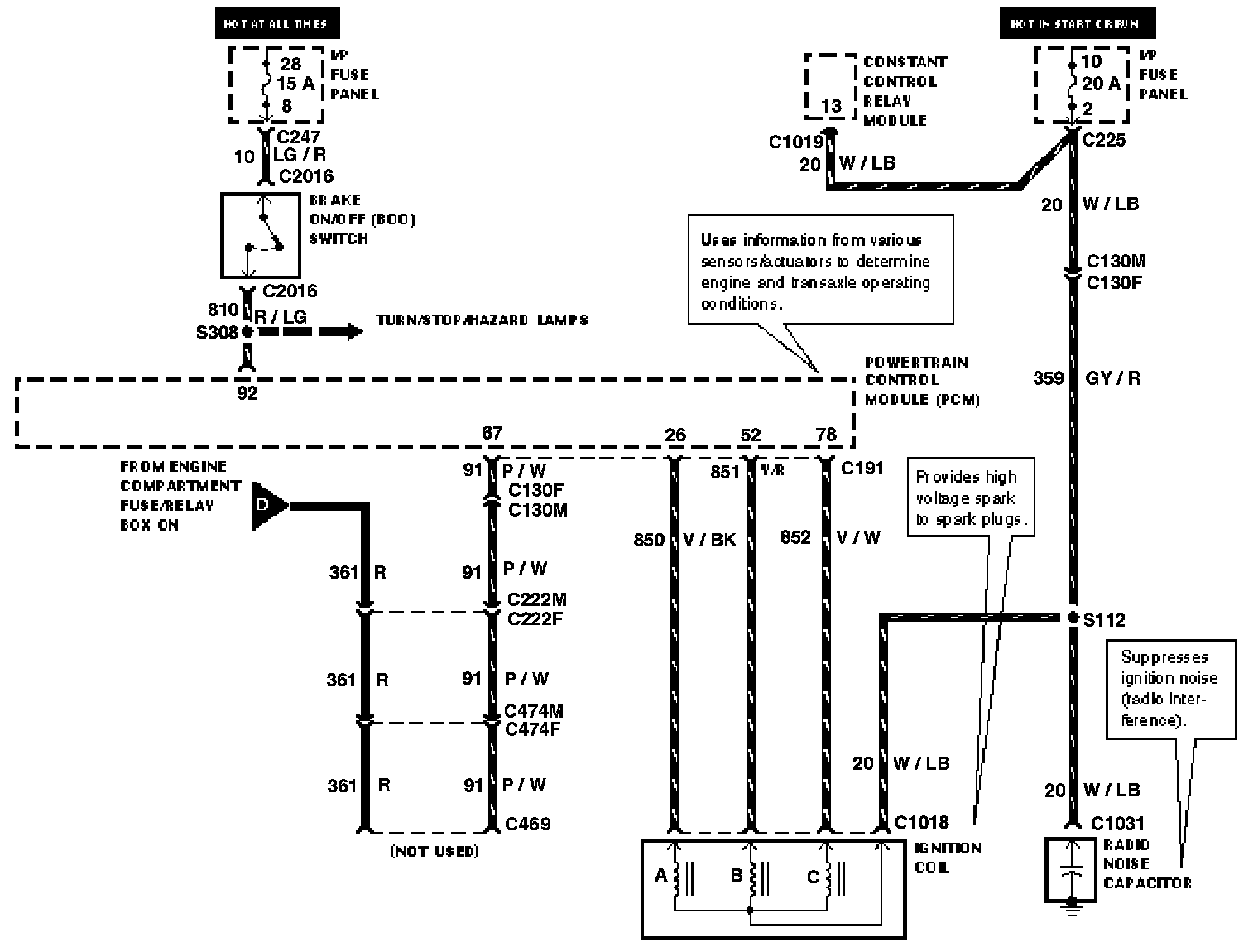

BRAKE ON/OFF SWITCH
CANISTER VENT
IGNITION COIL
RADIO NOISE CAPACITOR

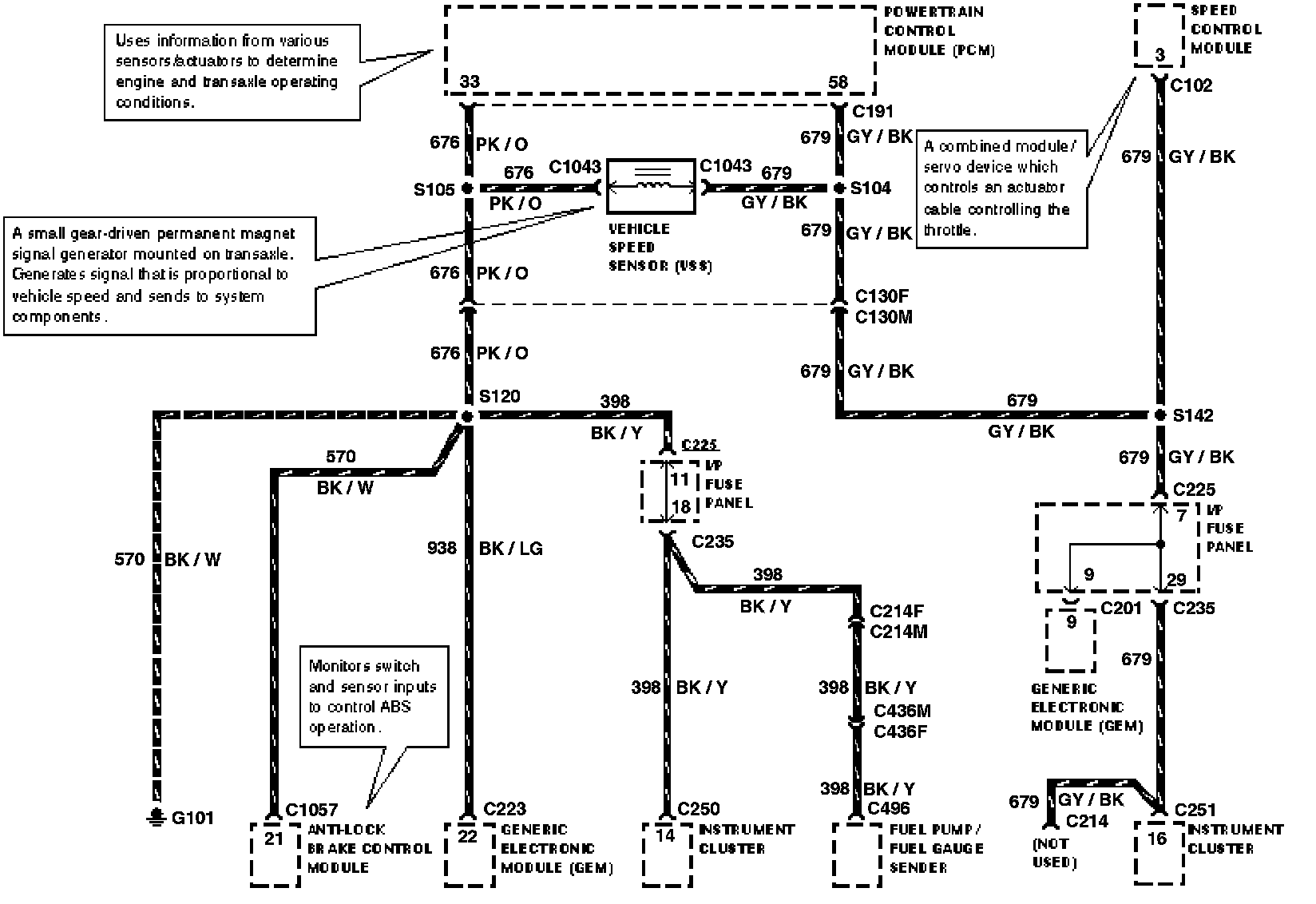

VEHICLE SPEED SENSOR

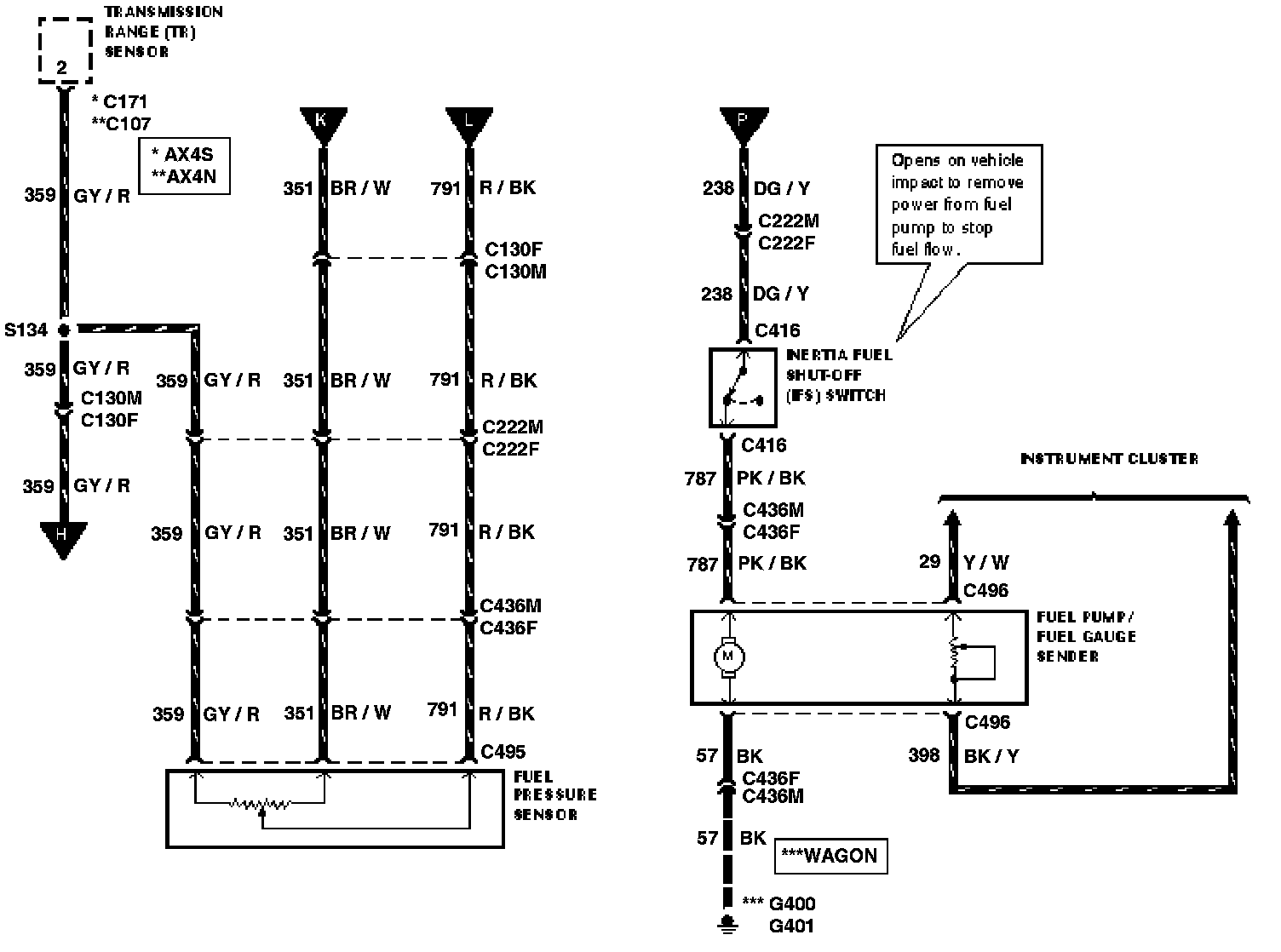

FUEL PRESSURE SENSOR
FUEL PUMP/FUEL GAUGE SENDER
INERTIA FUEL SHUT-OFF SWITCH
