Fuel Delivery and Air Induction: Locations

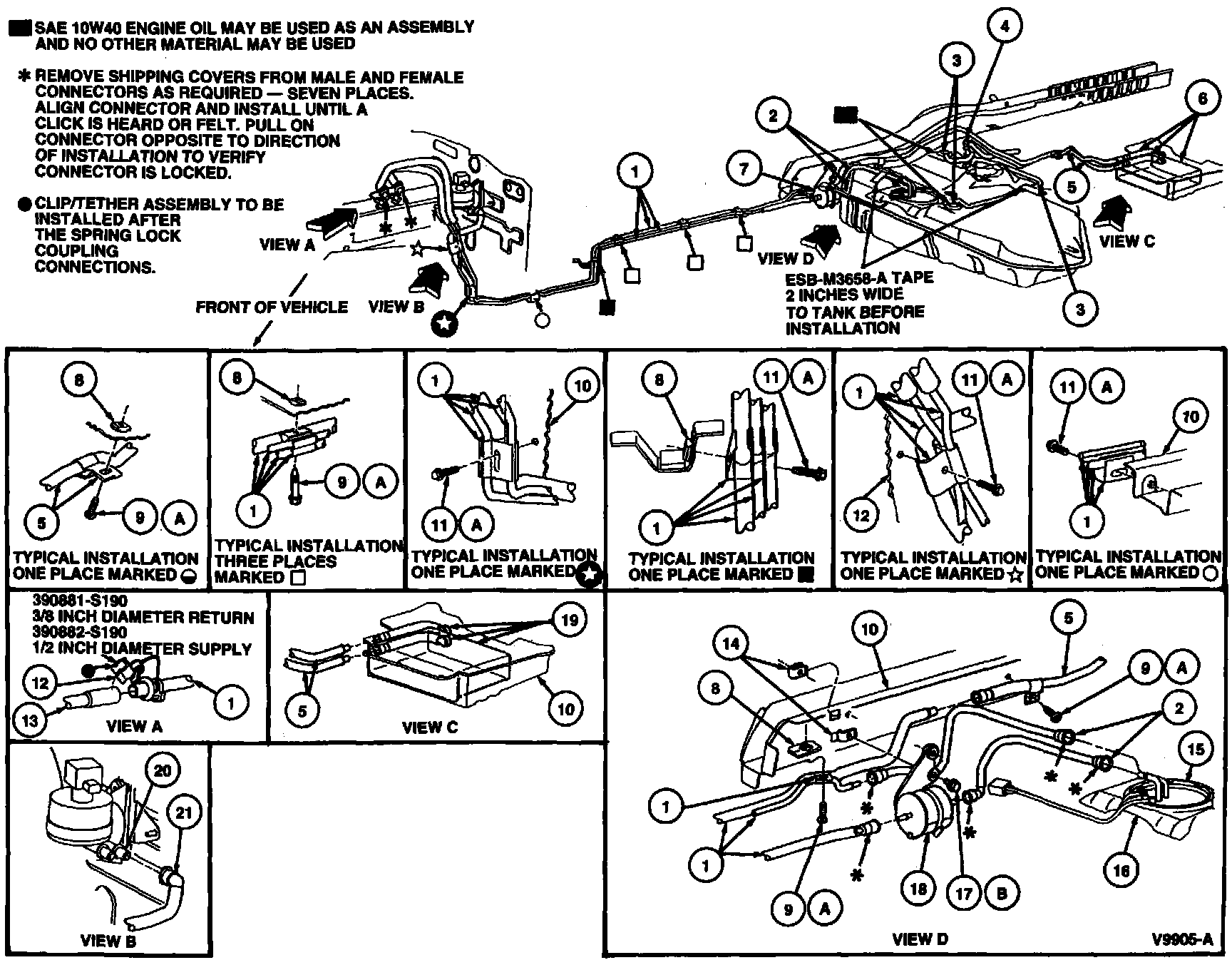

Fuel System Components (Part 1 Of 2):

1. Fuel and Vapor Return Tube
2. Rear Fuel Supply Return and Vapor Tube
3. Evaporative Emission Valve
4. Evaporative Emission Tube Shut Off Valve
5. Fuel Tank Vent Tube
6. Evaporative Emission Canister
7. Fuel Filter and Base
8. Pierce Nut
9. Screw
10. Body
11. Screw
12. Clip/Tether
13. Fuel Injection Supply Manifold (Fuel Rail)
14. U-Nut
15. Fuel Pump Module
16. Fuel Tank
17. Screw
18. Fuel Filter and Base
19. Evaporative Emission Tube
20. EVAP Canister Purge Valve
21. Fuel Vapor Canister Purge Outlet Tube
A. Tighten to 5-7 Nm (45-61 lb in)
B. Tighten to 9-12 Nm (80-106 lb in)
