Vehicle Certification Label Codes

Vehicle Type Codes
- The vehicle data appears on the certification label on the second and third lines following the vehicle identification number.
- The code set (two numbers, several letters, or a number and letter) above COLOR identify the exterior paint color (two sets of codes designate a two-tone).
- The numbers under WB designate the wheelbase in inches.
- The letter or number under BRAKE TYPE designate the brake type within a series.
- The letters and/or numeral under BODY designate the interior trim, seat and body type.
- The transaxle installed in the vehicle is identified under TRANS by an alphabetical code.
- A letter and a number or two numbers under AXLE identify the rear axle ratio.
- The letters and/or numerals under TAPE designate the external body side tape stripe code.
- The spring usage codes for the vehicle are identified under SPRING.

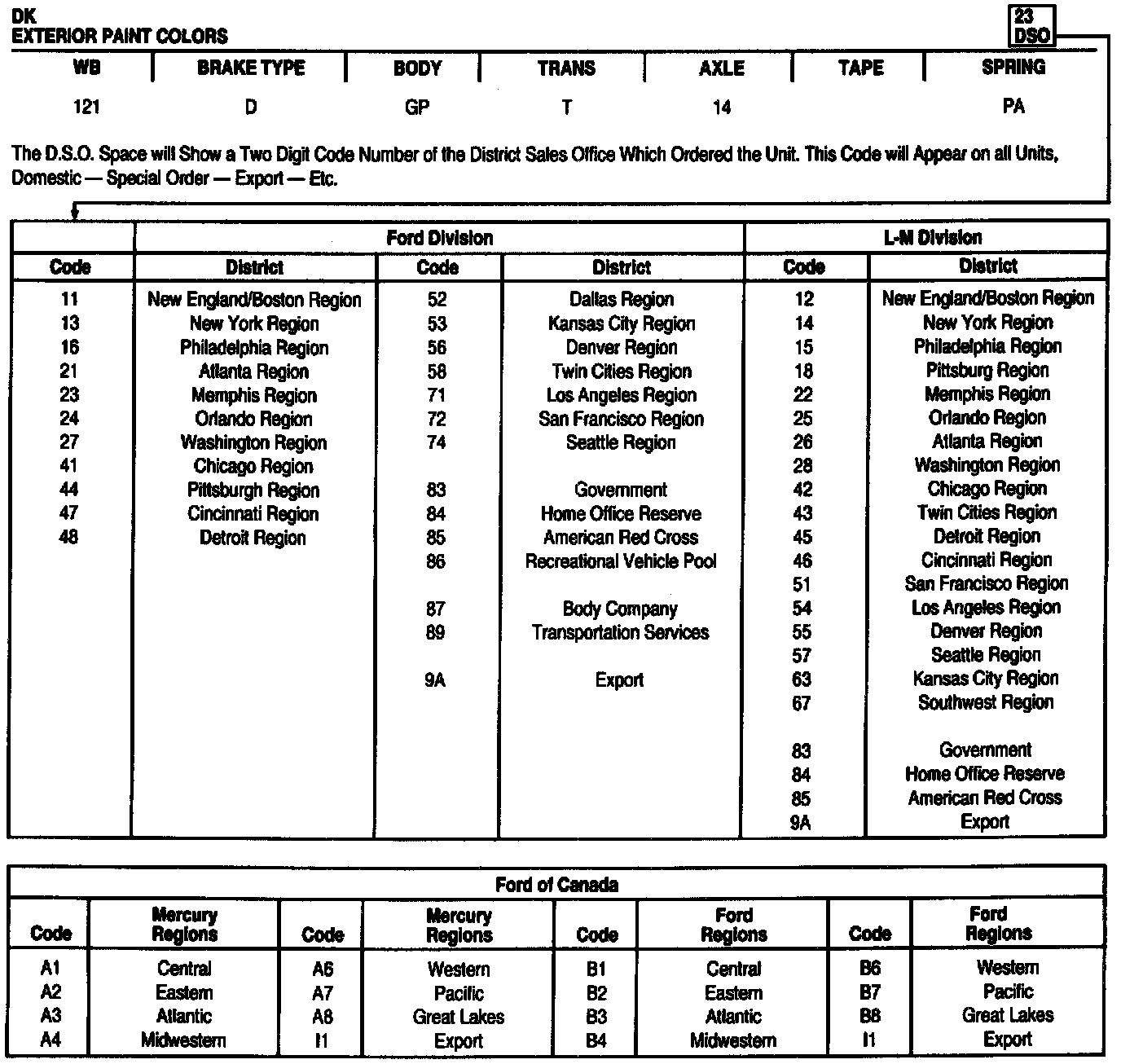

A two-digit number is stamped above DSO to identity the district which ordered the vehicle. If the vehicle is built to special order (Domestic Special Order, Foreign Special Order, Limited Production Option, or other special order), the complete order number will also appear above DSO. The charts illustrate the vehicle codes.







Exterior Paint Color Codes







Body Type Codes







Brake Type







Axle Ratio Codes







Transaxle Codes







Suspension Spring Codes







District Codes
