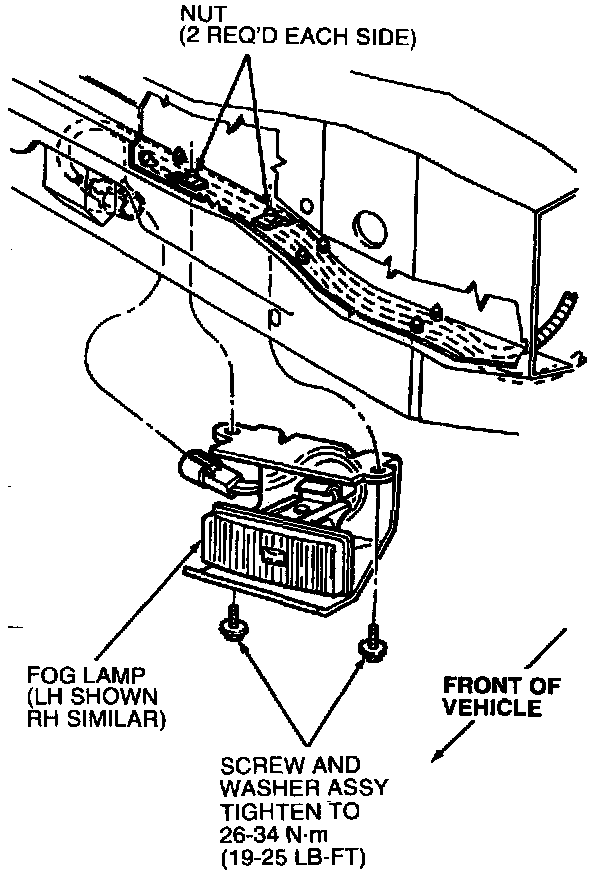

Fog Lamp Assembly
1.
Remove the screw and washer assemblies retaining the fog lamp and bracket assembly to the front bumper.
2.
Remove the fog lamp and bracket assembly by pulling out through the bumper fascia opening.
3.
Disconnect electrical wiring connector from fog lamp.
4.
For installation, reverse Removal procedure. Tighten screws to
26-34 Nm (19-25 lb-ft).
