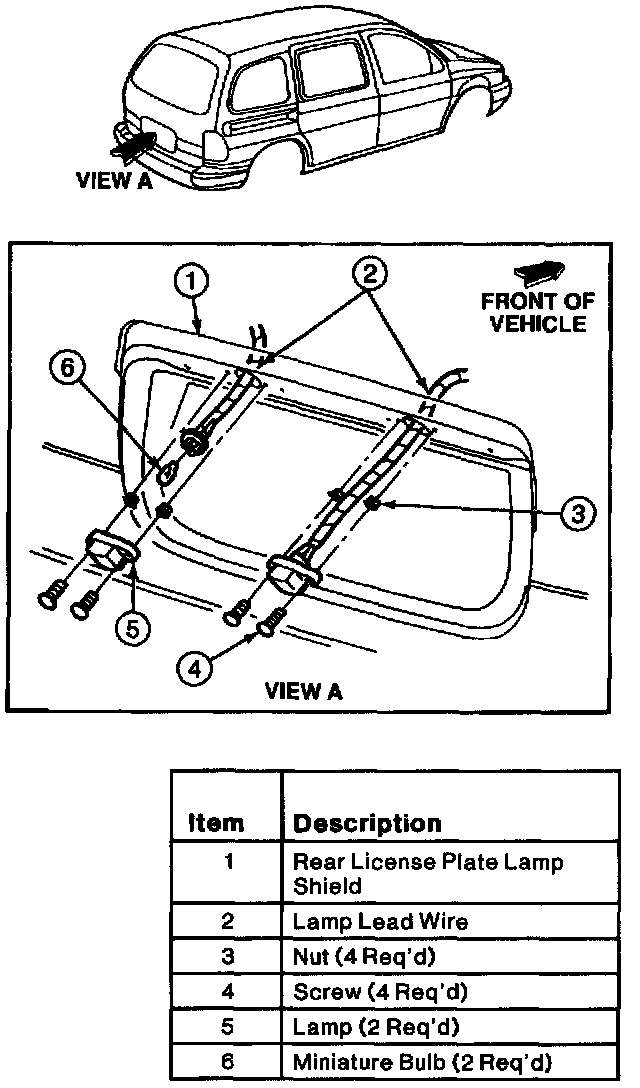

License Plate Lamp: Service and Repair
REMOVAL 1.
Remove two screws retaining the lamp to the rear
license plate lamp shield.
2.
Rotate socket one quarter turn from backside of lamp and remove the miniature bulb.
INSTALLATION 1.
Install new miniature bulb into socket.
2.
Install socket in lamp.
3.
Secure lamp to rear
license plate lamp shield with two screws and tighten to
2 Nm (18 lb-in).
