Map Light: Description and Operation

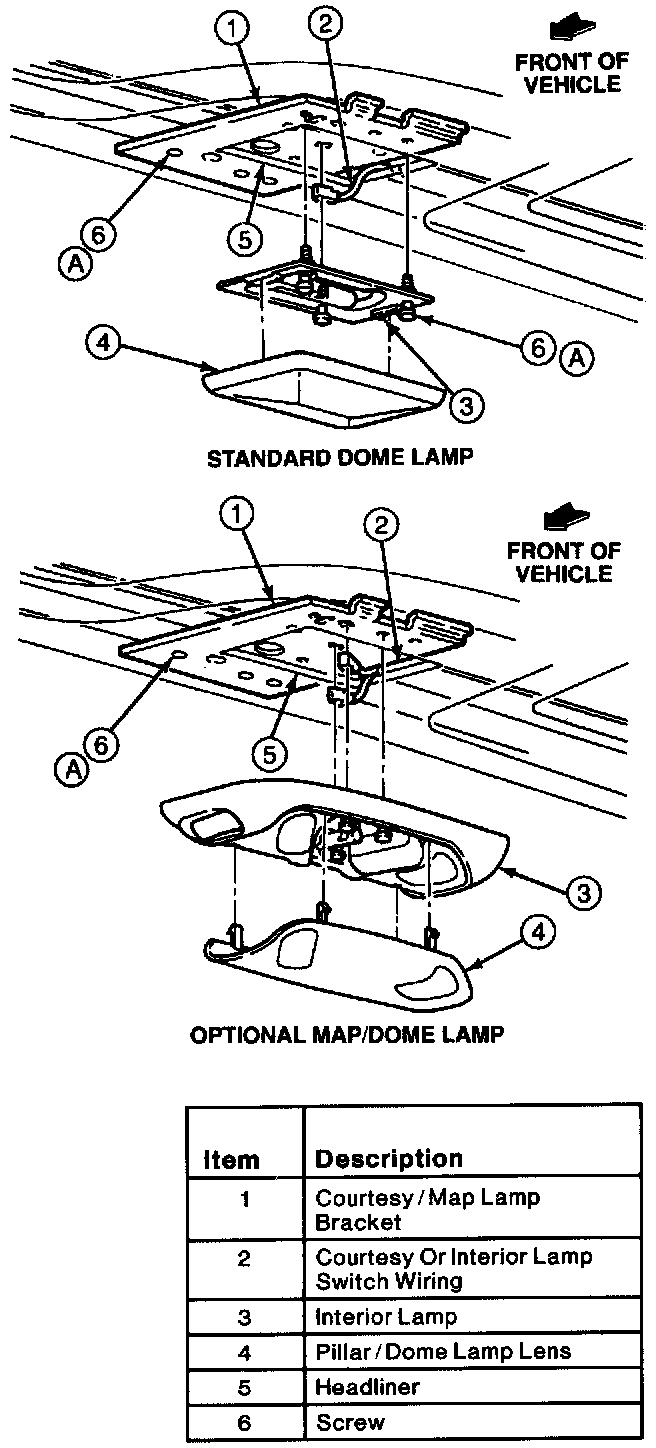

The two map lamps are located on each side of the dome/map lamp housing.
-
The map lamps are operated independently of the
dome lamp by two switches located on lamp housing.
-
The
dome lamp is illuminated by turning the thumbwheel rheostat to the detented UP position.
-
The
dome lamp also illuminates when the doors are opened.
