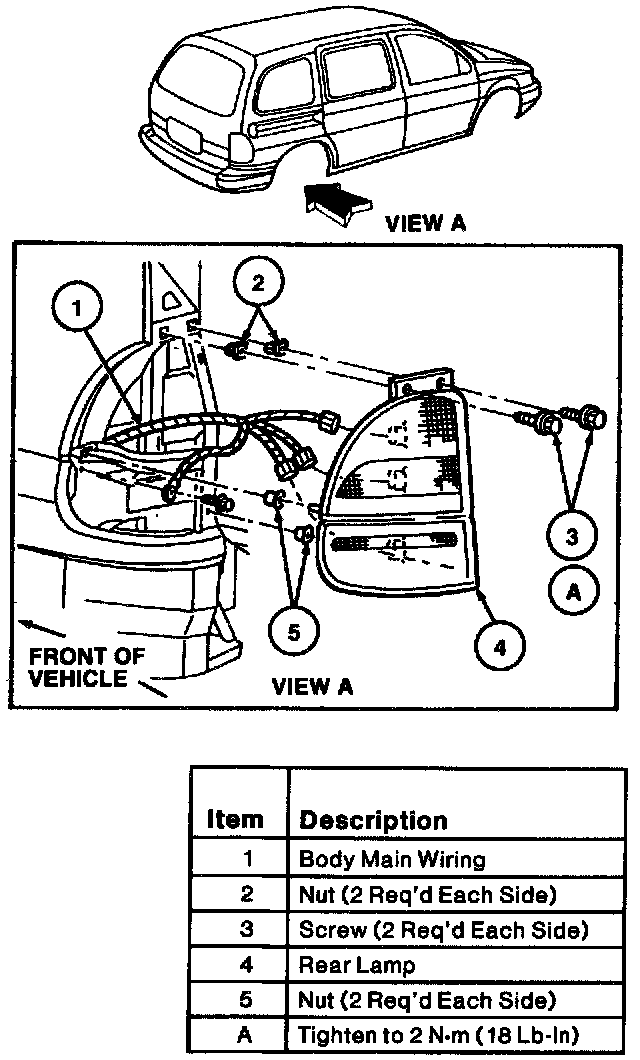

Rear Lamp Assembly

REMOVAL
1. Remove two screws retaining rear lamp to vehicle.
2. Remove rear lamp, grasping outboard and inboard edges of lamp and prying lamp out at a 45-degree angle at lower outboard edge of main groove in lamp. (This may require rocking of assembly to release pins at outboard edge of lamp.)
3. Remove miniature bulb.

INSTALLATION
1. Install miniature bulb.
2. Install sockets to rear lamp and position rear lamp to vehicle.
3. Locate pins in attachment holes.
4. Install retaining screws and tighten to 2 Nm (18 lb-in).
