Floor Jack

WARNING: TO PREVENT SUDDEN VEHICLE MOVEMENT, TURN OFF AIR SUSPENSION SWITCH PRIOR TO JACKING, HOISTING OR TOWING VEHICLE.

CAUTION: The service jack provided with the vehicle is only intended to be used in an emergency for changing a deflated tire. Never use the service jack to hoist the vehicle for any other service. Refer to the Owner Guide when using the jack supplied with the vehicle.

NOTE: When using the service jack, the air suspension service switch must be turned to the OFF position.

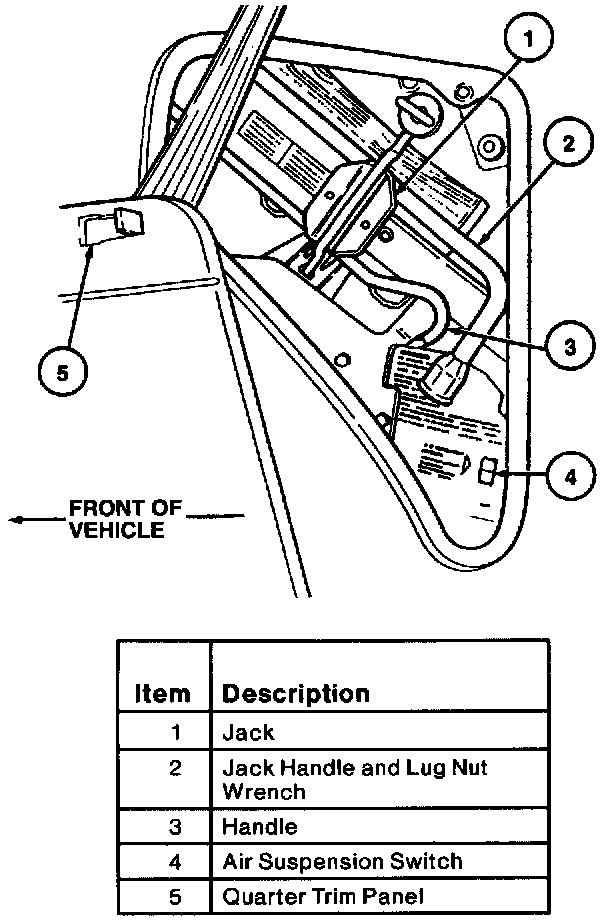

The service jack and jack wrench are located behind the rear trim panel on the passenger side.

Lift Points:

When using a floor jack, raise the front of the vehicle by positioning a floor jack under the hoist contact point. The rear may be lifted by positioning a floor jack under either rear suspension body bracket hoist contact point.
