PCV Valve Hose: Service and Repair

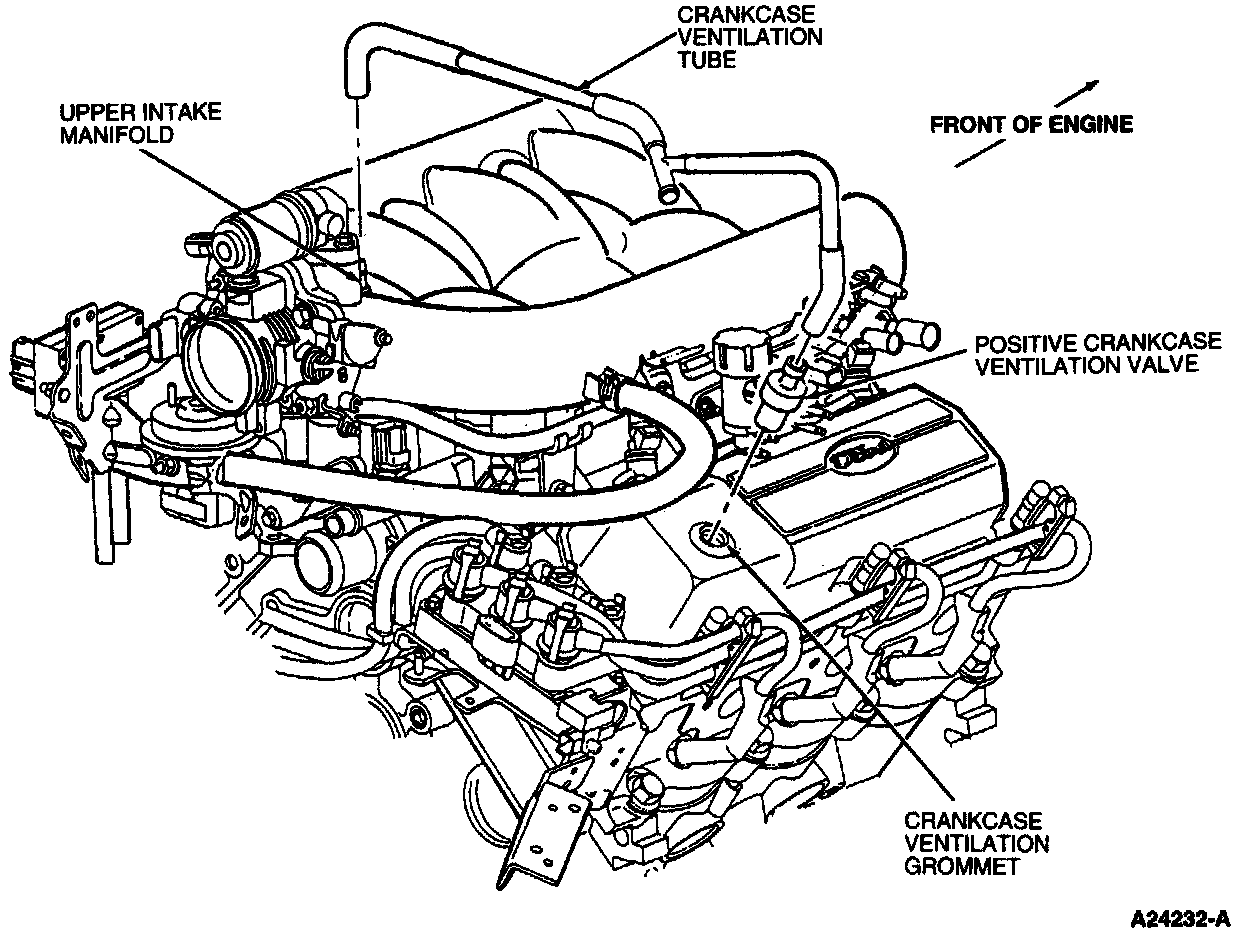

PCV Hoses-3.8L Engine:
REMOVAL and INSTALLATION 1.
Disconnect crankcase ventilation tube from upper intake manifold.
2.
Disconnect crankcase ventilation tube from
positive crankcase ventilation valve (PCV valve) and remove from vehicle.
3.
Inspect crankcase ventilation tube and hoses for deterioration. Replace if necessary.
4.
To install, reverse removal procedure.
