Engine Views

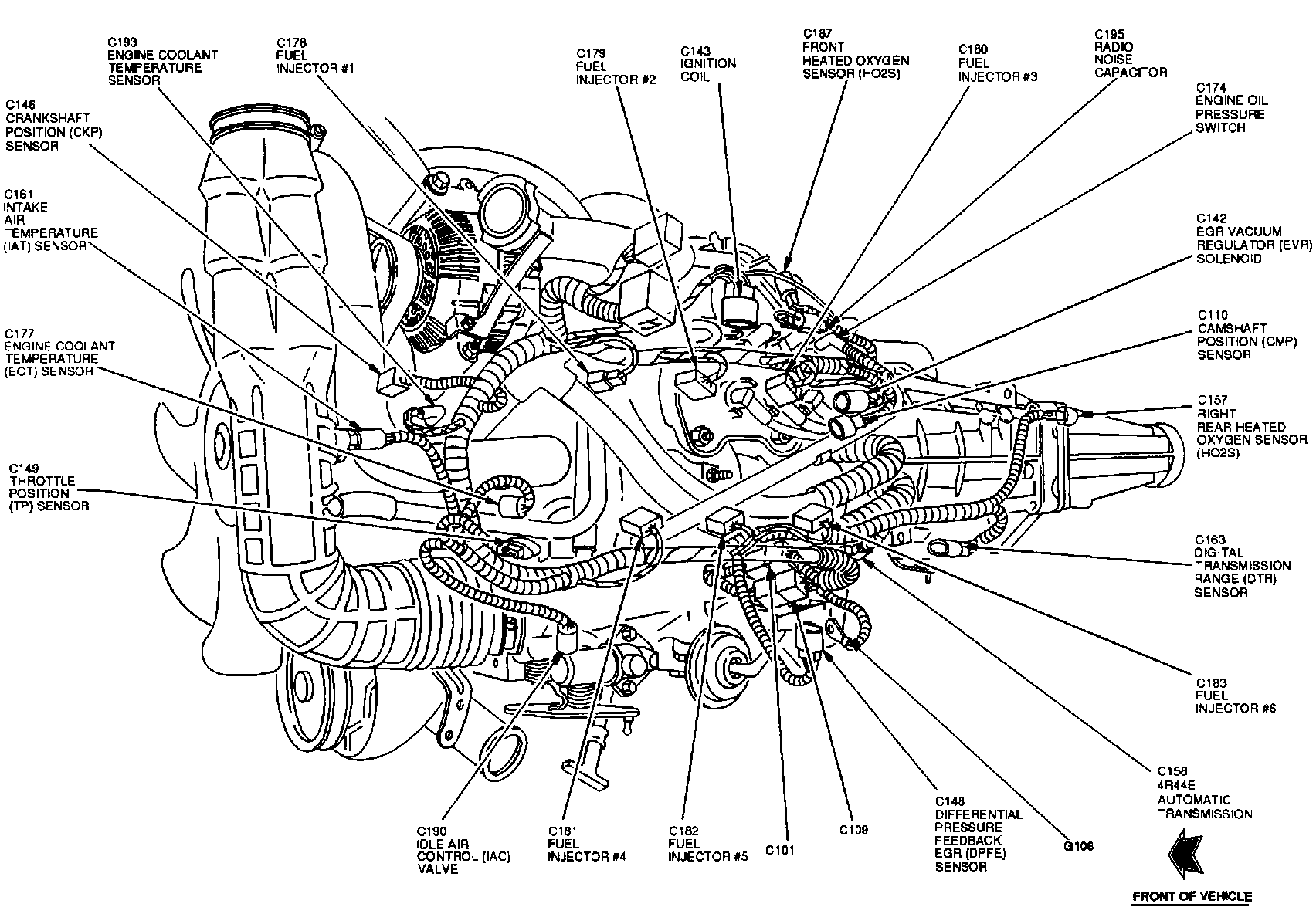

Top View:





4R44E AUTOMATIC TRANSMISSION
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
DIGITAL TRANSMISSION RANGE SENSOR
EGR VACUUM REGULATOR SOLENOID
ENGINE COOLANT TEMPERATURE SENSOR
ENGINE OIL PRESSURE SWITCH
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
FUEL INJECTOR #6
HEATED OXYGEN SENSOR
IDLE AIR CONTROL VALVE
IGNITION COIL
INTAKE AIR TEMPERATURE SENSOR
RADIO NOISE CAPACITOR
RIGHT REAR HEATED OXYGEN SENSOR
THROTTLE POSITION SENSOR
