Power Window Switch: Service and Repair

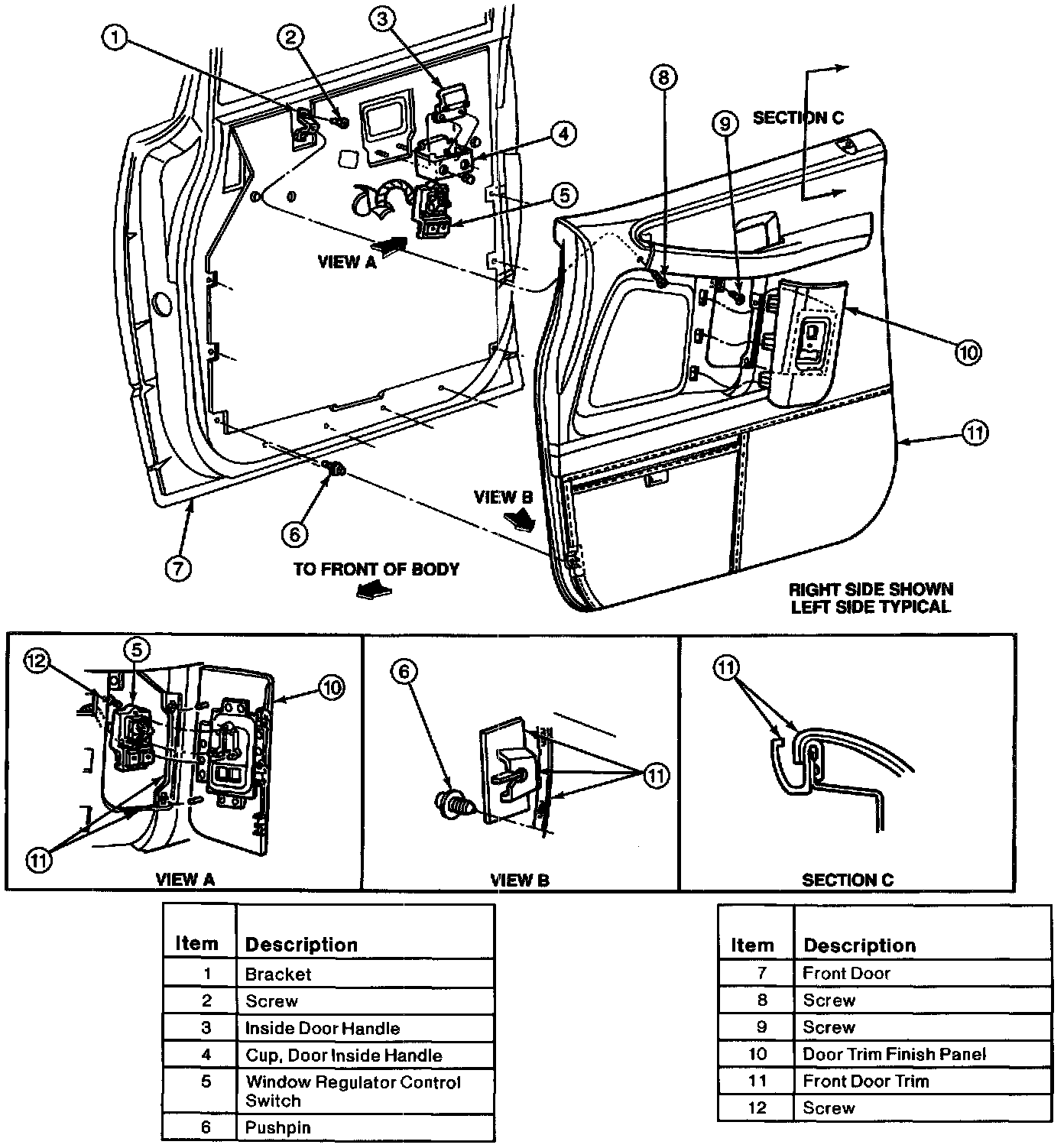

NOTE: The window regulator control switches are located on the front door trim panel.





REMOVAL
1. Remove window regulator switch plate by carefully prying up with a flat-bladed tool.
2. Remove retaining nuts holding front window regulator wiring to the back of the window regulator switch plate. Using a thin-bladed screwdriver, carefully pry the window regulator control switch from the connector.

INSTALLATION
For installation, follow removal procedures in reverse order.
