Windows: Service and Repair

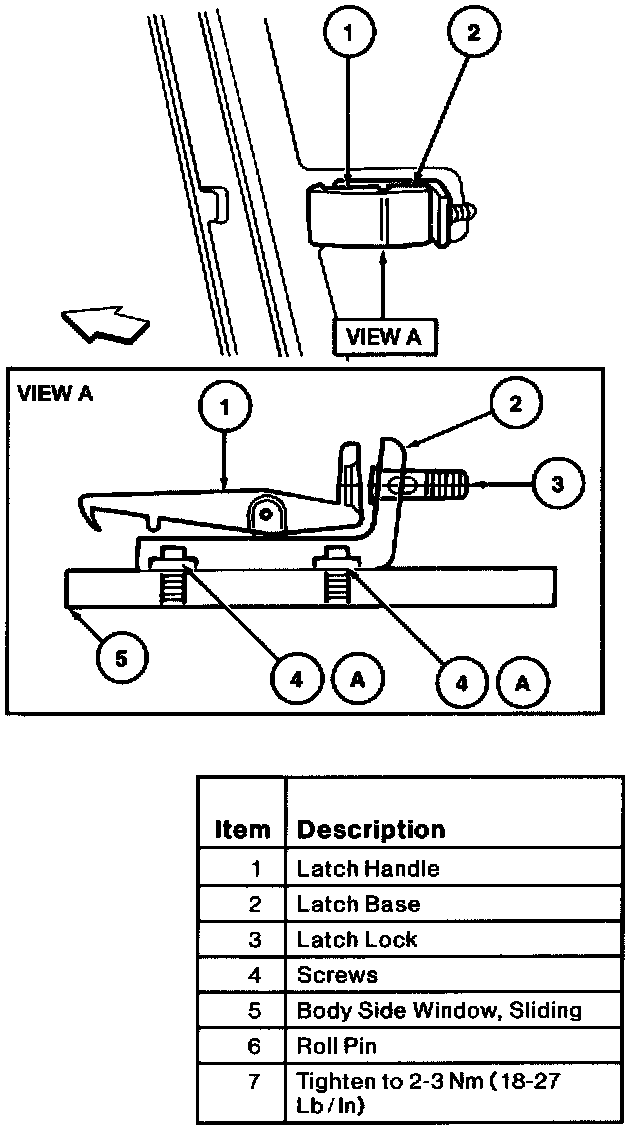

REMOVAL
1. Open the sliding body side window to relieve tension.
2. Remove the roll pin from the latch handle and latch base.
3. Remove the latch handle and spring.
4. Remove the two screws attaching the latch base to sliding body side window.
5. Remove the latch base from sliding window.
6. Clean adhesive from sliding body side window.

INSTALLATION
To install, reverse the removal procedure. Tighten latch base to sliding body side window attaching screws to 2-3 Nm (18-27 Lb-In).
