Climate Control Assembly
REMOVAL 1.
Disconnect the battery ground cable.
2.

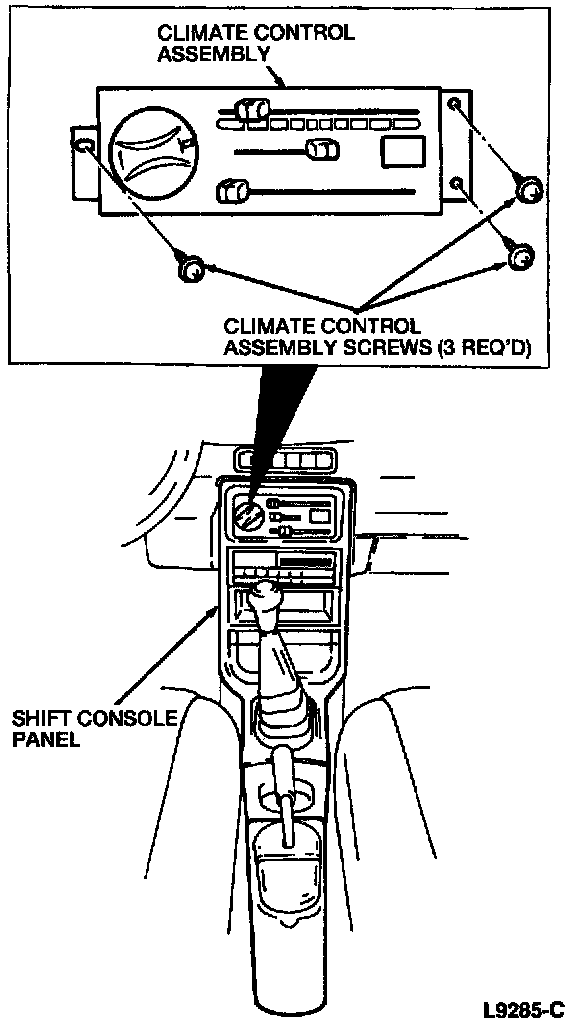

Remove the shift console panel.
3.
Remove the three climate control assembly screws.
4.
Disconnect the climate control assembly electrical connector.
5.
Depress the tabs on the
air door shafts and remove the three climate control cable ends. Pull the climate control assembly from the vehicle.
INSTALLATION To install, reverse the removal procedure.
