Automatic Transaxle

REMOVAL
1. Disconnect the battery ground cable.
2. Disconnect the park/neutral position (PNP) switch electrical connector.

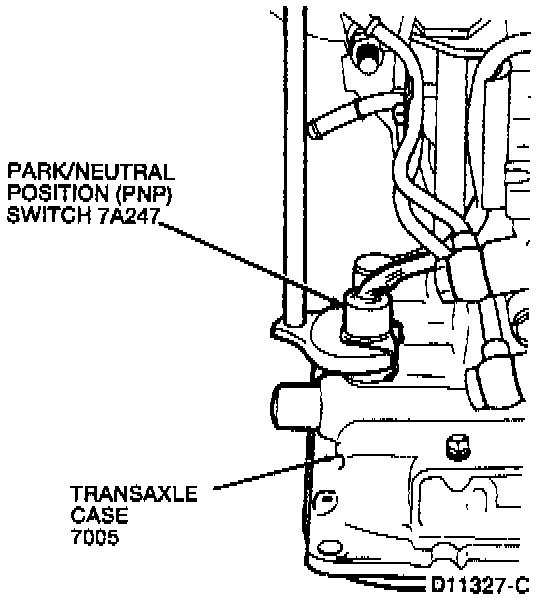

3. Use an extension and a crow's foot wrench to remove the PNP switch from the front LH side of the transaxle case.

INSTALLATION
1. Apply Gasket Eliminator E1FZ-19562-A or equivalent meeting Ford specification WSK-M2G348-A4 to the threads of the PNP switch.
2. Install the PNP switch onto the transaxle case. Tighten the PNP switch to 19-26 Nm (14-19 ft. lbs.).
3. Connect the PNP switch electrical connector.
4. Connect the battery ground cable.
