Manual Transaxle

REMOVAL

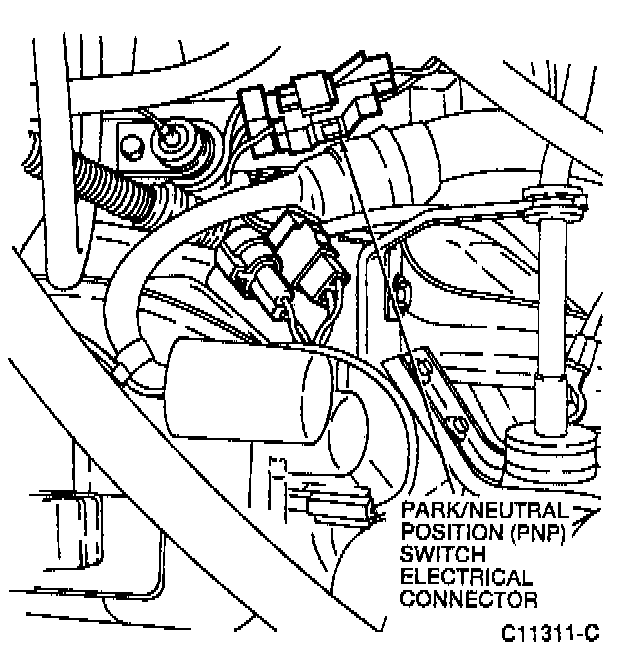

1. Disconnect the Park/Neutral Position (PNP) switch electrical connector..
2. Raise and support the vehicle.

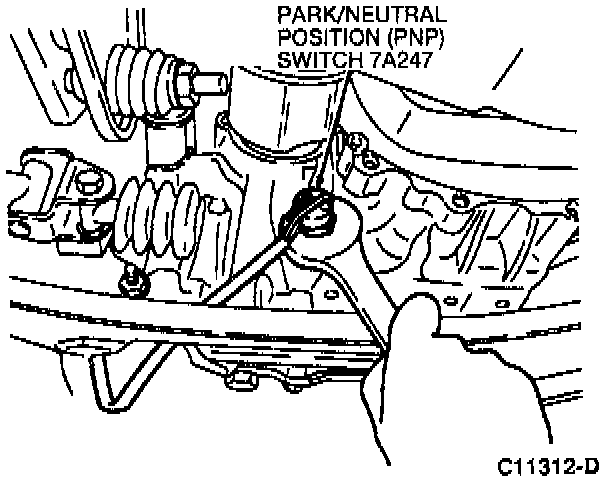

3. Use an open-end wrench to remove the PNP switch from the flywheel housing.

INSTALLATION
1. Apply Gasket Eliminator E1FZ-19562-A or equivalent meeting Ford specification WSK-M2G348-A4 to the threads of the PNP switch.
2. Install the PNP switch on the flywheel housing. Tighten the PNP switch to 20-29 Nm (15-21 ft. lbs.).
3. Lower the vehicle.
4. Connect the PNP switch electrical connector.
