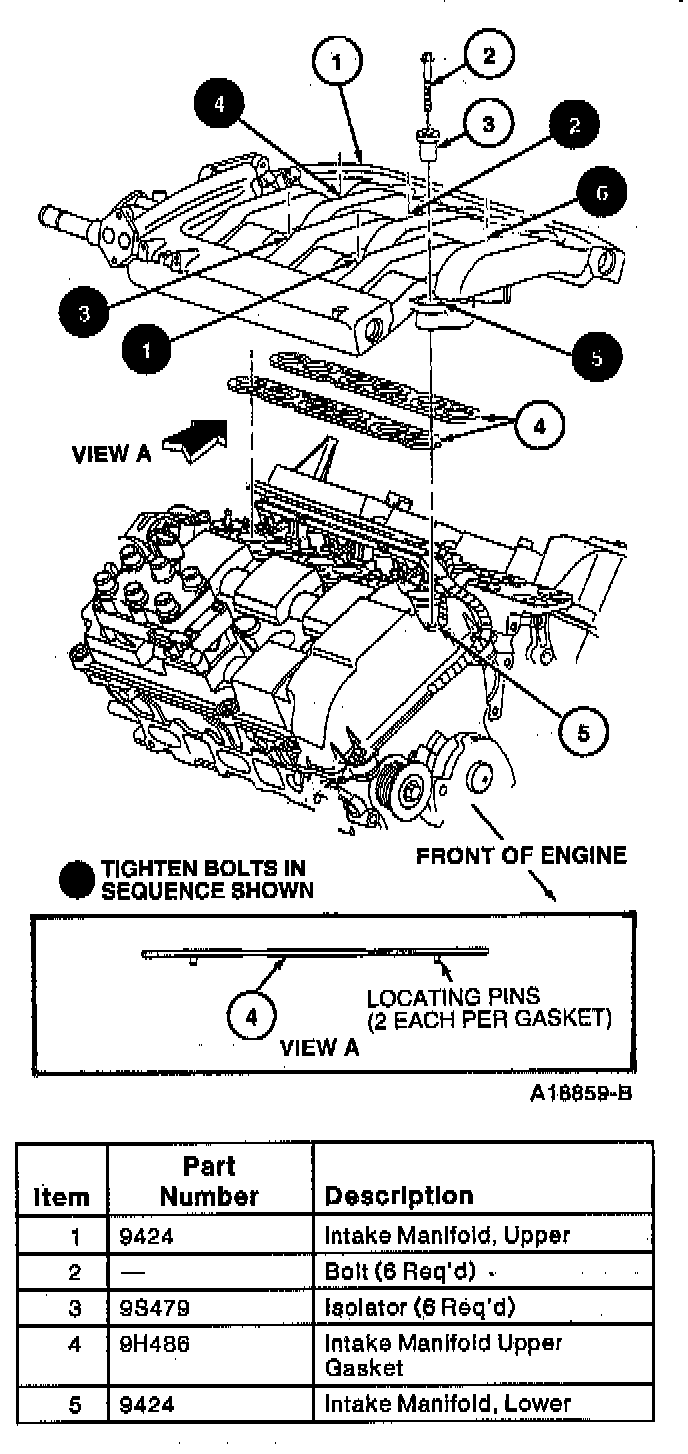

Intake Manifold
UPPER INTAKE Tighten retaining bolts in sequence shown to
8-12 Nm (71-106 inch lbs.).
INTAKE MANIFOLD RUNNER CONTROL (IMRC) Tighten retaining bolts in sequence shown to
8-12 Nm (71-106 inch lbs.).
THROTTLE BODY Install throttle body, new throttle body gasket and the retaining bolts and stud bolt to the
intake manifold. Tighten retaining bolts and stud bolt to
8-12 Nm (71-106 lb-in).
