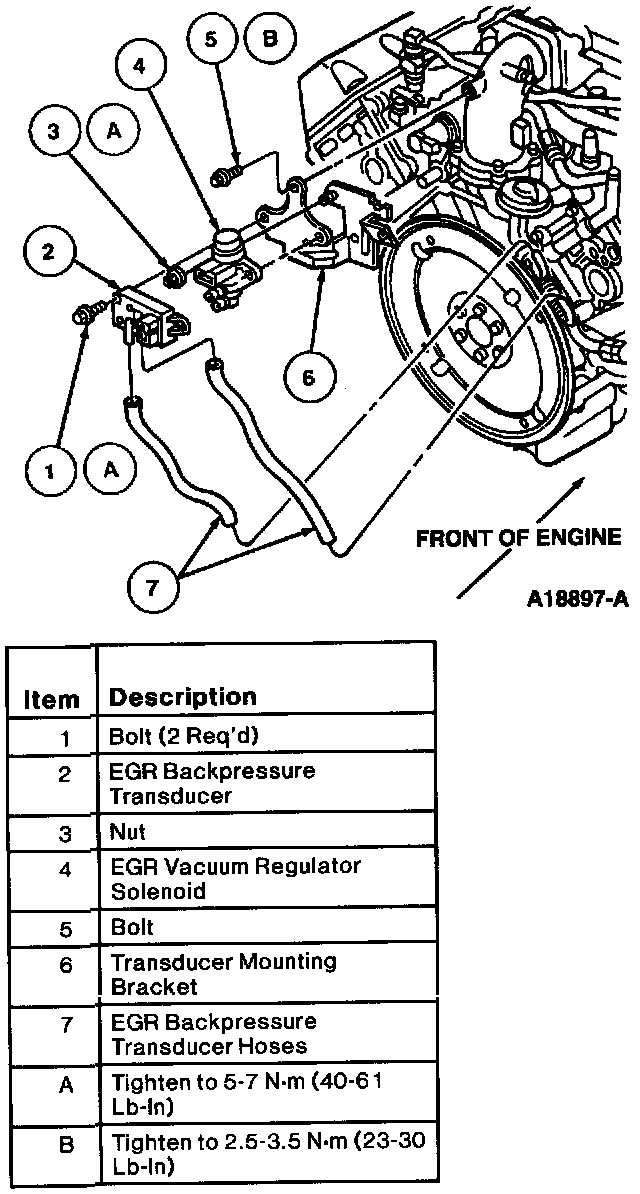

Pressure Feedback Exhaust Sensor: Service and Repair
REMOVAL and INSTALLATION 1.
Disconnect engine control extension wire from
pressure feedback exhaust sensor.
2.
Disconnect hoses from
pressure feedback exhaust sensor.
3.
Remove retaining bolts and
pressure feedback exhaust sensor from mounting bracket.
4.
To install, reverse removal procedure. Tighten two retaining bolts to
5-7 Nm (45-61 lb in).
