Engine Views

Engine View:





A/C COMPRESSOR CLUTCH
COIL PER PLUG #10
COIL PER PLUG #6
COIL PER PLUG #7
COIL PER PLUG #8
COIL PER PLUG #9
CYLINDER HEAD TEMPERATURE SENSOR
CYLINDER IDENTIFICATION SENSOR
DELTA PRESSURE FEEDBACK EGR SENSOR
ENGINE OIL PRESSURE SWITCH
FUEL INJECTOR #10
FUEL INJECTOR #6
FUEL INJECTOR #7
FUEL INJECTOR #8
FUEL INJECTOR #9
INSTRUMENTATION ENGINE COOLANT TEMPERATURE SENSOR
MISFIRE SENSOR
THROTTLE POSITION SENSOR

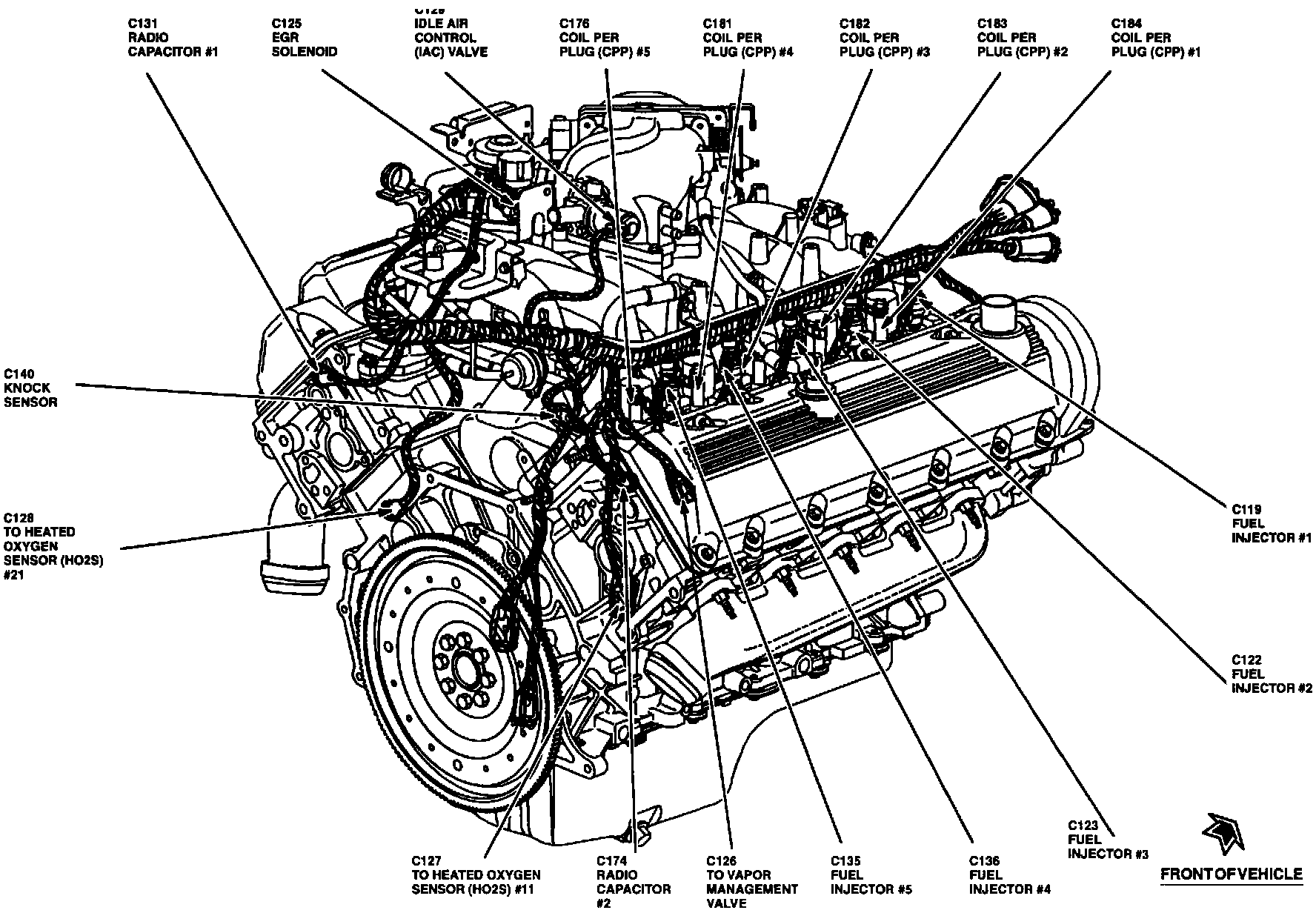

Engine View:





COIL PER PLUG #1
COIL PER PLUG #2
COIL PER PLUG #3
COIL PER PLUG #4
COIL PER PLUG #5
EGR SOLENOID
FUEL INJECTOR #1
FUEL INJECTOR #2
FUEL INJECTOR #3
FUEL INJECTOR #4
FUEL INJECTOR #5
HEATED OXYGEN SENSOR #11
HEATED OXYGEN SENSOR #21
IDLE AIR CONTROL VALVE
KNOCK SENSOR
RADIO CAPACITOR #1
RADIO CAPACITOR #2
VAPOR MANAGEMENT VALVE
