Fuse Block: Description and Operation

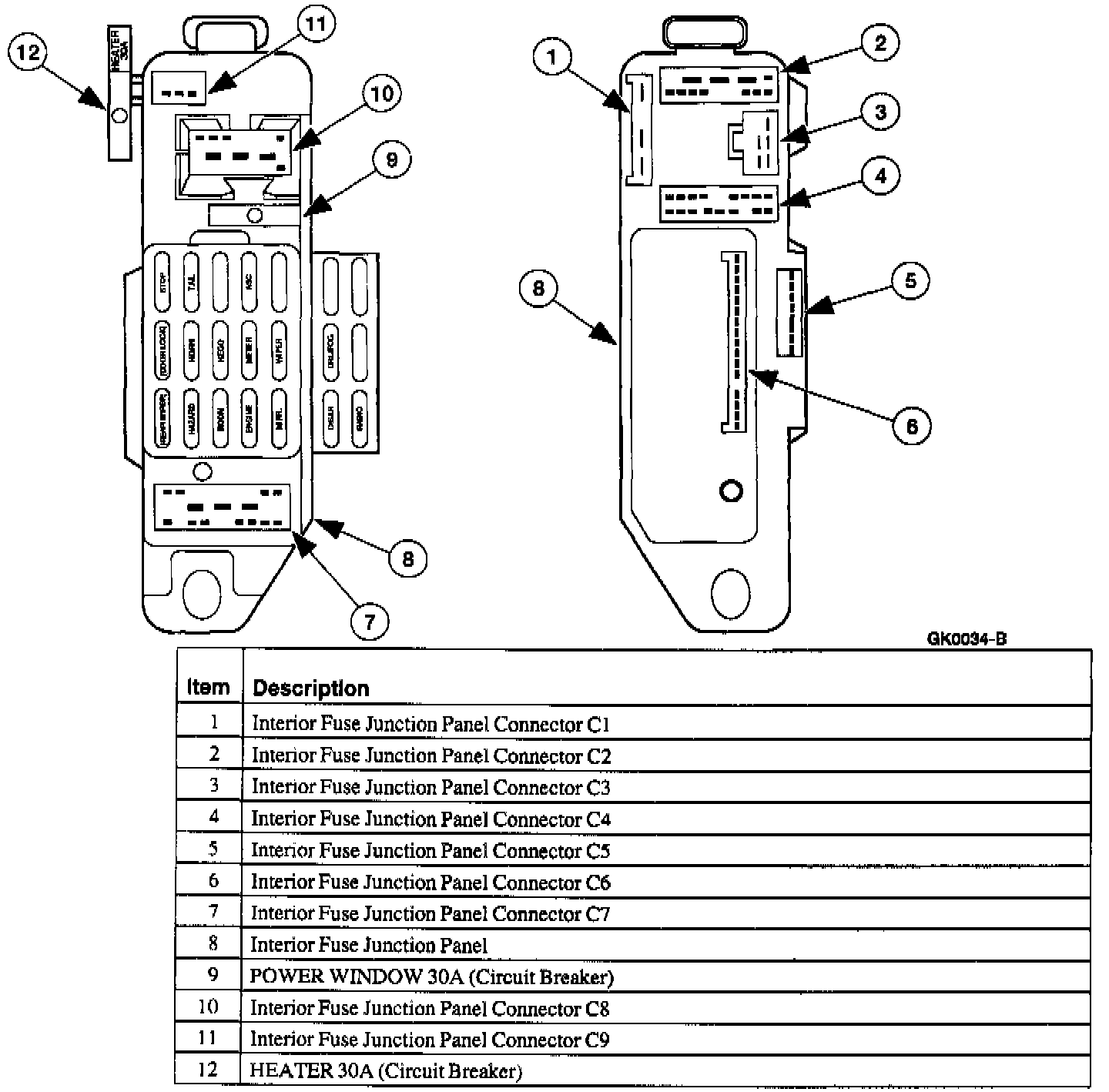

Interior Fuse Junction Panel






The interior fuse junction panel is located below the instrument panel to the left of the steering wheel. Fuse designations and ratings are listed on the fuse panel cover.

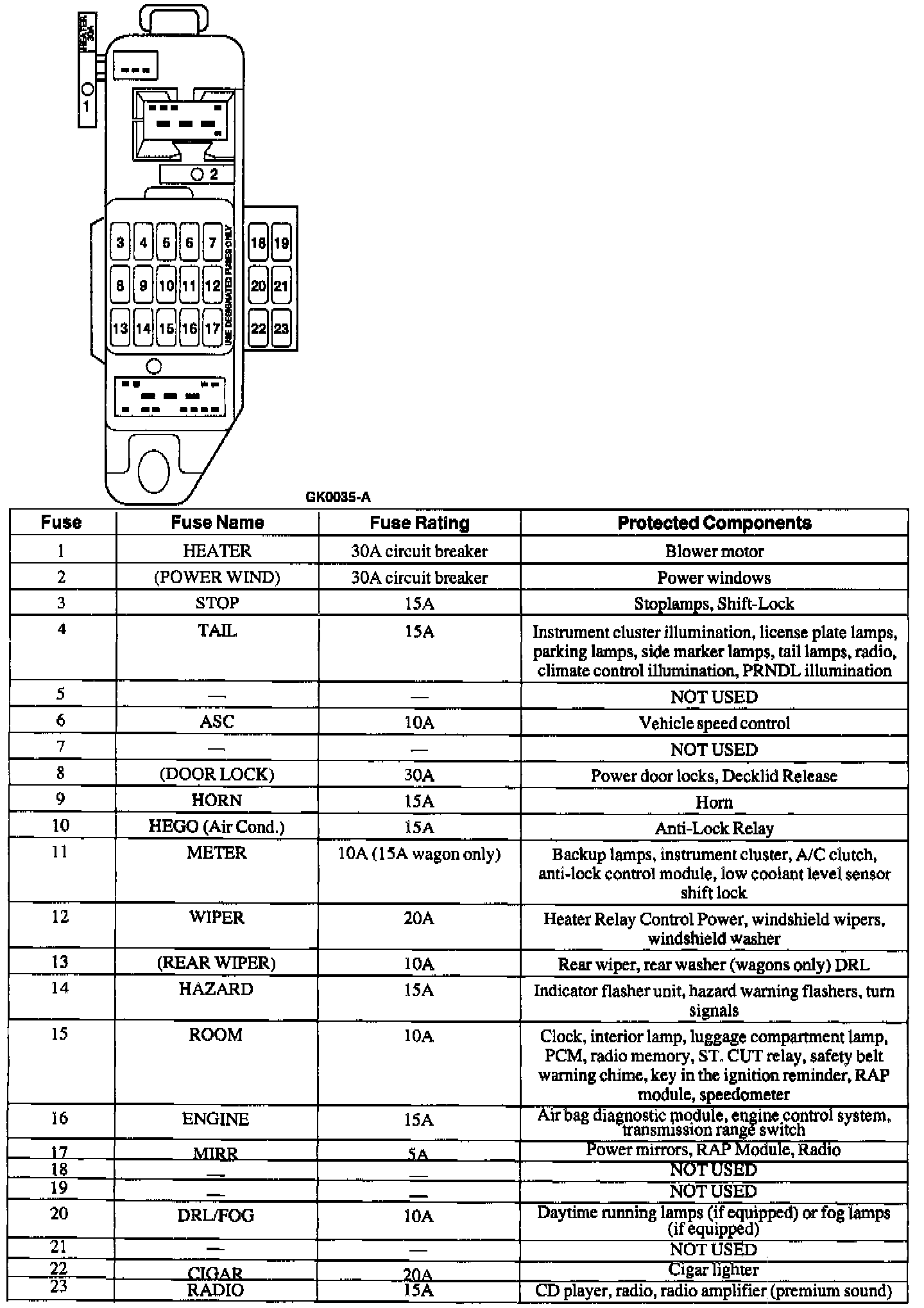

Interior Fuse Junction Panel Reference Chart:






Refer to the Interior Fuse Junction Panel Reference Chart image for specific fuse information.

Main Fuse Junction Panel
The main fuse junction panel is mounted on the LH side of the engine compartment. Fuse designations are listed on the fuse panel cover.

Main Fuse Junction Panel Reference Chart:






Refer to the Main Fuse Junction Panel Reference Chart image for specific fuse information.
