Battery Tray Replacement
REMOVAL 1.
Remove the battery.
2.

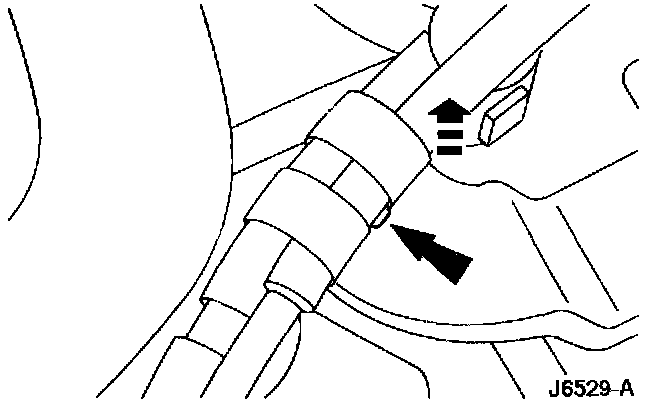

Release the Evaporative Emission
(EVAP) canister retainer from the battery tray.
3.
Remove the engine Air Cleaner
(ACL). 4.

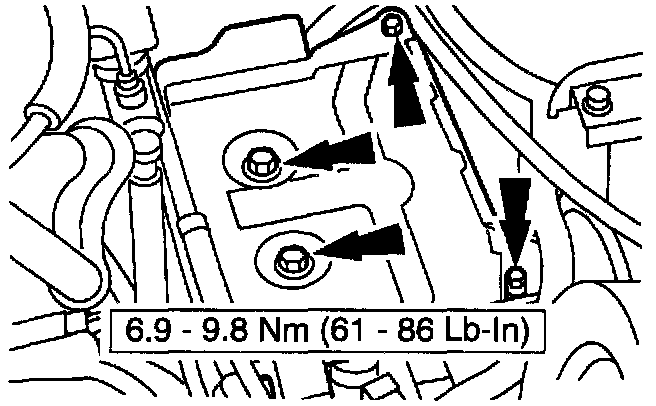

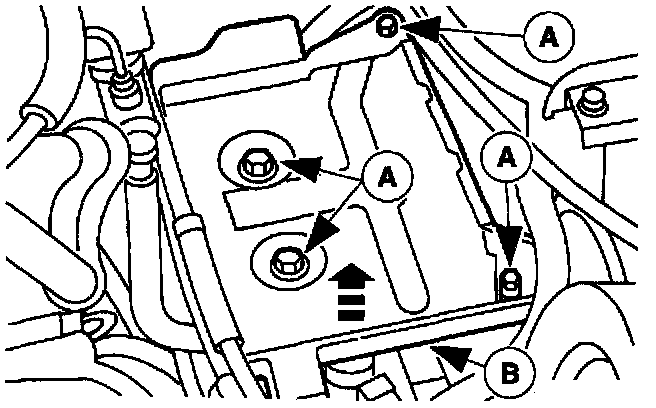

Remove the (A) four battery tray bolts and remove the (B) battery tray.
INSTALLATION 1.
To install, reverse the removal procedure.
