Master Power Window Switch
1.
Key OFF.
2.
Remove and disconnect the master window regulator control switch.
3.

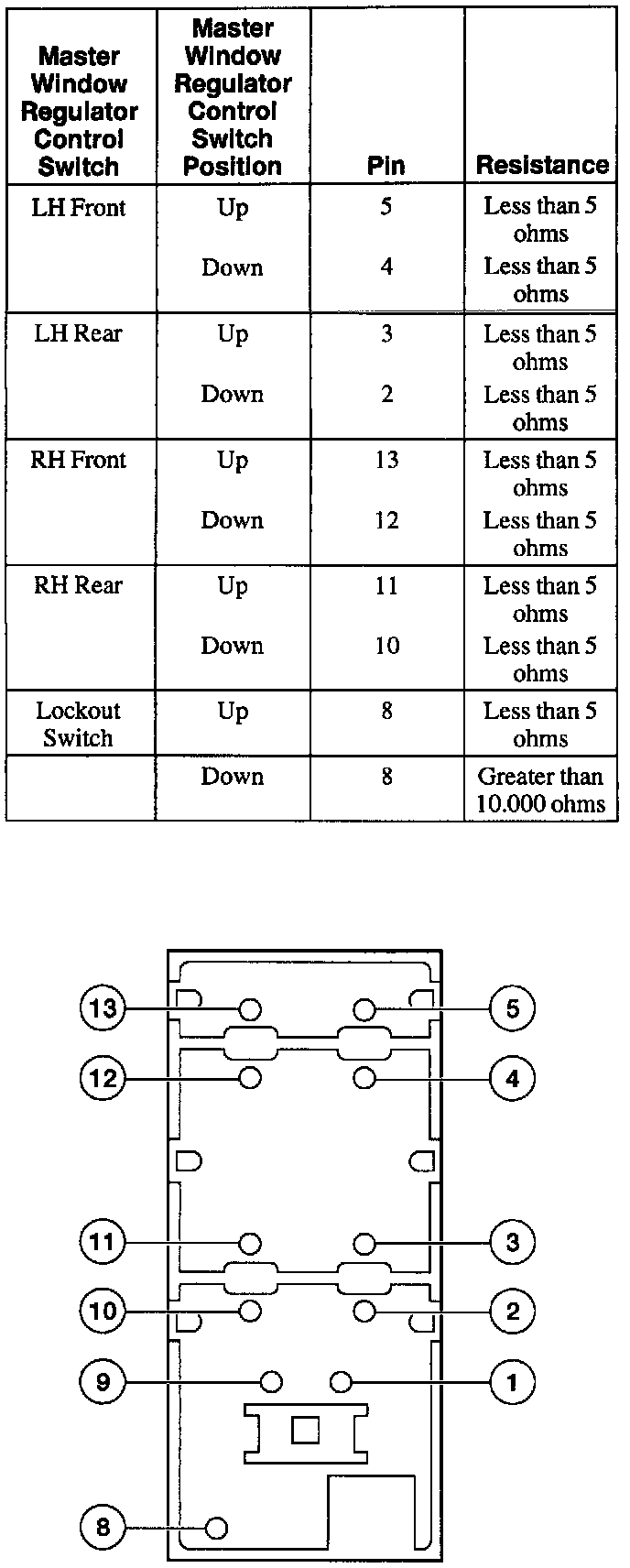

Measure the resistance between pin 9 and the terminal pins of the master window regulator control switch:
4.
If the master window regulator control switch fails any of the above tests, replace it. Otherwise, return to the Pinpoint Tests.
