Shift Solenoid Operation Chart
OPERATION Use the shift solenoid operation information when performing Pinpoint Test A.
SHIFT SOLENOID FAILURE ALWAYS OFF Failed OFF due to PCM/Vehicle wiring concerns;
solenoid electrically or hydraulically stuck on.

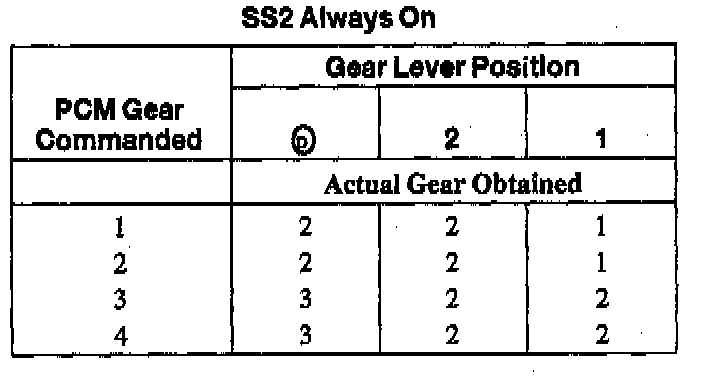

SHIFT SOLENOID FAILURE ALWAYS ON Failed ON due to PCM/Vehicle wiring concerns;
solenoid electrically or hydraulically stuck on.
