Oil Pan, Engine

TORQUE SPECIFICATIONS

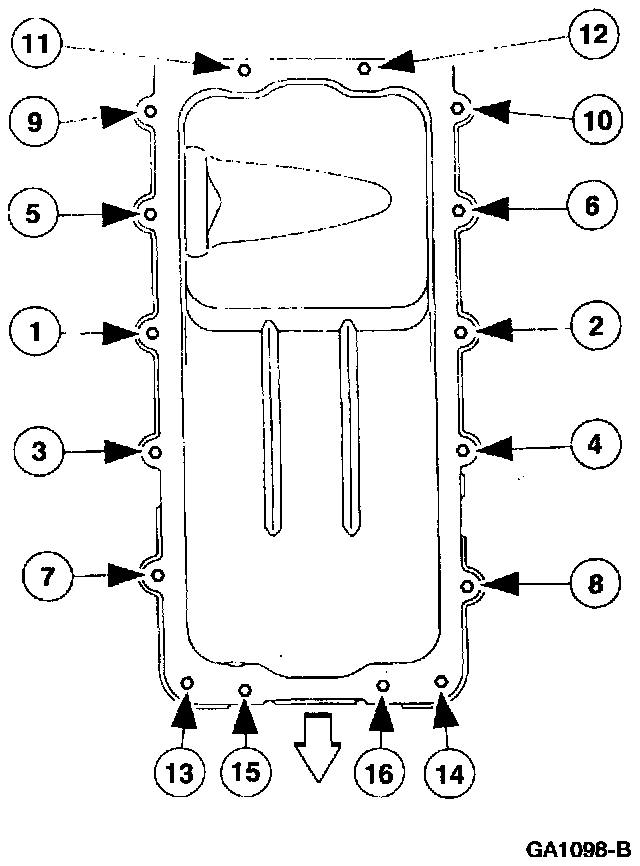

Install the oil pan bolts and torque in the three stages, in the sequence shown.
^ Stage 1: 2 Nm.
^ Stage 2: 20-30 Nm.
^ Stage 3: Rotate 90 degrees.
