Ignition Cable: Service and Repair

REMOVAL AND INSTALLATION

NOTE: Observe Cautions, Warnings, Notes in Service Precautions before beginning procedures.

1. Use Spark Plug Wire Remover with a twisting motion to pull the spark plug wire off the spark plug.

2. Squeeze the locking tabs and disconnect the six ignition wires.

INSTALLATION
1. Connect the spark plug wires to the ignition coil.

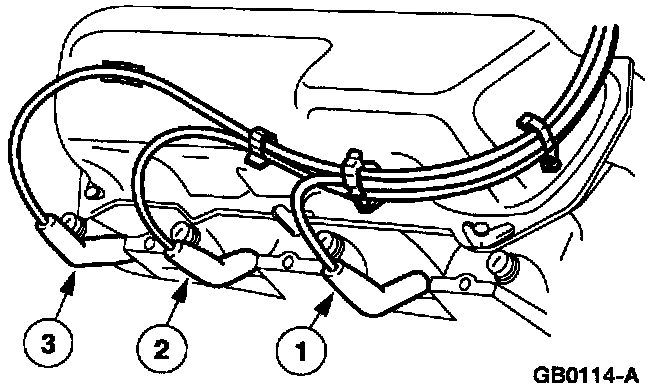

2. Connect the LH spark plug wires.

3. Connect the RH spark plug wires.
