Air Bag Control Module: Service and Repair

REMOVAL

CAUTION: Electronic modules are sensitive to static electrical charges. If exposed to these charges, damage may result; refer for module service precautions.

NOTE: The safing sensor is internal to the air bag diagnostic monitor and is not replaced separately.






1. Remove the battery cables.

NOTE: When the battery is disconnected and reconnected, some abnormal drive symptoms may occur while the vehicle relearns its adaptive strategy. The vehicle may need to be driven 16 km (10 miles) or more to relearn the strategy.

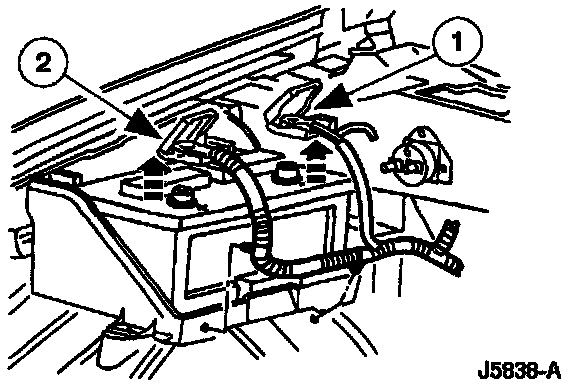

1 Remove the battery ground cable.
2 Remove the battery to starter relay cable and wait one minute for the backup power supply to be depleted.

2. Remove the RH cowl side trim panel.

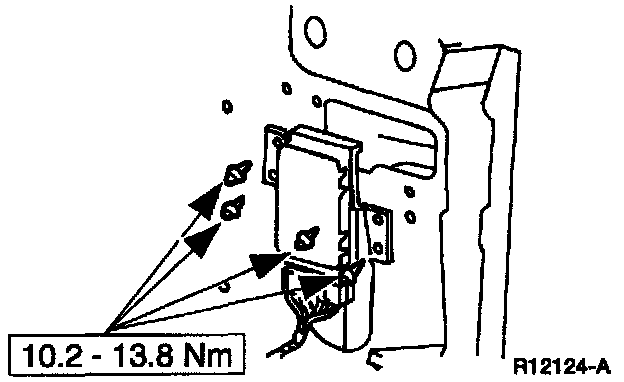

3. Remove the air bag diagnostic monitor.
1 Disconnect the two electrical connectors.
2 Remove the four screws.
3 Remove the air bag diagnostic monitor.

INSTALLATION






To install, reverse the removal procedure.
