Crankshaft Main Bearing

TORQUE SPECIFICATIONS

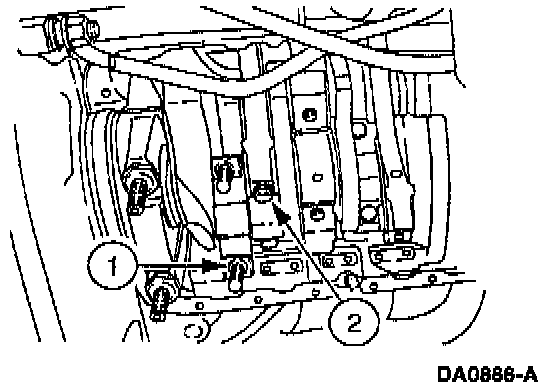

Install the main bearing cap, as required.
- Tighten the main bearing cap retaining bolts in two stages:
a. 50 Nm (37 ft. lbs.)
b. 115-125 degrees

Main Bearing Brace Nuts: 40-55 Nm (30-40 ft. lbs.)
