Engine Compartment Views

A/C CLUTCH CYCLING PRESSURE SWITCH
A/C PRESSURE CUTOFF SWITCH
BRAKE FLUID LEVEL INDICATOR SWITCH
BRAKE PRESSURE SWITCH
CAMSHAFT POSITION SENSOR
CYLINDER HEAD TEMPERATURE SENSOR
DAYTIME RUNNING LAMPS MODULE
ENGINE FUSE MODULE
ENGINE OIL PRESSURE SWITCH
FUEL INJECTORS
GENERATOR/VOLTAGE REGULATOR
HEATED OXYGEN SENSOR #21
HIGH PITCH HORN
IDLE AIR CONTROL
INTAKE AIR TEMPERATURE SENSOR
INTAKE MANIFOLD TUNING VALVE
LEFT FRONT PARK/TURN LAMP
LEFT FRONT WHEEL 4WABS SENSOR
LEFT HEADLAMP
LOW PITCH HORN
POWER DISTRIBUTION BOX
POWER DISTRIBUTION RELAY BOX
POWERTRAIN CONTROL MODULE
RADIO NOISE CAPACITOR #2
REAR ANTI-LOCK BRAKE SYSTEM PROPORTIONING VALVE SWITCH ASSEMBLY
RIGHT FOG LAMP
STARTER MOTOR RELAY
THROTTLE POSITION SENSOR
WINDSHIELD WIPER MOTOR

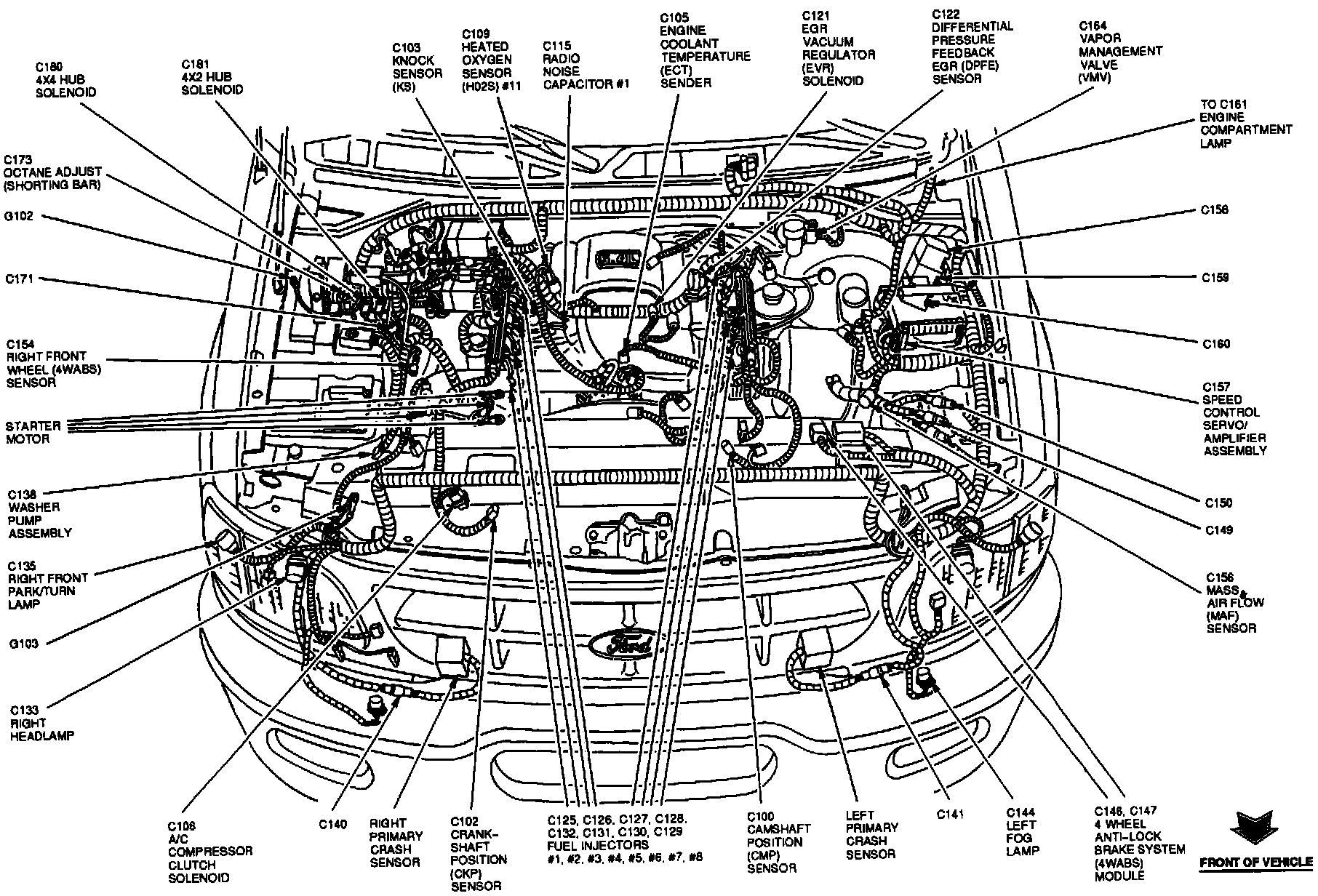

Engine View:

4 WHEEL ANTI-LOCK BRAKE SYSTEM MODULE
A/C COMPRESSOR CLUTCH SOLENOID
CAMSHAFT POSITION SENSOR
CRANKSHAFT POSITION SENSOR
DIFFERENTIAL PRESSURE FEEDBACK EGR SENSOR
EGR VACUUM REGULATOR SOLENOID
ENGINE COMPARTMENT LAMP
ENGINE COOLANT TEMPERATURE SENDER
FUEL INJECTORS
HEATED OXYGEN SENSOR #11
KNOCK SENSOR
LEFT FOG LAMP
LEFT PRIMARY CRASH SENSOR
MASS AIR FLOW SENSOR
OCTANE ADJUST (SHORTING BAR)
RADIO NOISE CAPACITOR #1
RIGHT FRONT PARK/TURN LAMP
RIGHT FRONT WHEEL 4WABS SENSOR
RIGHT HEADLAMP
RIGHT PRIMARY CRASH SENSOR
SPEED CONTROL SERVO/AMPLIFIER ASSEMBLY
STARTER MOTOR
VAPOR MANAGEMENT VALVE
WASHER PUMP ASSEMBLY
