Function Control Vacuum Circuit

Function Control Vacuum Circuit:

Function Selector Valve Detent Positions:

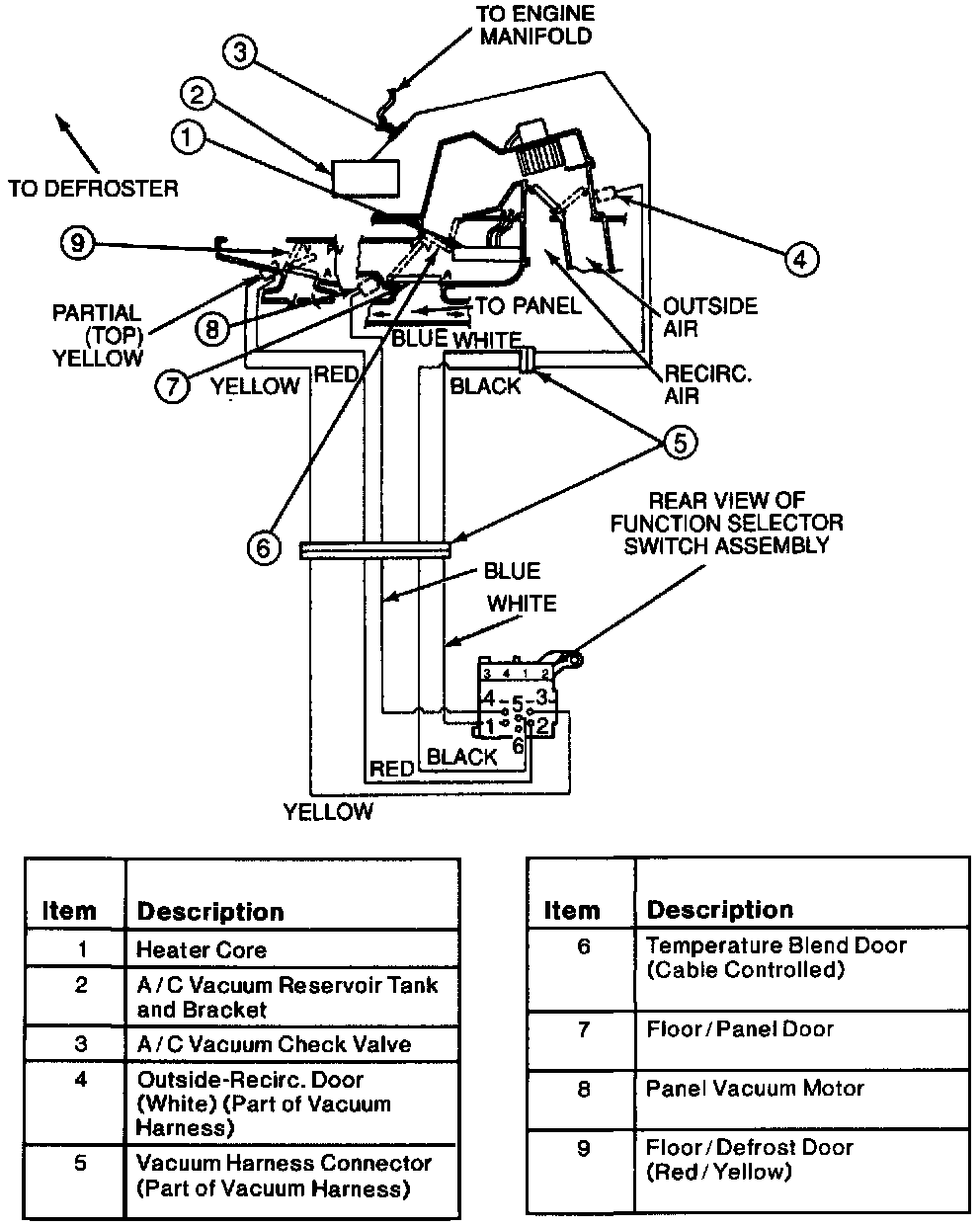

The Function Control Vacuum Circuit diagram illustrates the vacuum hose connections between the vacuum source, vacuum control motors, and A/C control. The Function Selector Valve Detent Positions chart identifies the color coding of the vacuum hoses and charts the function control knob settings and vacuum application by heater control and function.
